60 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 4 Frame 5 Components

9. Loosen the three captive thumbscrews that secure the main control board

to the pod chassis and remove the board.

Install the Main Control Circuit Board

Install the main control circuit board in the reverse order of removal.

–

T15 or F - 5 mm (0.19 in.)

0.45 N

•m (4 lb•in)

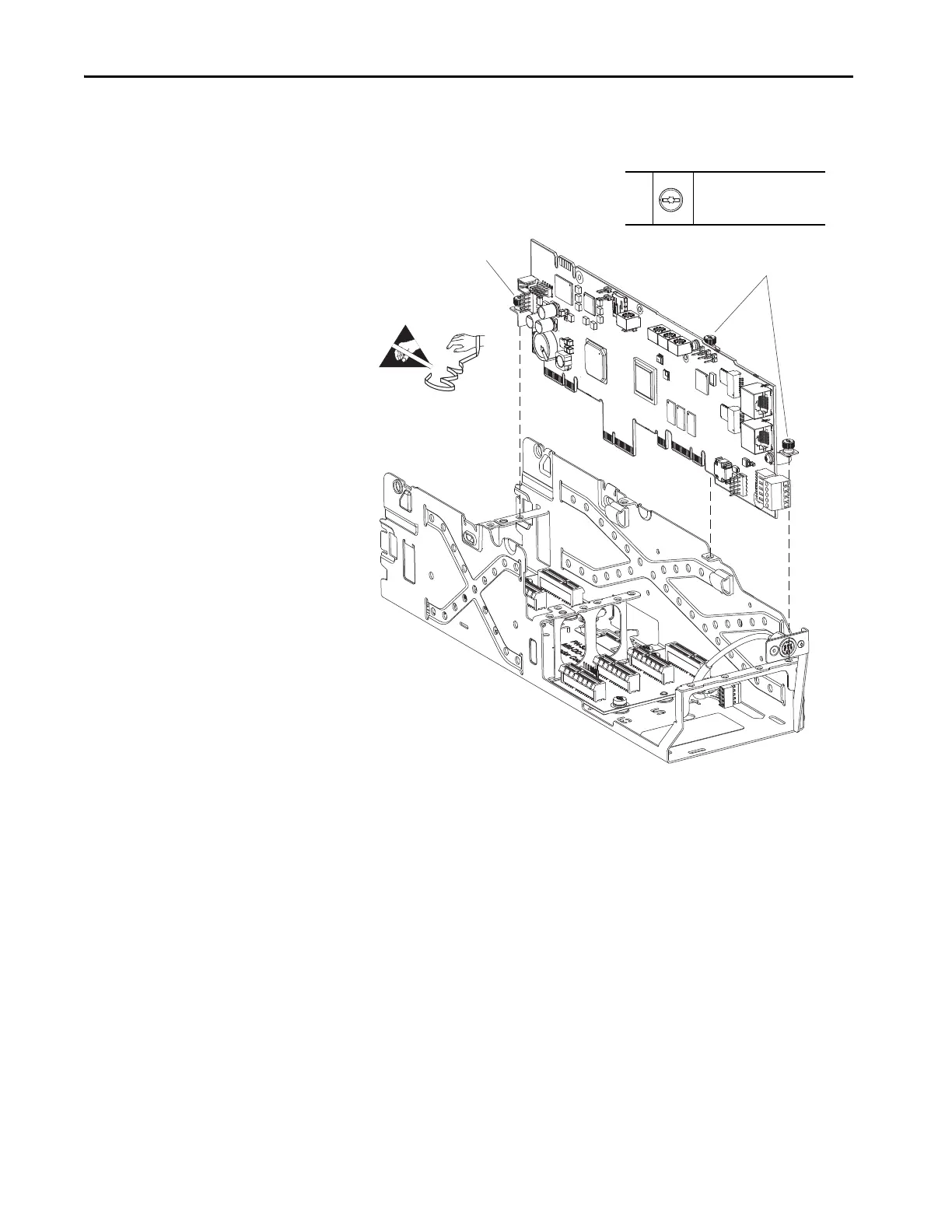

Control Pod Shown Removed

from Drive for Clarity Only.
