276 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

5. Unscrew the fuse holder cover and fuse and remove the fuse.

Install the Power/LCL Filter Module Heatsink Fan Fuse

Install the power /LCL filter module heatsink fan fuse in the reverse order of

removal.

Power/LCL Filter Module

Heatsink Fan Assembly

Replacement

Replace the power or LCL filter module heatsink fan assembly with kit catalog

number SK-RM-INVFAN1-F8.

Remove the Power or LCL Filter Module Heatsink Fan Assembly

Follow these steps to remove and replace the power or LCL filter module

heatsink fan assembly.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the corresponding power bay enclosure door.

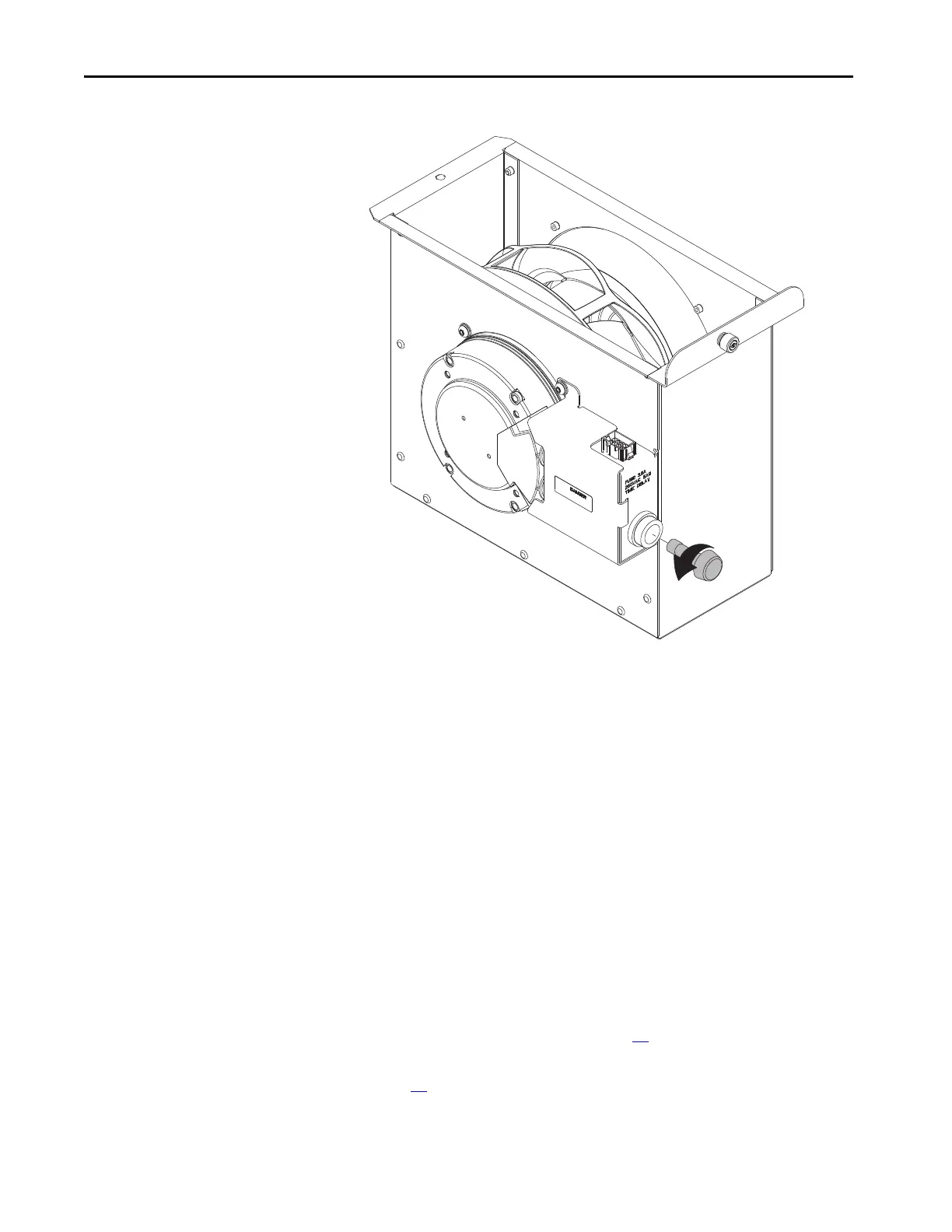

Fan Shown Removed from Module for Clarity Only
