Rockwell Automation Publication 750-TG100B-EN-P - June 2019 61
Frame 5 Components Chapter 4
Stirring Fan Assembly
Replacement
Replace a stirring fan assembly with kit catalog number SK-RM-MFAN1-F5.
Remove the Stirring Fan Assembly
Follow these steps to remove the stirring fan assembly.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Remove the cover from the chassis. See Remove the Cover on page 56
.

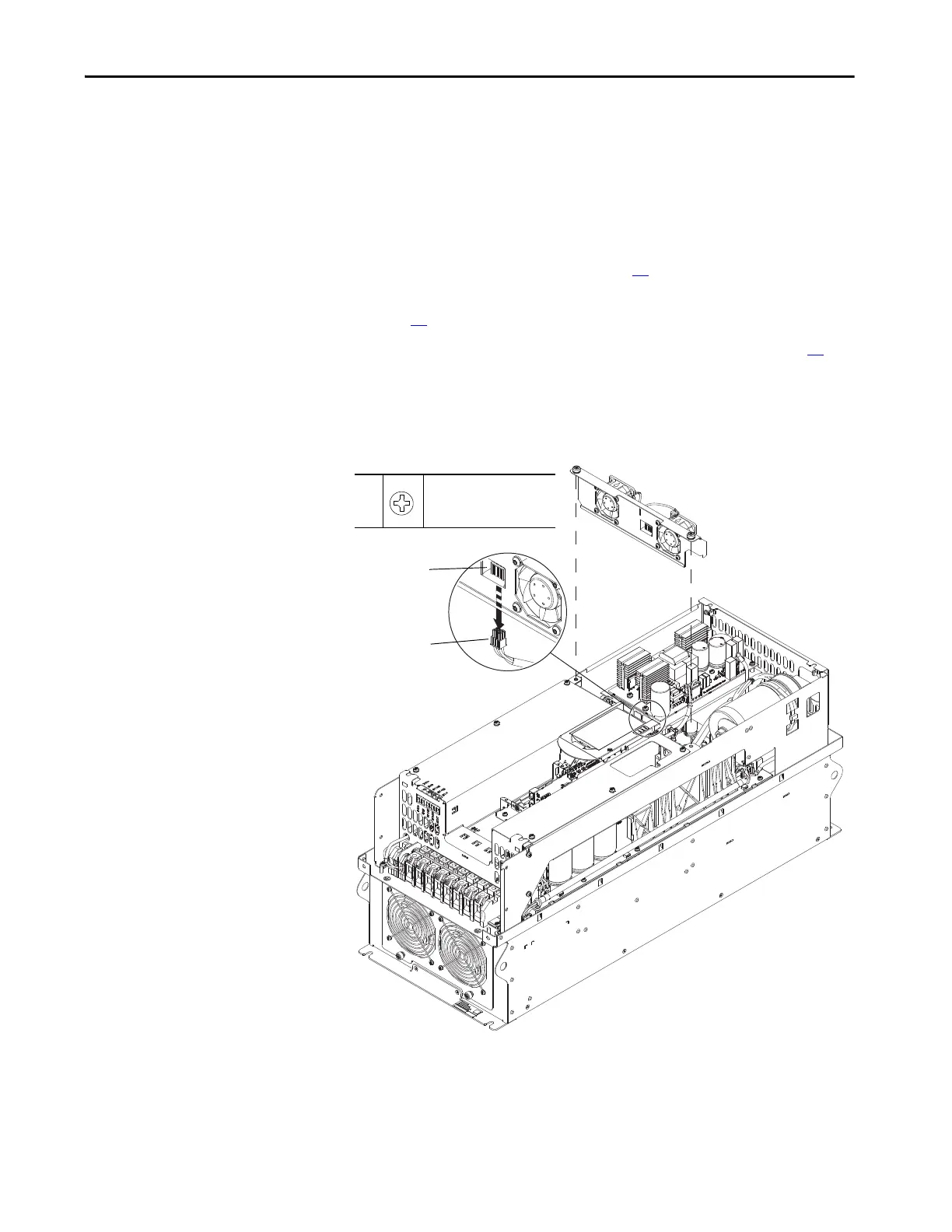

4. Disconnect the wire harness connector P12 from connector P1 on the fan
assembly bracket.
5. Loosen the two captive screws that secure the fan assembly to the chassis
and remove the fan assembly.
5
M4
P2
2.6 N
•m (23 lb•in)
P1
P12
To Next Page
