282 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

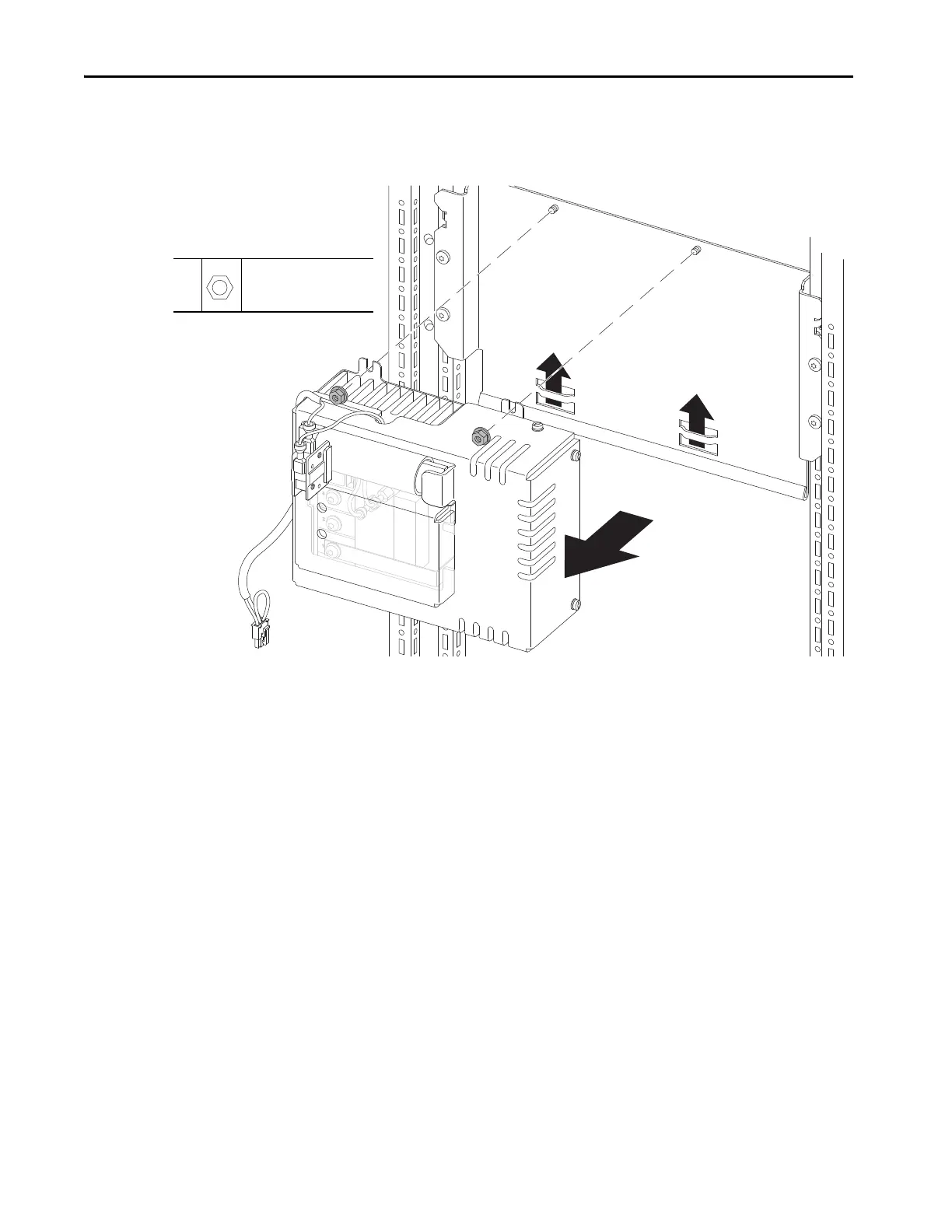

11. Remove the two M5 hexagonal nuts and washers that secure the DC bus

conditioner to the sheet metal mounting panel and remove the DC bus

conditioner.

Install the DC Bus Conditioner

Install the DC bus conditioner in the reverse order of removal.

8 mm

4.8 N•m (42 lb•in)
