Rockwell Automation Publication 750-TG100B-EN-P - June 2019 83
Frame 6 Components Chapter 5
Install the Heatsink Fan Assembly
Install the heatsink fan assembly in the reverse order of removal.
DR and PE-A (EMC & MOV)
Jumper Replacement
Replace the DR and PE-A (EMC & MOV) jumper with kit catalog number
SK-RM-JMPR1-F6.
Remove the DR and PE-A (EMC & MOV) Jumper
Follow these steps to remove the DR and PE-A (EMC & MOV) jumper.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Remove the cover from the chassis. See Remove the Cover on page 76
.

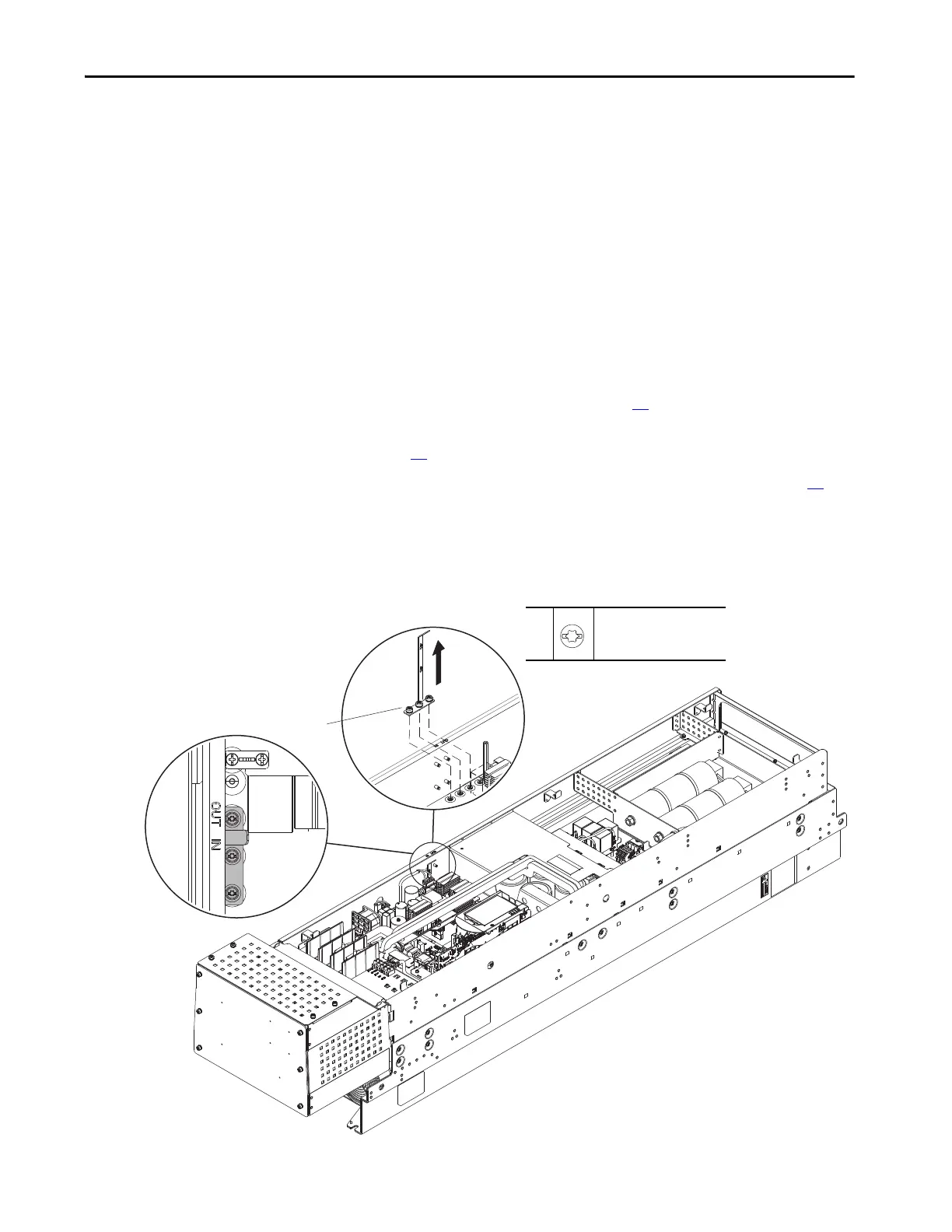

4. Loosen the three captive, slotted-torx screws that secure the jumper to the
power interface circuit board.
5. Lift the jumper away from the power interface board until the keyholes in
the jumper align with the pins on the sidewall and remove the jumper.
4
4
M4
T20 or F - 6.4 mm (0.25 in.)
2.3 N
•m (20 lb•in)
5
Jumper Shown in
Default (IN) Position.
To Next Page
