Getting Ready
1.
Before you begin making connections, confirm the following.
Is the volume level of the RD-700GX or connected amp turned all the way down?
Is the power to the RD-700GX or connected amp turned off?
2.
Connect supplied power cord to the AC Inlet of the RD-700GX, and plug the other end
into an AC outlet.
3.
Connect the RD-700GX and the external devices.
Use audio cables to connect audio equipment, such as an amp or speakers.
Use MIDI cables to connect MIDI devices. Use USB cables to connect computer.
If you are using headphones, plug them into the PHONES jack.
Connect pedal switches or expression pedals as necessary.
Use Stereo headphones.
Use only the specified expression pedal (EV-5/7; sold separately). By connecting any other
expression pedal, you risk causing malfunction and/or damage to the unit.
You can connect a floppy disk drive (sold separately) or a commercially available CD drive to
the USB MEMORY connector. You can use a floppy disk drive or CD drive to play back songs
from a floppy disk or CD.
Connect the pedal included with the RD-700GX to one of the PEDAL jacks.
When connected to the DAMPER jack, the pedal can be used as a damper pedal.
Connecting the pedal to the FC1 or FC2 jack allows you to assign a variety of functions to the
pedal (p. 93, p. 115).
Set the switch on the included pedal to “Continuous” when the pedal is connected.
Connecting Pedals
NOTE
NOTE
NOTE
NOTE
About the Output Jacks
922

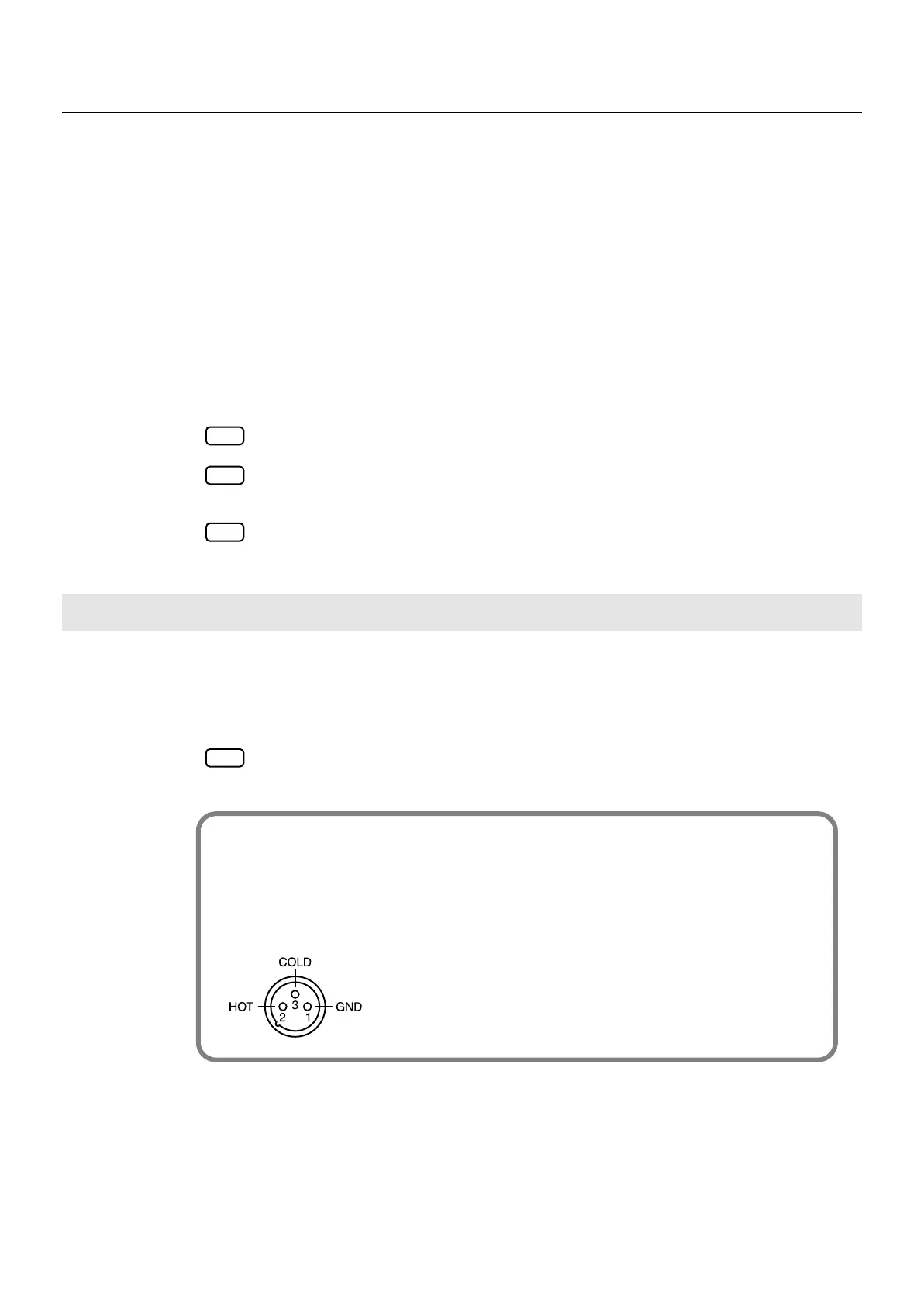

This instrument is equipped with balanced (XLR) type jacks. Wiring diagrams for these
jacks are shown below. Make connections after first checking the wiring diagrams of
other equipment you intend to connect.
fig.XLRJack
