98

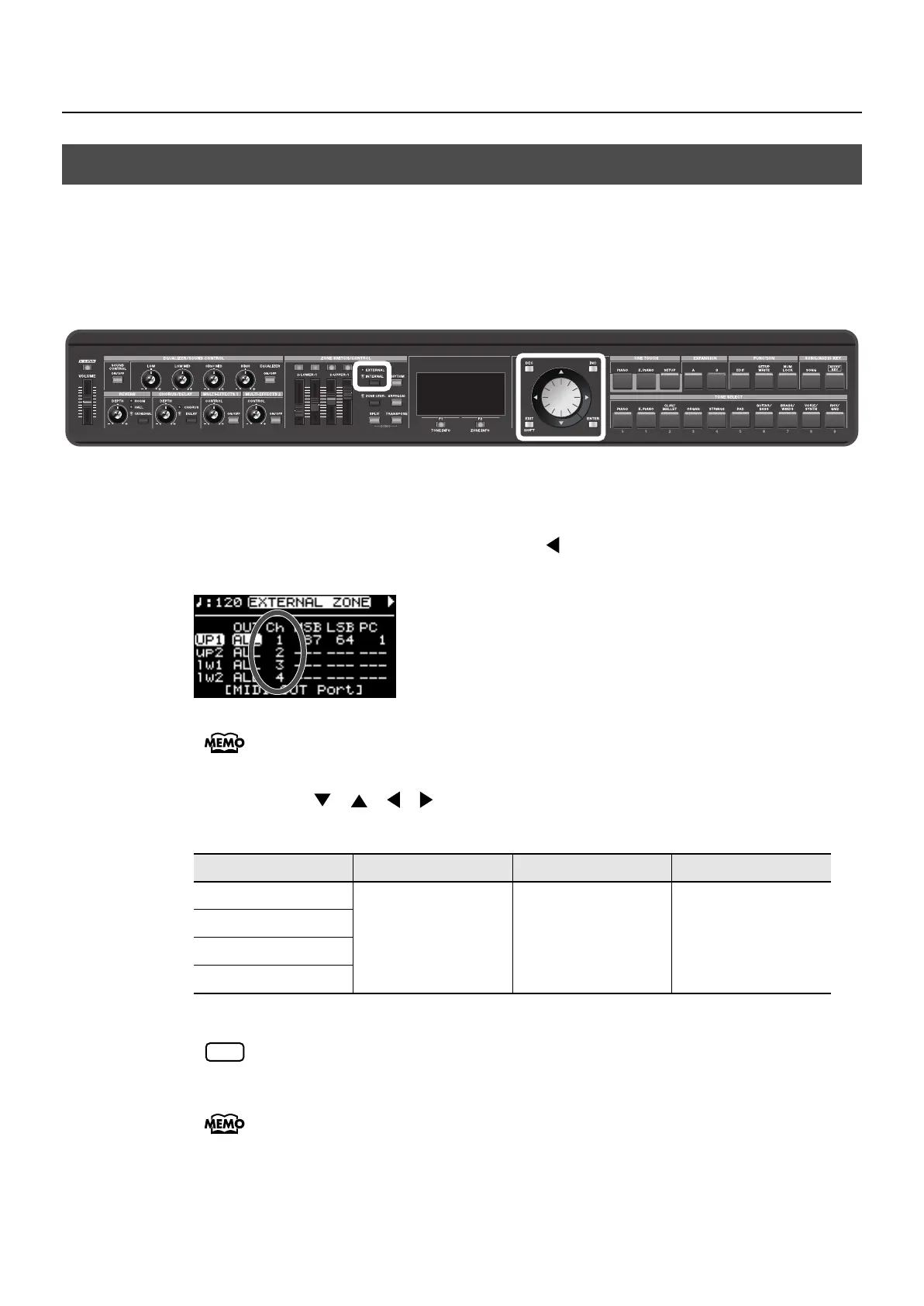

Using the RD-700GX As a Master Keyboard
When you have finished connecting the external MIDI device, match the keyboard’s
Transmit channel and the Receive channel for each of the external MIDI sound
generator’s Parts. Sounds is produced when the MIDI channels for the sending device
(the RD-700GX) and the receiving device (the external MIDI sound generator) are set to
the same MIDI channel.
1.
Press the [EXTERNAL/INTERNAL] button so the “EXTERNAL” indicator is lit.
The EXTERNAL screen appears.
If “Ch” doesn’t appear on screen, press the Cursor [ ] button several times to display the
following screen.
fig.Q3-03g
For instructions on setting each of the external MIDI sound generator’s Part’s Receive
channel, refer to the owner’s manual for each device.
2.
Use the Cursor [ ] [ ] [ ] [ ] buttons to move the cursor, and use the [DEC] [INC]
buttons or the VALUE dial to set the Transmit channel (Ch) for each zone.
When Rec Mode is set to ON in the Utility Rec Setting in Edit mode, the EXTERNAL
screen as shown above is not displayed. Set Rec Mode to OFF when setting the MIDI
Transmit channel (p. 138).
Part names for Zones in which ZONE SWITCH (p. 46) is set to OFF appear in the
display in lowercase letters, such as “up1,” “up2,” “lw1,” and “lw2.”
MIDI messages
for
Zones
with the ZONE SWITCH set to OFF are not transmitted.
Setting the MIDI Transmit Channel (MIDI OUT Channel)
Part
Parameter Settings Description
UP1 (UPPER 1)
Ch
(MIDI OUT Channel)
1–16
RD-700GX
performance data is
sent over a selected
channel.
UP2 (UPPER 2)
LW1 (LOWER 1)
LW2 (LOWER 2)
NOTE
RD-700GX_e.book 98 ページ ２００８年２月１３日 水曜日 午後５時４９分
