4-10 FI SYSTEM
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel filters, fuel feed hose, fuel delivery pipe
(including fuel injectors) and fuel pressure regulator. There is no fuel return hose. The fuel in the fuel tank is
pumped up by the fuel pump and pressurized fuel to flow into the injector installed in the fuel delivery pipe.
Fuel pressure is regulated by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the
fuel pressure in the fuel delivery pipe) is always kept absolute fuel pressure of 300 kPa (3.0 kgf/cm
2
, 43 psi),
the fuel is injected into the throttle body in conic dispersion when the injector opens according to the injection
signal from the ECM.
The fuel relieved by the fuel pressure regulator flows out to the fuel tank.

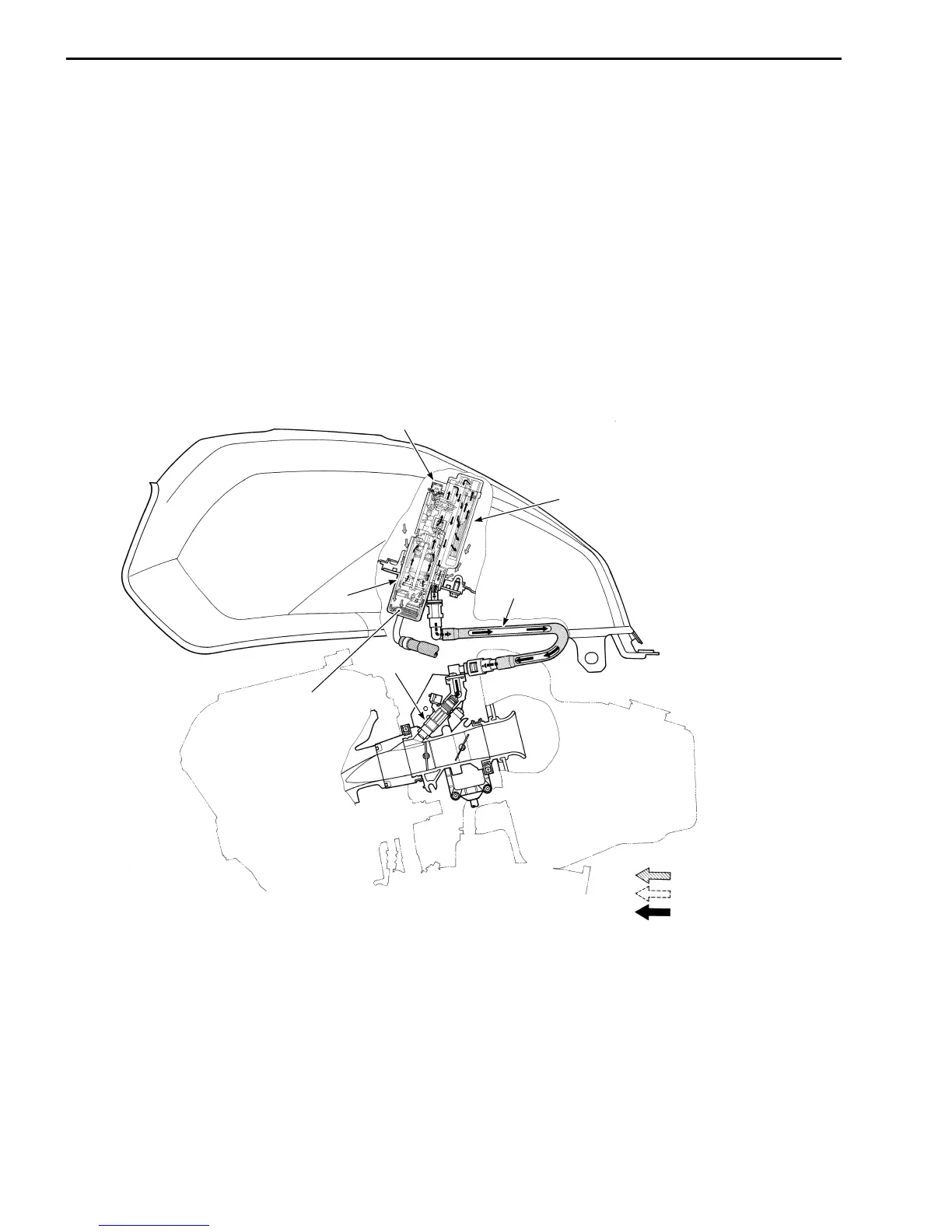

Before pressurized fuel
Pressurized fuel
Relieved fuel
Fuel pumpFuel pump
Fuel mesh filter
(For low pressure)
Fuel feed hose
Fuel injector
Fuel filter
(For high pressure)
Fuel tank
Fuel pressure
regulator
