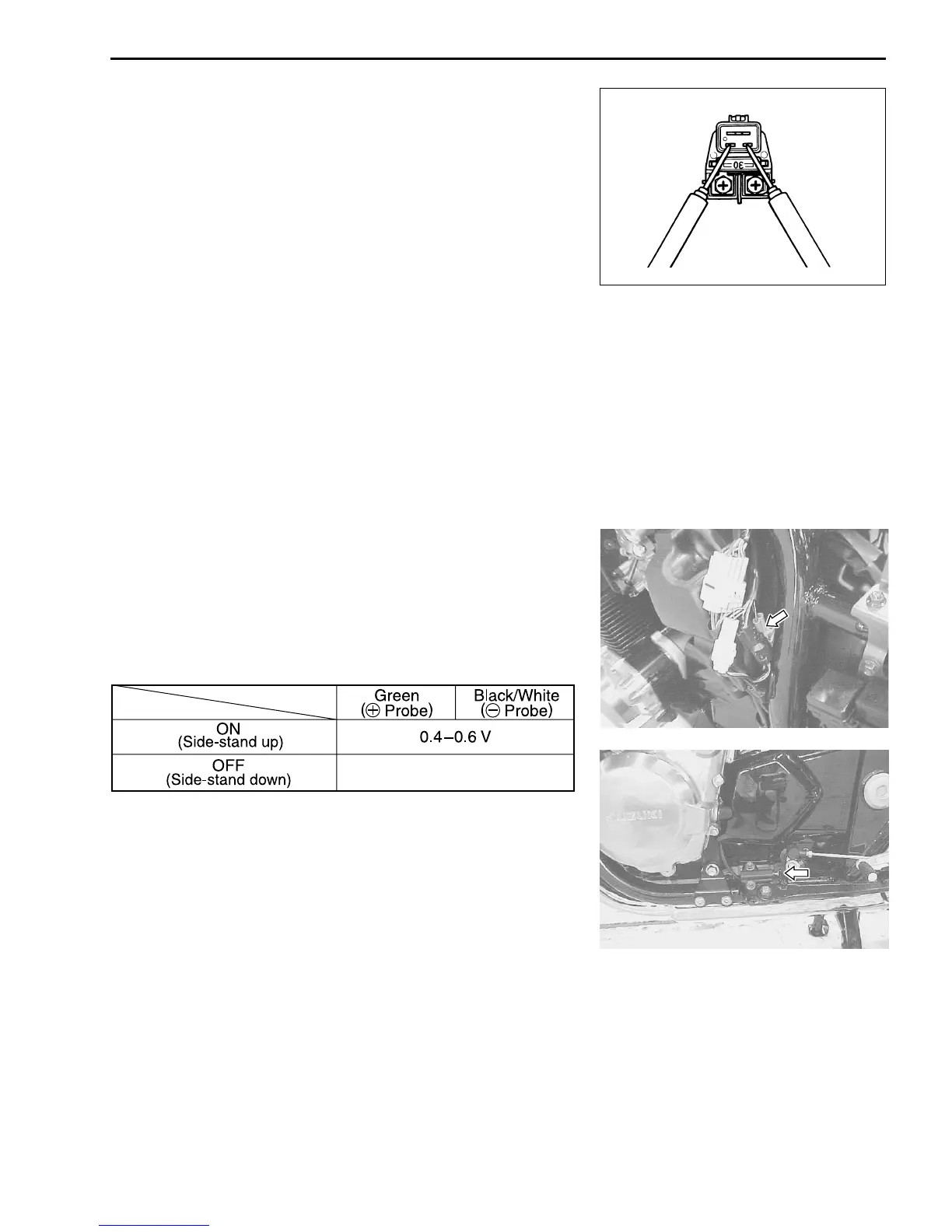

ELECTRICAL SYSTEM 7-15
Measure the relay coil resistance between the terminals using
the multi circuit tester. If the resistance is not within the specified
value, replace the starter relay with a new one.
\ 09900-25008: Multi circuit tester set
V Tester knob indication: Resistance (
ΩΩ
ΩΩ
Ω)
Starter relay resistance: 3 – 5
ΩΩ
ΩΩ
Ω
SIDE STAND/IGNITION INTERLOCK SYSTEM
PARTS INSPECTION
Check the interlock system for proper operation. If the interlock
system does not operate properly, check each component for
damage or abnormalities. If any abnormality is found, replace the
component with a new one.
SIDE-STAND SWITCH
• Remove the left frame cover. ( 6-3)
• Disconnect the side-stand switch coupler and measure the
voltage between Green and Black/White lead wires.
\ 09900-25008: Multi circuit tester set
Tester knob indication: Diode test (
>>
>>
>)
More than 1.4 V
(Tester's battery voltage)
NOTE:
If the tester reads under 1.4V when the tester probes are not
connected, replace its battery.
