CHASSIS 6-5

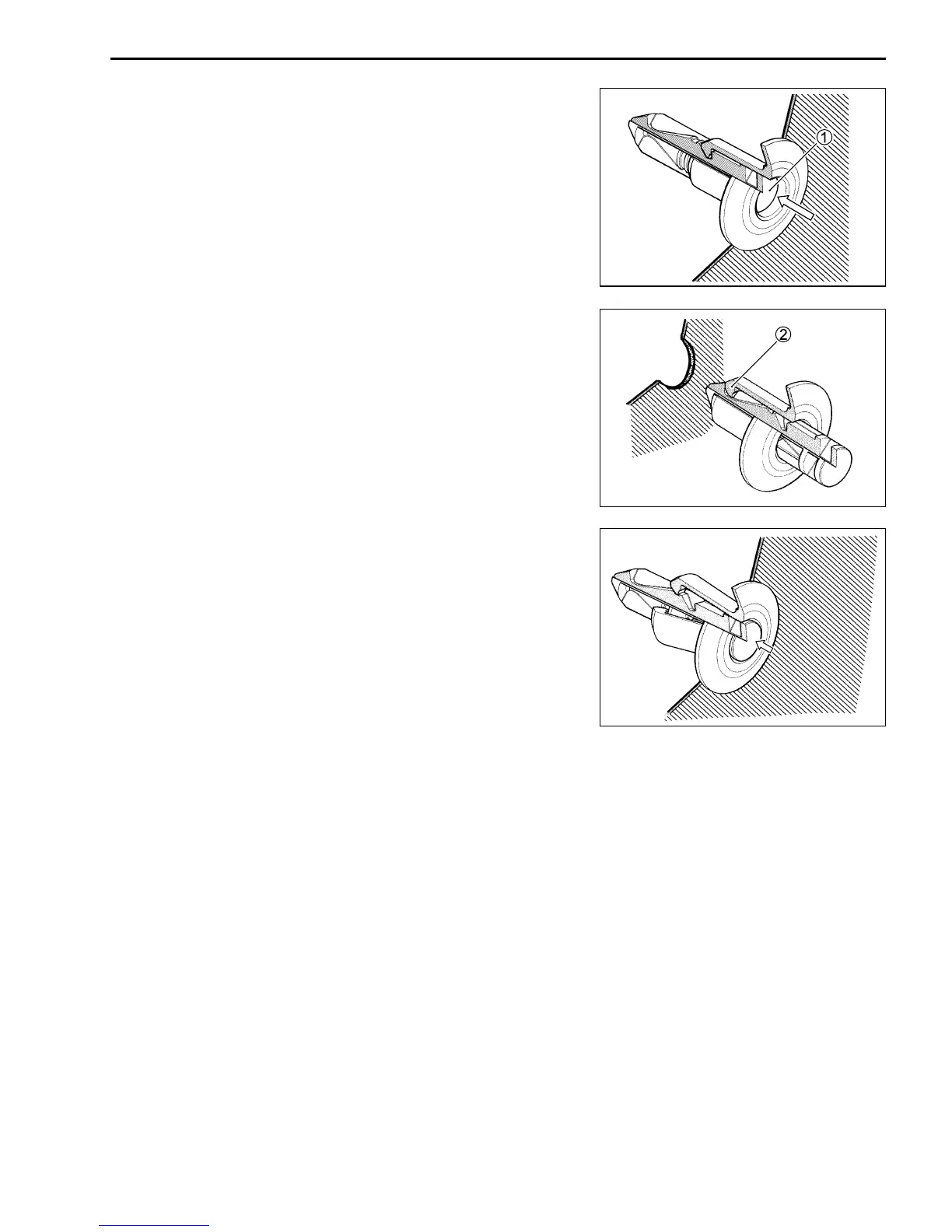

FASTENER REMOVAL AND REINSTALLATION
FASTENER
REMOVAL
• Depress the head of fasteners center piece 1.
• Pull out the fastener.
INSTALLATION
• Let the center piece stick out toward the head so that the pawls
2 close.
• Insert the fastener into the installation hole.
NOTE:
To prevent the pawl
2 from damage, insert the fastener all the
way into the installation hole.
• Push in the head of center piece until it becomes flush with the
fastener outside face.
