FI SYSTEM 4-45
ECM coupler

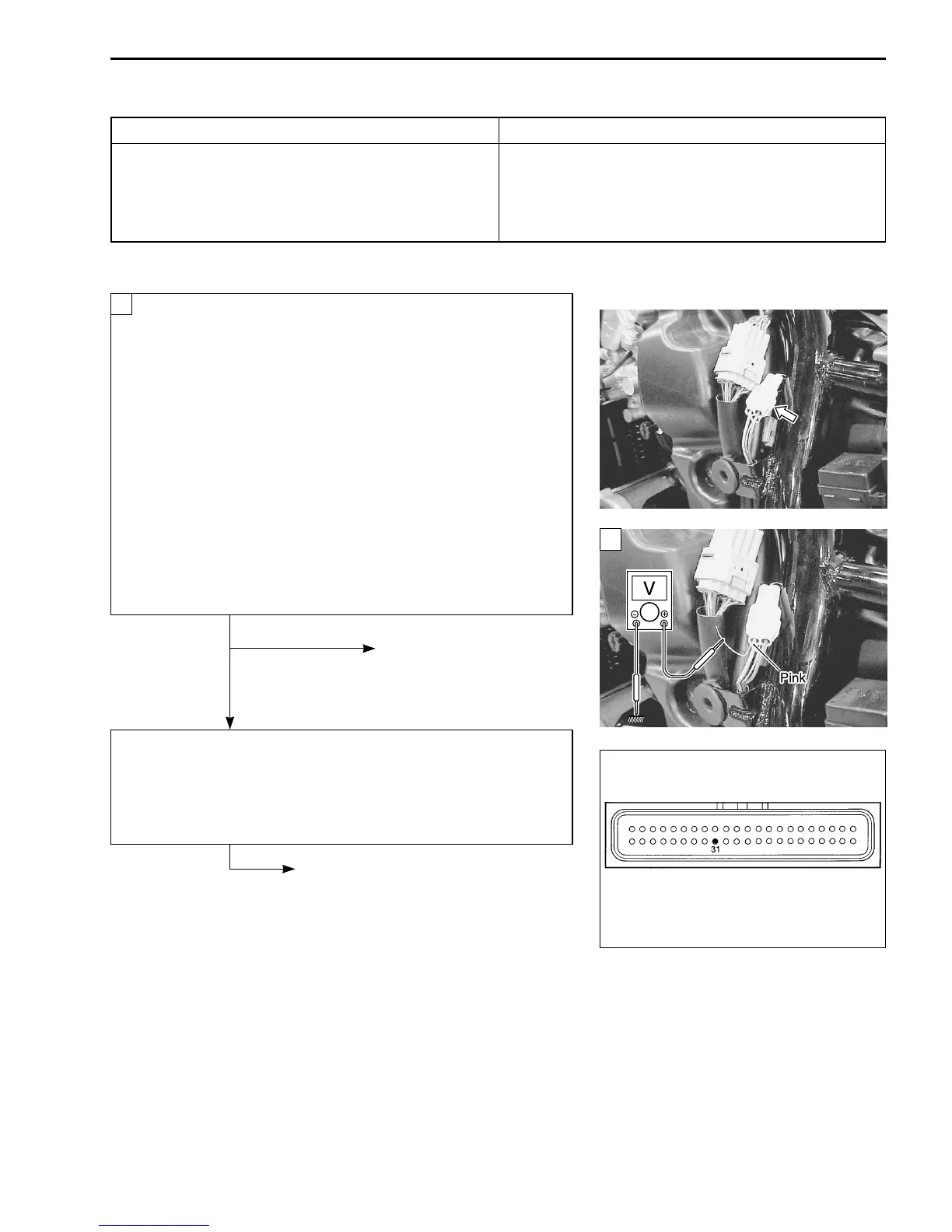

“C31” GEAR POSITION (GP) SWITCH CIRCUIT MALFUNCTION
DETECTED CONDITION POSSIBLE CAUSE
No Gear Position switch voltage • Gear Position switch circuit open or short.
Switch voltage low. • Gear Position switch malfunction.
Switch Voltage > 0.6 V • ECM malfunction.
(
without the above value.
)
INSPECTION
• Remove the left frame side cover. (6-3)
Turn the ignition switch OFF.
Check the GP switch coupler for loose or poor contacts.
If OK, then measure the GP switch voltage.
Support the motorcycle with the center stand.
Turn the side-stand to up-right position.
Turn the engine stop switch ON.
Insert the copper wire to the lead wire coupler.
Turn the ignition switch ON.
Measure the voltage at the wire side coupler between Pink
wire and ground, when shifting the gearshift lever from 1st
to Top.
GP switch voltage: More than 0.6 V
(Pink – Ground)
\ 09900-25008: Multi circuit tester
W Tester knob indication: Voltage (
)
No
Open or short circuit in the
Pink wire.
Replace the GP switch
with a new one.
Ye s
Pink wire open or shorted to ground, or poor U connection.
( 4-22)
If wire and connection are OK, intermittent trouble or faulty ECM.
Recheck each terminal and wire harness for open circuit and
poor connection. ( 4-4)
Replace the ECM with a new one,
and inspect it again.
1
1
To Next Page
