4-46 FI SYSTEM
“C32”, “C33”, “C34” or “C35” FUEL INJECTION MALFUNCTION
DETECTED CONDITION POSSIBLE CAUSE
No injector current. • Injector circuit open or short.
• Injector malfunction.
• ECM malfunction.

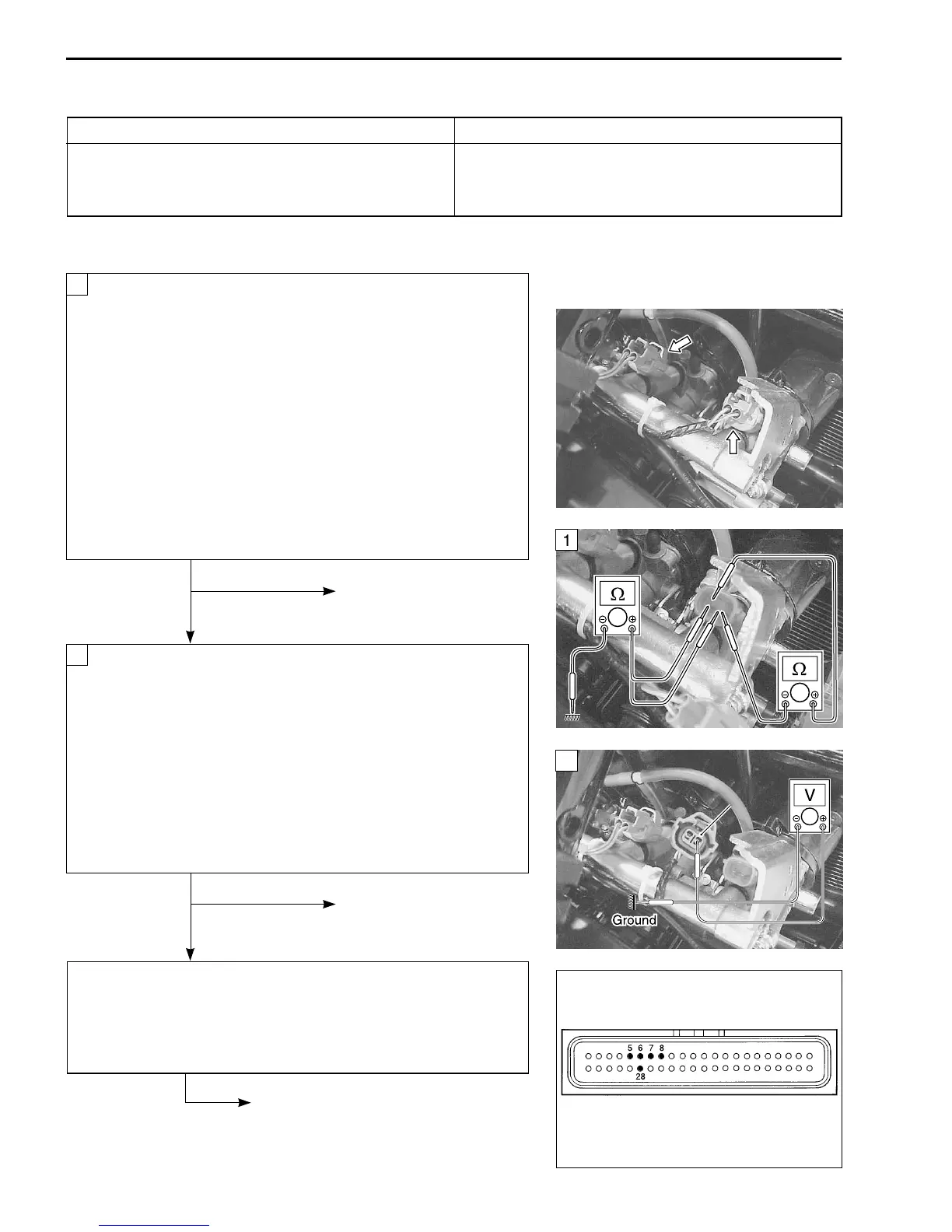

INSPECTION
• Lift and support the fuel tank with a proper stay. ( 4-48)
Turn the ignition switch OFF.
Check the injector coupler for loose or poor contacts.
If OK, then measure the injector resistance.
Disconnect the coupler and measure the resistance be-
tween terminals.
Injector resistance: 12 – 18
ΩΩ
ΩΩ
Ω at 20°C (68°F)
(Terminal – Terminal)
If OK, then check the continuity between each terminal
and ground.
Injector continuity:
∞Ω∞Ω
∞Ω∞Ω
∞Ω (Infinity)
(Terminal – Ground)
\ 09900-25008: Multi circuit tester
V Tester knob indication: Resistance (
ΩΩ
ΩΩ
Ω)
No
Replace the injector with
a new one. ( 4-64)
Ye s
Turn the ignition switch ON.
Measure the injector voltage between Y/R wire and
ground.
Injector voltage: Battery voltage
(Y/R – Ground)
NOTE:
Injector voltage can be detected only 3 seconds after igni-
tion switch is turned ON.
\ 09900-25008: Multi circuit tester
W Tester knob indication: Voltage (
)
No
Open circuit in the Yellow/
Red wire.
Ye s
Gr/W, Gr/B, Gr/Y, Gr/R or Y/R wire open or shorted to ground, or
poor 5, 6, 7, 8 or R connection. ( 4-22)
If wire and connection are OK, intermittent trouble or faulty ECM.
Recheck each terminal and wire harness for open circuit and
poor connection. ( 4-4)
Replace the ECM with a new one,
and inspect it again.
1
2
ECM coupler
Y/RY/R
W
1
2
To Next Page
