FI SYSTEM 4-59
THROTTLE BODY CLEANING
#
Some carburetor cleaning chemicals, especially dip-type
soaking solutions, are very corrosive and must be
handled carefully. Always follow the chemical
manufacturer’s instructions on proper use, handling and
storage.
• Clean all passageways with a spray-type carburetor cleaner
and blow dry with compressed air.
Do not use wire to clean passageways. Wire can damage
passageways. If the components cannot be cleaned with
a spray cleaner it may be necessary to use a dip-type
cleaning solution and allow them to soak. Always follow
the chemical manufacturer’s instructions for proper use
and cleaning of the throttle body components. Do not
apply carburetor cleaning chemicals to the rubber and
plastic materials.
INSPECTION
Check following items for any damage or clogging.
* O-ring * Fuel injector filter
* Throttle shaft bushing and seal * Injector cushion seal
* Throttle valve * Injector dust seal
* Secondary throttle valve * Vacuum hose

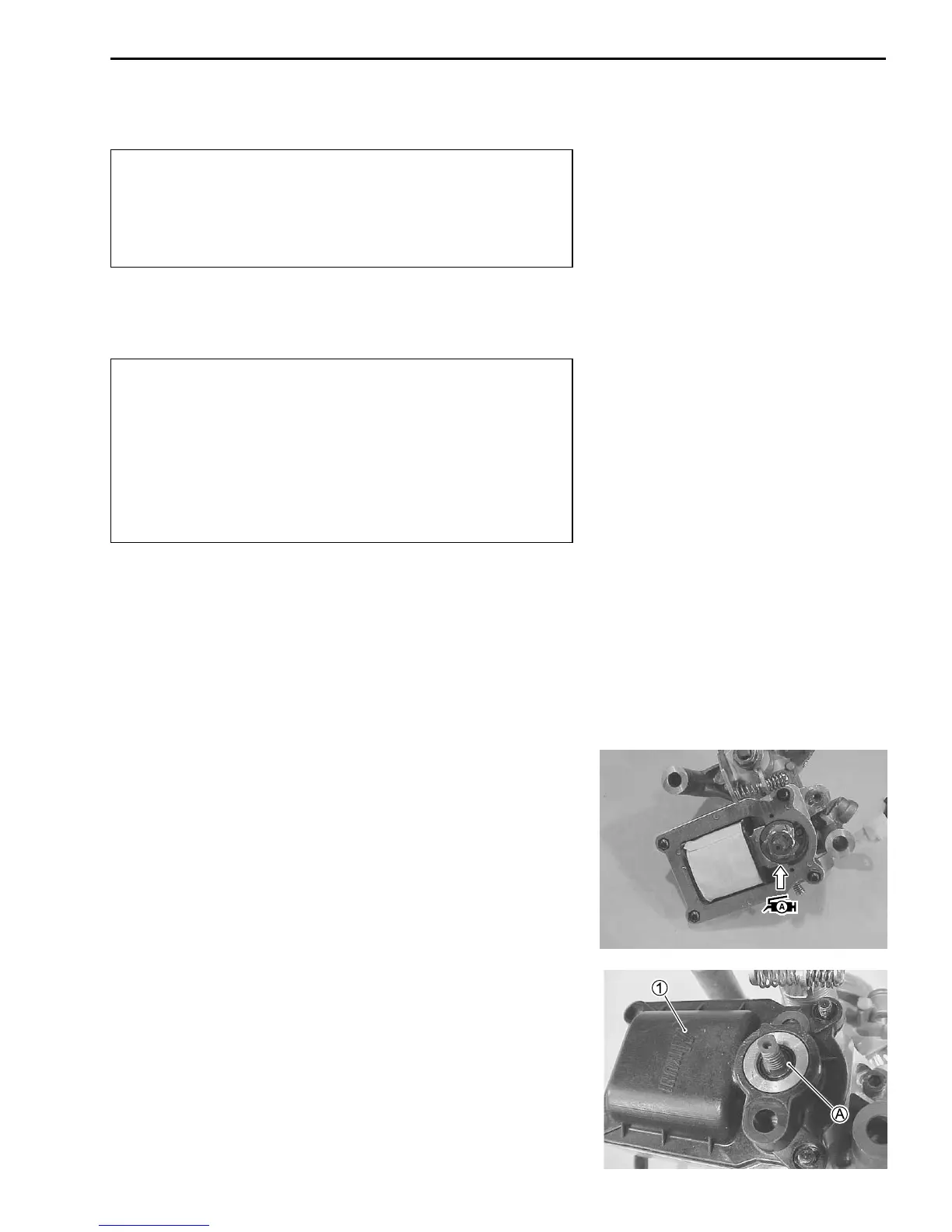

THROTTLE BODY REASSEMBLY
Reassemble the throttle body in the reverse order of disassem-
bly.
Pay attension to the following points:
• Be careful not to apply grease to the other parts when appling
the grease to the shaft.
X 99000-25010: SUZUKI SUPER GREASE “A”
• Install the actuator cover 1.
NOTE:
Before installing the cover
1
, apply grease lightly to the dust
seal
A
.
X 99000-25010: SUZUKI SUPER GREASE “A”
To Next Page
