ENGINE 3-23
CYLINDER HEAD COVER

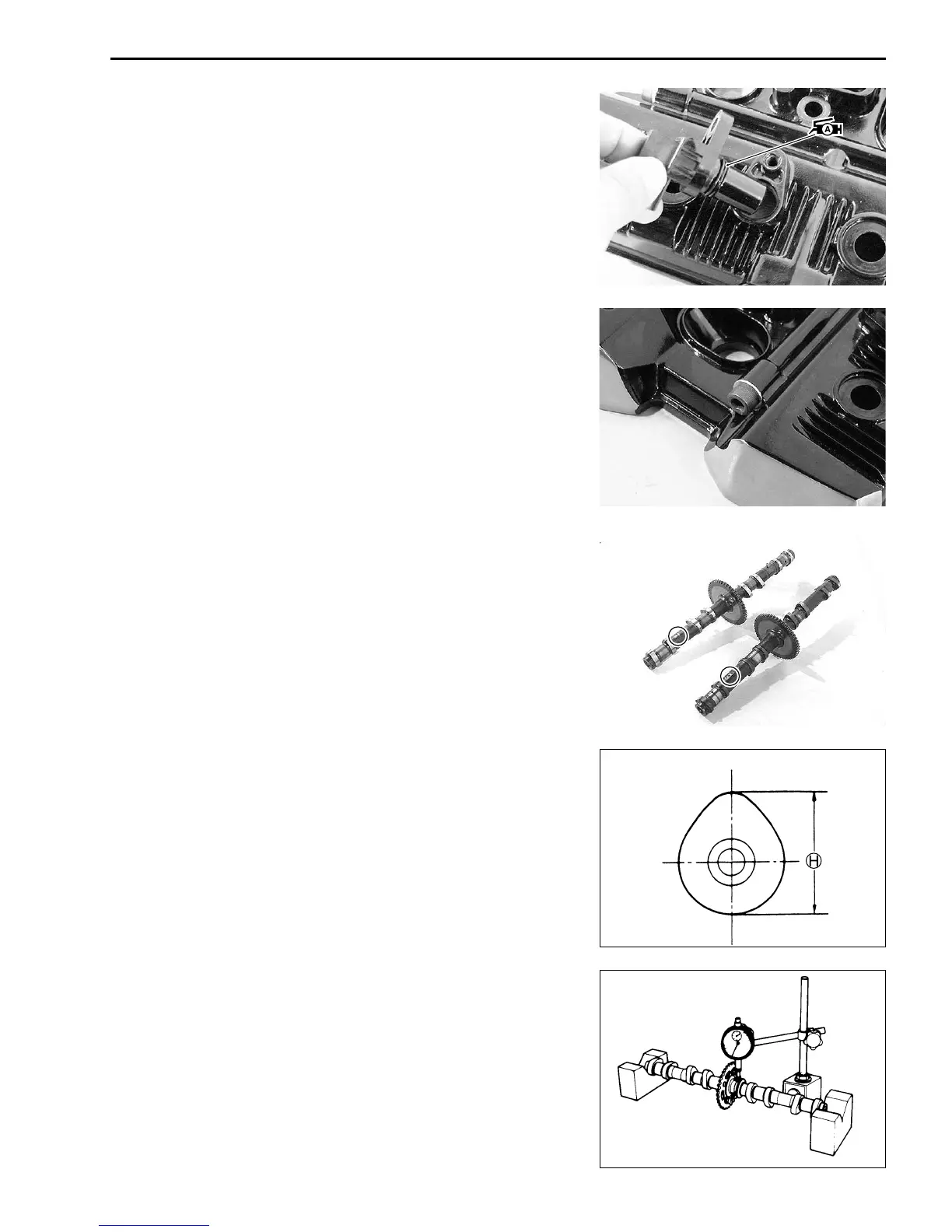

CAM POSITION SENSOR
• Inspect the cam position sensor for abnormal condition.
• With the grease applied to the O-ring, install the cam position
sensor.
" Cam position sensor bolt: 10 N
.
m (1.0 kgf
.
m, 7.4 lb-ft)
X 99000-25010: SUZUKI SUPER GREASE “A”
OIL GALLERY PLUG
• Install the gasket and the oil gallery plug.
" Oil gallery plug: 14 N
.
m (1.4 kgf
.
m, 10 lb-ft)
CAMSHAFT
CAMSHAFT IDENTIFICATION
The exhaust camshaft can be distinguished from that of the
intake by the embossed letters “EX” (for exhaust) as against
letters “IN” (for intake).
CAM WEAR
• Check the camshaft for wear or damage.
• Measure the cam height H with a micrometer.
\ 09900-20202: Micrometer (25 – 50 mm)
Cam height H:
Service Limit: (IN.) : 34.98 mm (1.378 in)
(EX.) : 33.88 mm (1.339 in)
CAMSHAFT RUNOUT
• Measure the runout using the dial gauge.
• Replace the camshaft if the runout exceeds the limit.
\ 09900-20606: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
Camshaft runout:
Service Limit (IN & EX): 0.10 mm (0.004 in)
To Next Page
