CHASSIS 6-55

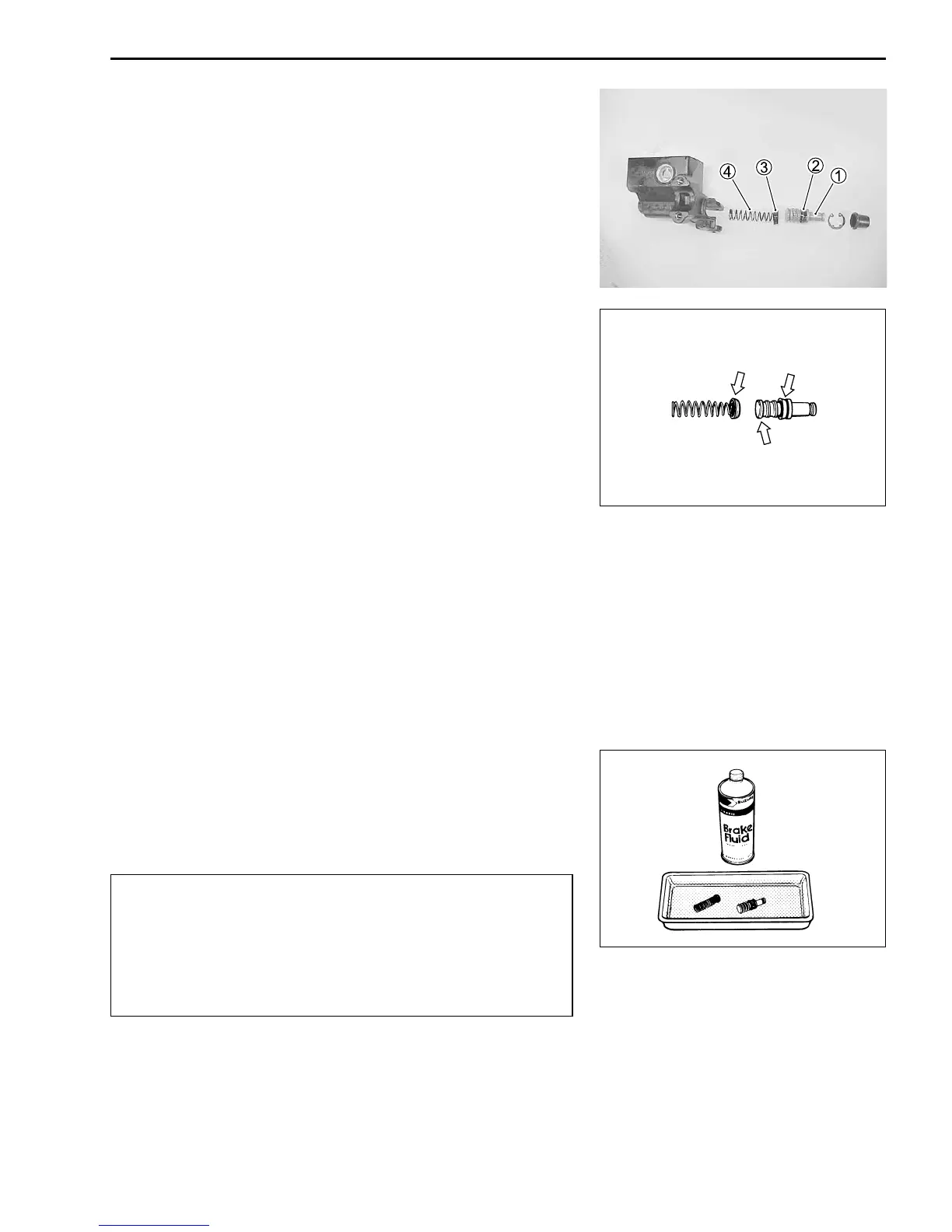

MASTER CYLINDER INSPECTION
Inspect the master cylinder bore for any scratches or other dam-
age.
Inspect the piston surface for any scratches or other damage.
Inspect the primary cup, secondary cup and dust seal for wear or
damage.
MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemble the master cylinder in the reverse order of removal
and disassembly. Pay attention to the following points:

* Wash the master cylinder components with fresh brake
fluid before reassembly. Never use cleaning solvent or
gasoline to wash them.
* Do not wipe the components with a rag.
* Apply brake fluid to the cylinder bore and all the com-
ponent to be inserted into the bore.
O Specification and Classification: DOT 4
• Remove the piston/secondary cup, primary cup and return
spring.
1 Piston
2 Secondary cup
3 Primary cup
4 Return spring
To Next Page
