6-46 CHASSIS

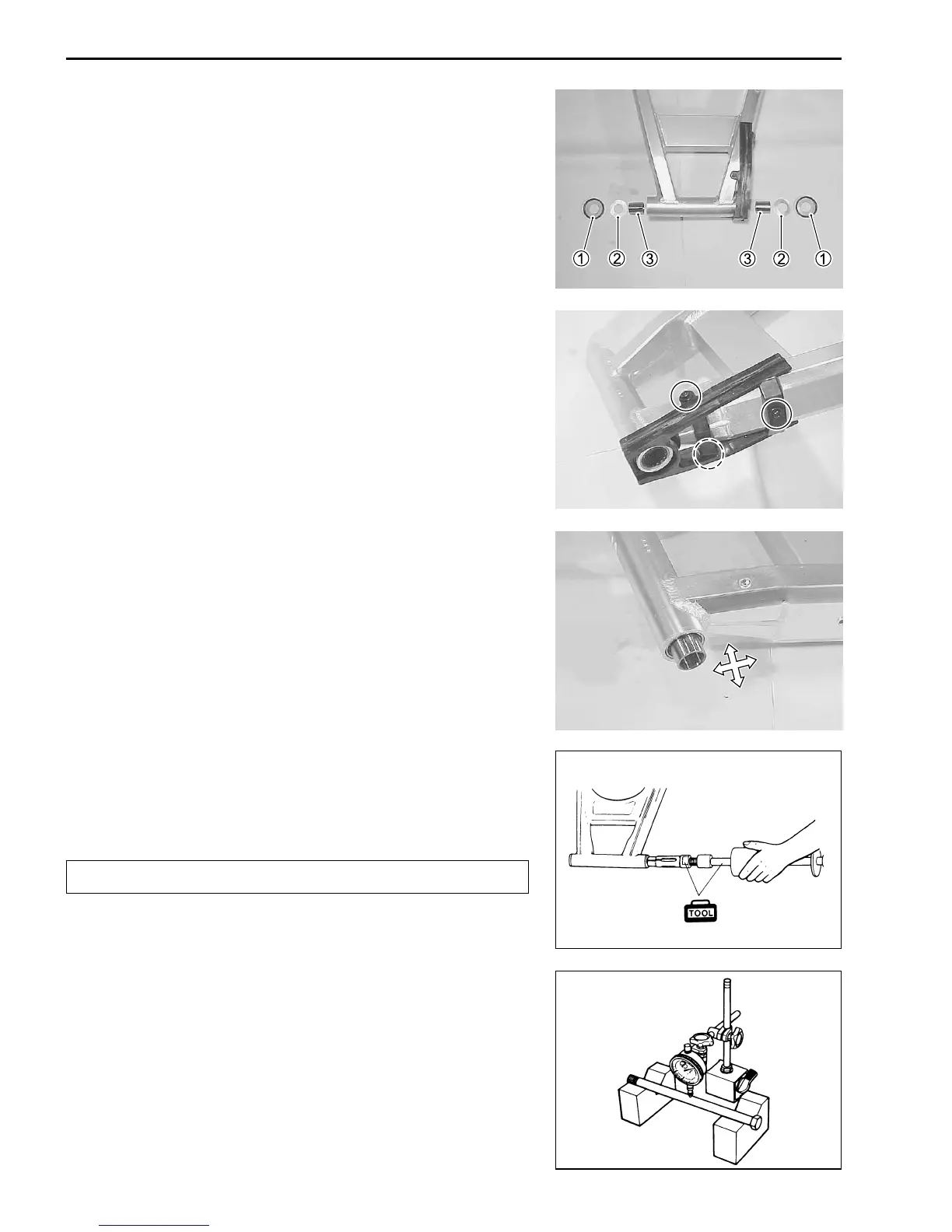

SWINGARM PIVOT SHAFT
Using a dial gauge, check the pivot shaft runout and replace it if
the runout exceeds the limit.
\ 09900-20607: Dial gauge (1/100 mm, 10 mm)
09900-20701: Magnetic stand
09900-21304: V-block (100 mm)
Swingarm pivot shaft runout:
Service limit: 0.3 mm (0.01 in)
INSPECTION AND DISASSEMBLY
DUST SEAL AND SPACER
• Remove the dust seals 1, washers 2 and spacers 3 from
swingarm.
• Inspect the spacers for any flaws or other damage. If any de-
fects are found, replace the spacers with the new ones.
SWINGARM BEARING
Insert the spacer into bearing and check the play when moving
the spacer up and down.
If excessive play is noted, replace the bearing with a new one.
• Remove the swingarm bearing and spacer with the special tools.
\ 09941-64511: Bearing remover
09930-30102: Sliding shaft
Never reuse the removed bearings.
CHAIN BUFFER
• Remove the chain buffer.
• Inspect the chain buffer for wear and damage. If any defects
are found, replace the chain buffer with a new one.
