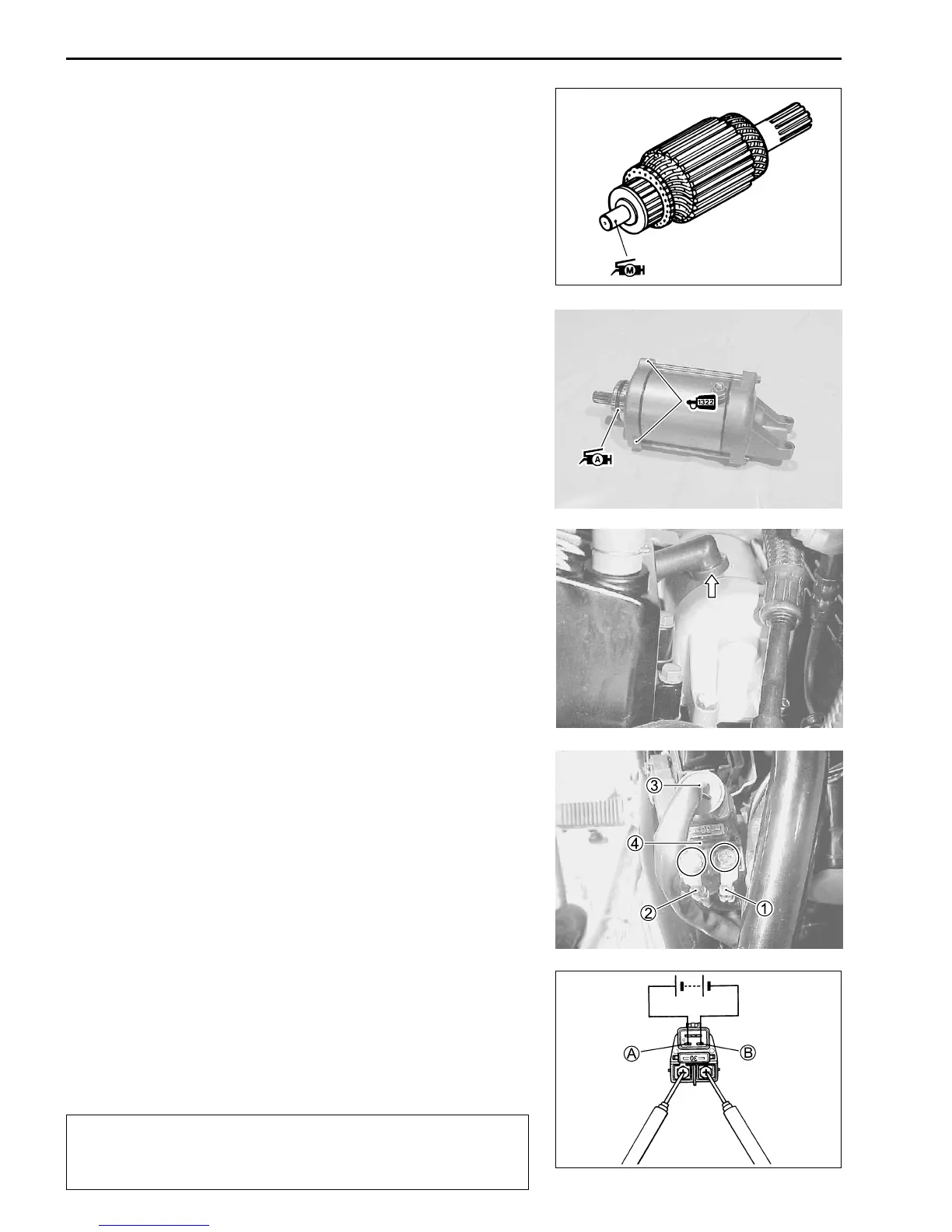

7-14 ELECTRICAL SYSTEM
• Apply a small quantity of SUZUKI MOLY PASTE to the arma-
ture shaft.
Z 99000-25140: SUZUKI MOLY PASTE
• Apply a small quantity of THREAD LOCK SUPER “1322” to the
starter motor housing bolts.
H99000-32110: THREAD LOCK SUPER “1322”
• Apply SUZUKI SUPER GREASE “A” to the O-ring.
X 99000-25010: SUZUKI SUPER GREASE “A”
• Tighten the starter motor lead wire mounting nut.
STARTER RELAY INSPECTION
• Remove the seat. (6-3)
• Remove the left frame cover.
• Disconnect the battery - lead wire from the battery.
• Remove the starter relay cover.
• Disconnect the starter motor lead wire 1, battery lead wire 2
and starter relay coupler 3.
• Remove the starter relay 4.
Apply 12 V to A and B terminals and check for continuity be-
tween the positive and negative terminals using the multi circuit
tester. If the starter relay clicks and continuity is found, the relay
is ok.
\ 09900-25008: Multi circuit tester set
= Tester knob indication: Continuity test (
??
??
?)
Do not apply a battery voltage to the starter relay for more
than five seconds, since the relay coil may overheat and
damaged.
