6-68 CHASSIS

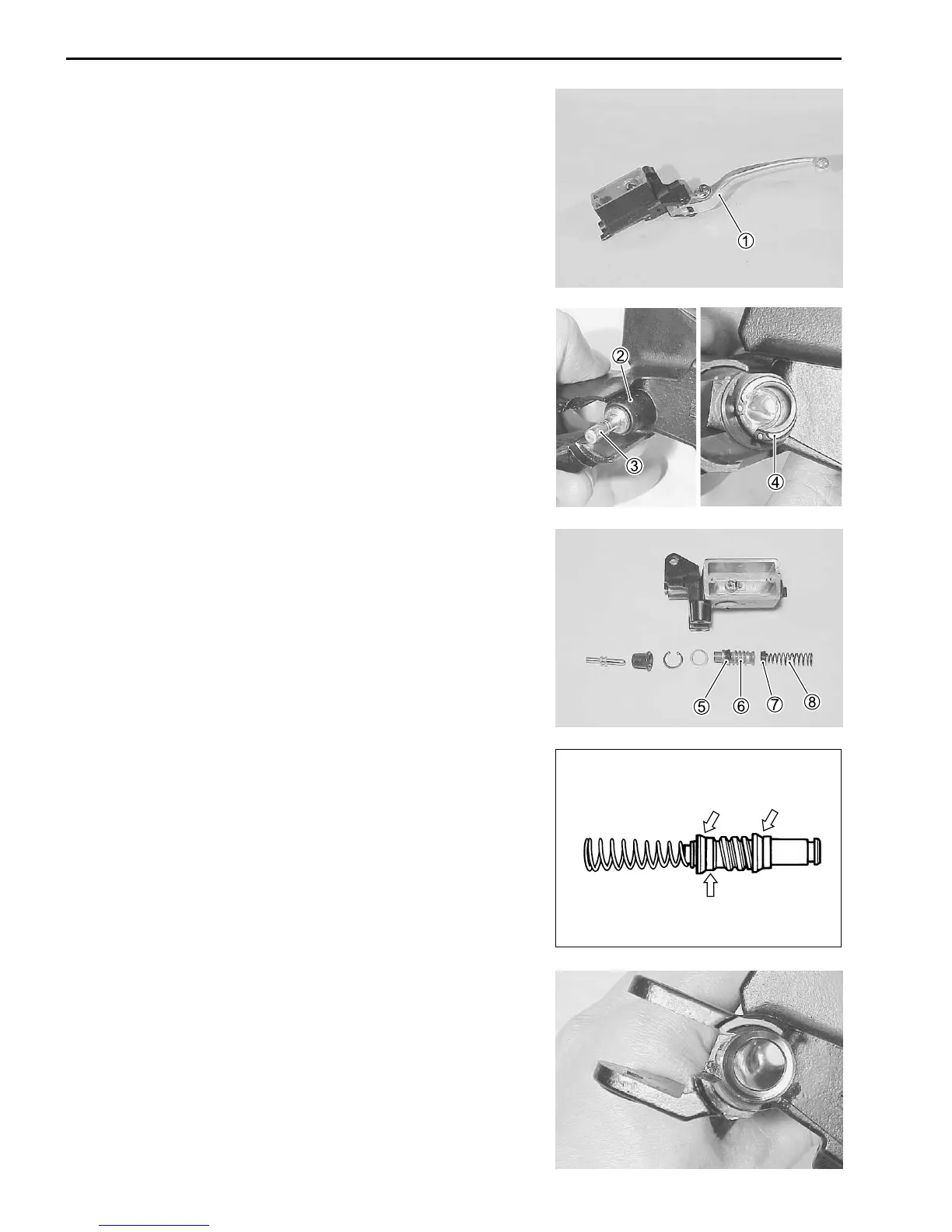

• Remove the clutch lever 1 and clutch lever position switch.
• Remove the boot 2 and push rod 3.
• Remove the circlip 4 with snap ring pliers.
\ 09900-06108: Snap ring pliers
• Remove the piston/cup set
5 Secondary cup
6 Piston
7 Primary cup
8 Spring
CLUTCH MASTER CYLINDER INSPECTION
Inspect the master cylinder bore for any scratches or other dam-
age.
Inspect the piston surface for any scratches or other damage.
Inspect the primary cup, secondary cup and dust seal for wear or
damage.
