3-56 ENGINE
ENGINE REASSEMBLY
• Reassemble the engine in the reverse order of disassembly.
• The following steps require special attention or precautionary
measures should be taken.
NOTE:
Apply engine oil to each running and sliding part before reas-
sembling.

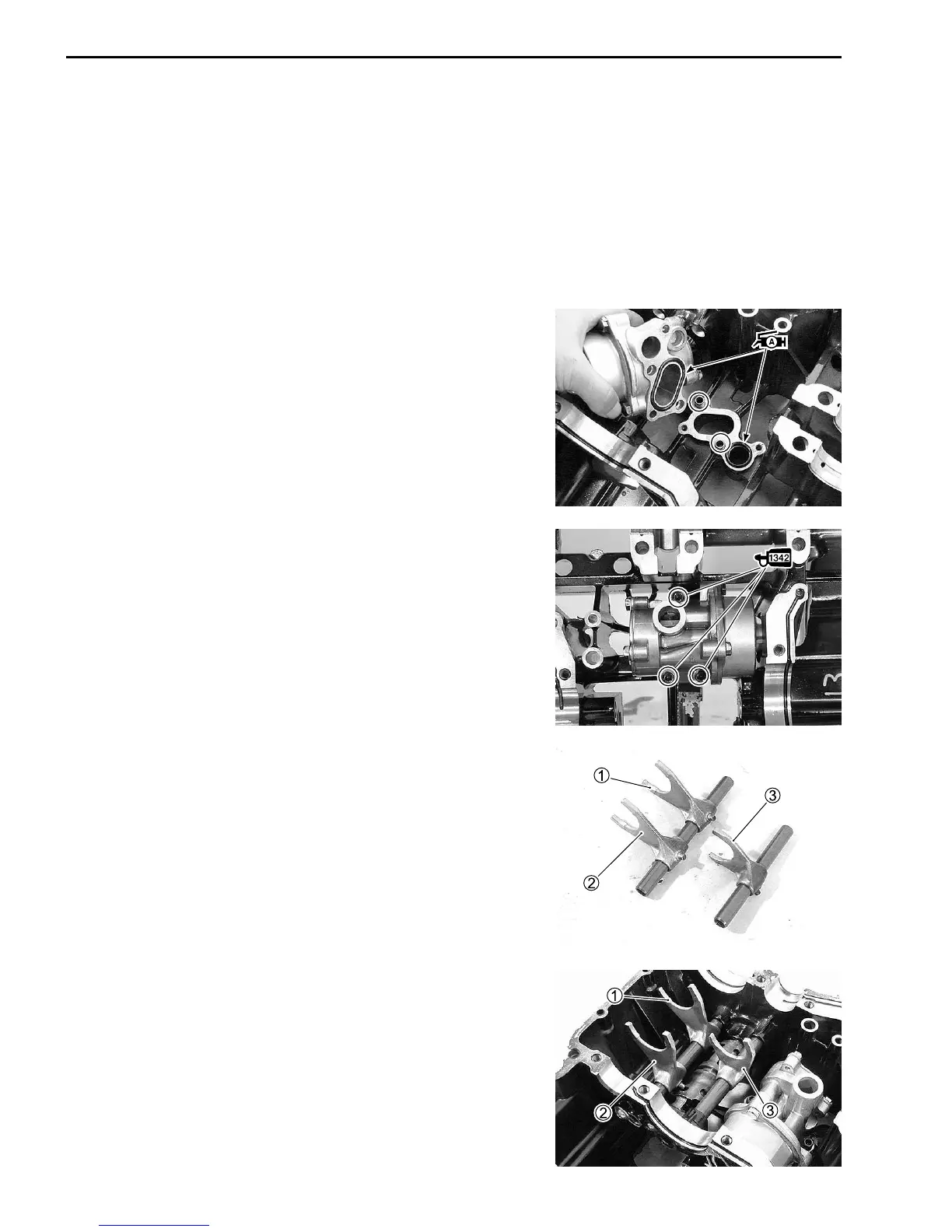

OIL PUMP
• Install the dowel pins.
• Apply grease to the O-ring, install the oil pump assembly.
X 99000-25010: SUZUKI SUPER GREASE “A”
• Apply a small quantity of thread lock to the bolts and tighten
them.
J99000-32050: THREAD LOCK “1342”
GEARSHIFT CAM/GEARSHIFT FORK
• Install the gearshift cam with the bearing.
• Install the gearshift forks and their shafts as shown.
1 Gearshift fork No.1 (For 6th driven gear)
2 Gearshift fork No.1 (For 5th driven gear)
3 Gearshift fork No.3 (For 3rd/4th drive gear)
NOTE:
The gearshift forks No.1 (
1
and
2
) are the same.
To Next Page
