4-68 FI SYSTEM

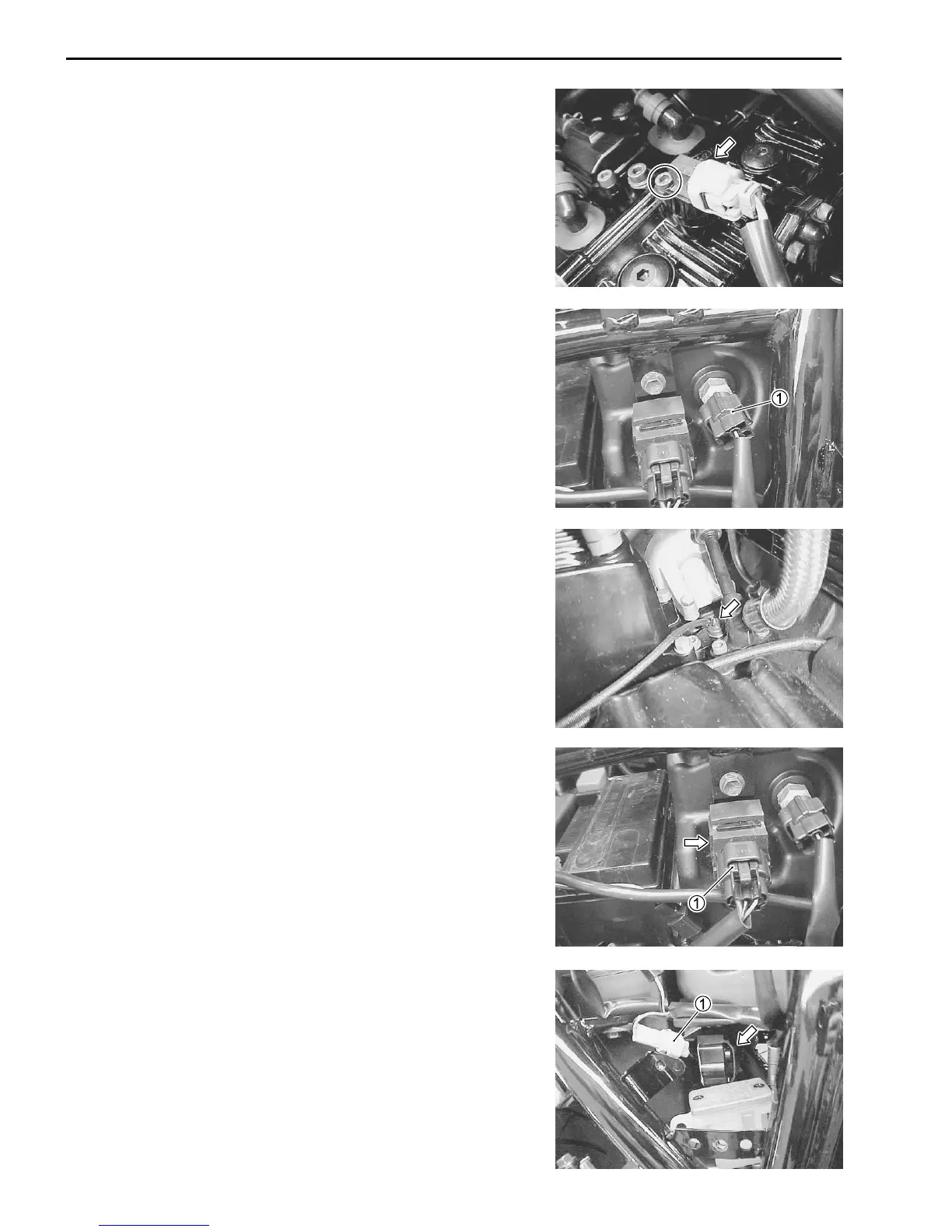

CMP SENSOR INSPECTION
The signal rotor is installed on the intake camshaft, and the cam-
shaft position sensor (Pick-up coil) is installed on the cylinder
head cover. ( 4-31)
CMP SENSOR REMOVAL/INSTALLATION
• Lift and support the fuel tank. ( 4-48)
• Disconnect the coupler and remove the CMP sensor.
Installation is in the reverse order of removal. (3-23)
IAT SENSOR INSPECTION
The intake air temperature sensor is installed at the right side of
the air cleaner box. ( 4-38)
IAT SENSOR REMOVAL/INSTALLATION
• Remove the right frame side cover. ( 6-3)
• Disconnect the IAT sensor coupler 1 and remove the IAT sen-
sor from the air cleaner box.
• Installation is in the reverse order of removal.
" IAT sensor: 18 N
.
m (1.8 kgf
.
m, 13.0 lb-ft)
EOT SENSOR INSPECTION
The engine oil temperature sensor is installed on the upper crank-
case. ( 4-37 and 5-11)
EOT SENSOR REMOVAL/INSTALLATION
( 3-14)
AP SENSOR INSPECTION
The atmospheric pressure sensor is located at the right side of
the air cleaner box. ( 4-39)
AP SENSOR REMOVAL/INSTALLATION
• Remove the right frame side cover. (6-3)
• Disconnect the coupler 1 and remove the AP sensor.
• Installation is in the reverse order of removal.
TO SENSOR INSPECTION
The tip over sensor is located in ahead of the battery holder.
(4-41)
TO SENSOR REMOVAL/INSTALLATION
• Remove the right frame side cover. (6-3)
• Remove the rear brake fluid reservoir bolt.
• Disconnect the coupler 1 and remove the TO sensor.
• Installation is in the reverse order of removal.
NOTE:
When installing the TO sensor, bring the “UPPER” letter on it to
the top.
