CHASSIS 6-47
REASSEMBLY
Reassemble the swingarm in the reverse order of disassembly and removal.
Pay attention to the following points:

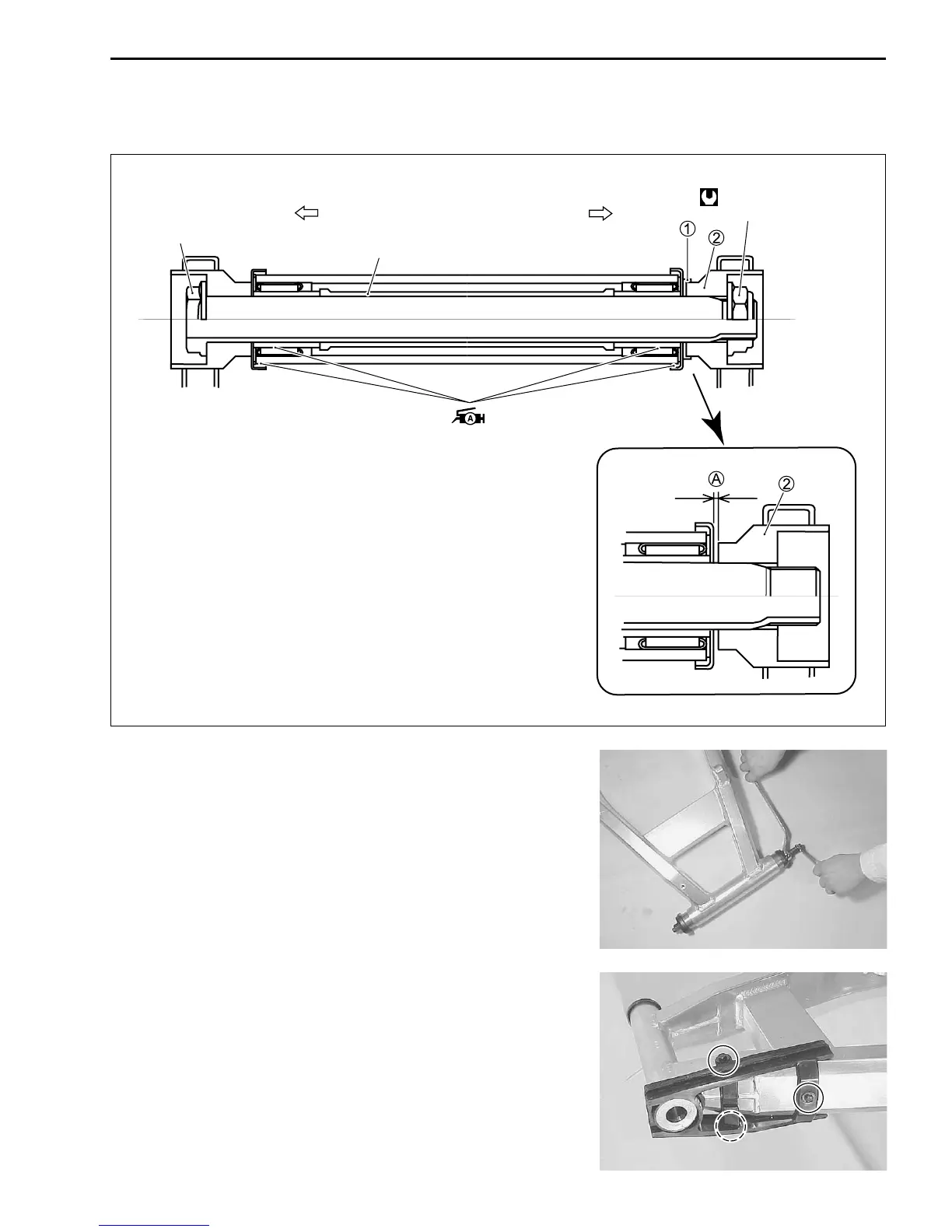

SWINGARM BEARING
• Install the bearings and spacer into the swingarm pivot by us-
ing the special tool.
\ 09941-34513: Steering race installer
• Apply grease to the bearings and spacers and dust seals.
• Install the bearings, spacers, washers and dust seals.
X 99000-25010: SUZUKI SUPER GREASE “A”
• Install the chain buffer to the swingarm.
• Install the chain case to the swingarm.
Left Right
Pivot shaft
Spacer
120 N
.
m
(12.0 kgf
.
m, 87.0 lb-ft)
PIVOT THRUST CLEARANCE
* The cap (thrust shim) 1 is used for adjusting the pivot thrust
clearance A.
* Before tightening the pivot nut, measure the pivot thrust
clearance A by using the thickness gauge. If the clearance
exceeds 0.9 mm (0.035 in), the cap (thrust shim) 1 must
be installed at the right frame pivot boss 2 as shown.
To Next Page
