PERIODIC MAINTENANCE 2-15
THROTTLE VALVE SYNCHRONIZATION
Inspect throttle valve synchronization periodically. (4-66)

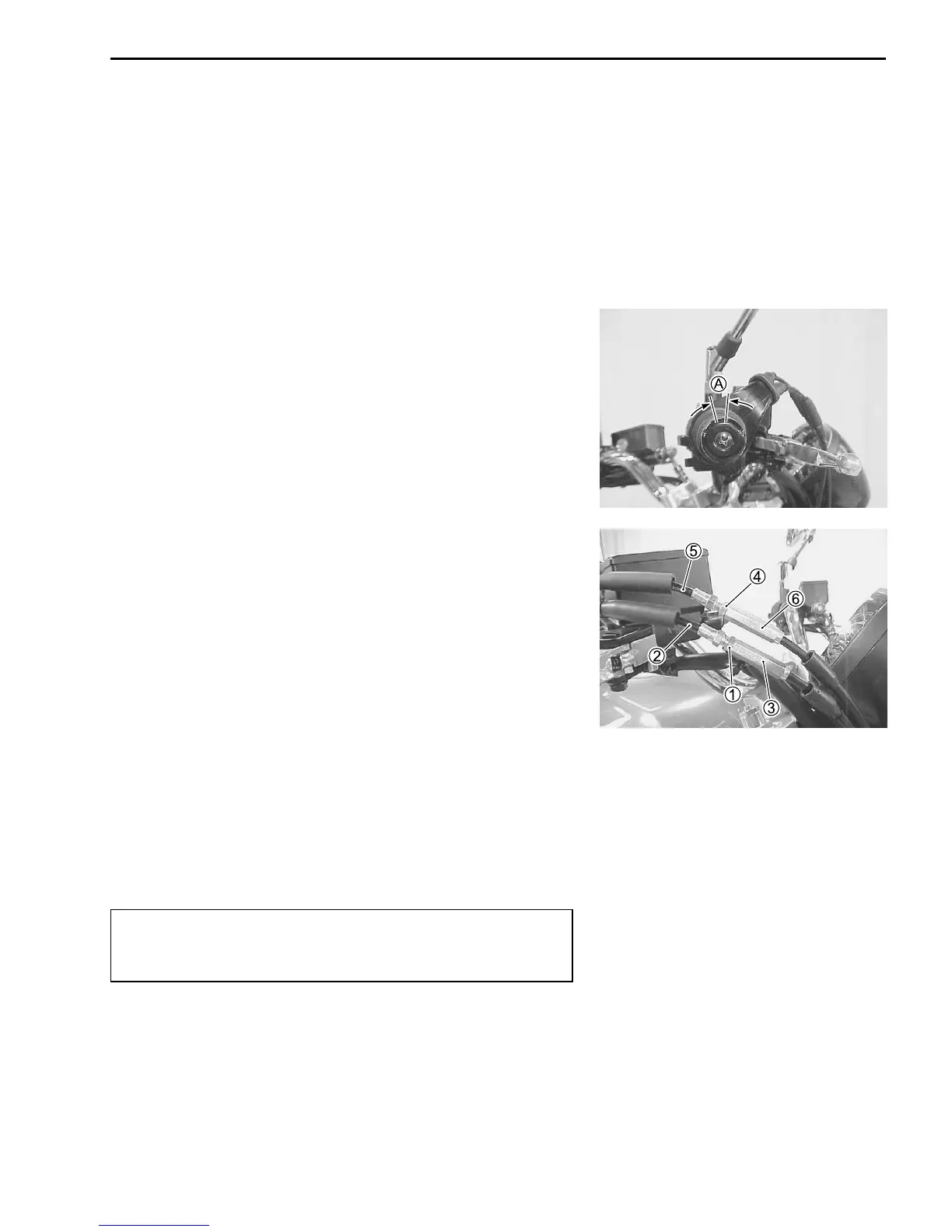

THROTTLE CABLE PLAY
Adjust the throttle cable play A as follows.
MINOR ADJUSTMENT
1st step:
• Loosen the locknut 1 of the throttle returning cable 2 and fully
turn in the adjuster 3.
2nd step:
• Loosen the locknut 4 of the throttle pulling cable 5.
• Turn the adjuster 6 in or out until the throttle cable play (at the
throttle grip) A is between 2.0 – 4.0 mm (0.08 – 0.16 in).
• Tighten the locknut 4 while holding the adjuster 6.
Throttle cable play A: 2.0 – 4.0 mm (0.08 – 0.16 in)
3rd step:
• While holding the throttle grip at the fully closed position, slowly
turn out the adjuster 3 of the throttle returning cable 2 until
resistance is felt.
• Tighten the locknut 1 while holding the adjuster 3.
#
After the adjustment is completed, check that handlebar
movement does not raise the engine idle speed and that
the throttle grip returns smoothly and automatically.
NOTE:
Major adjustment can be made at the throttle body side adjuster.
To Next Page
