6-16 CHASSIS
INSPECTION

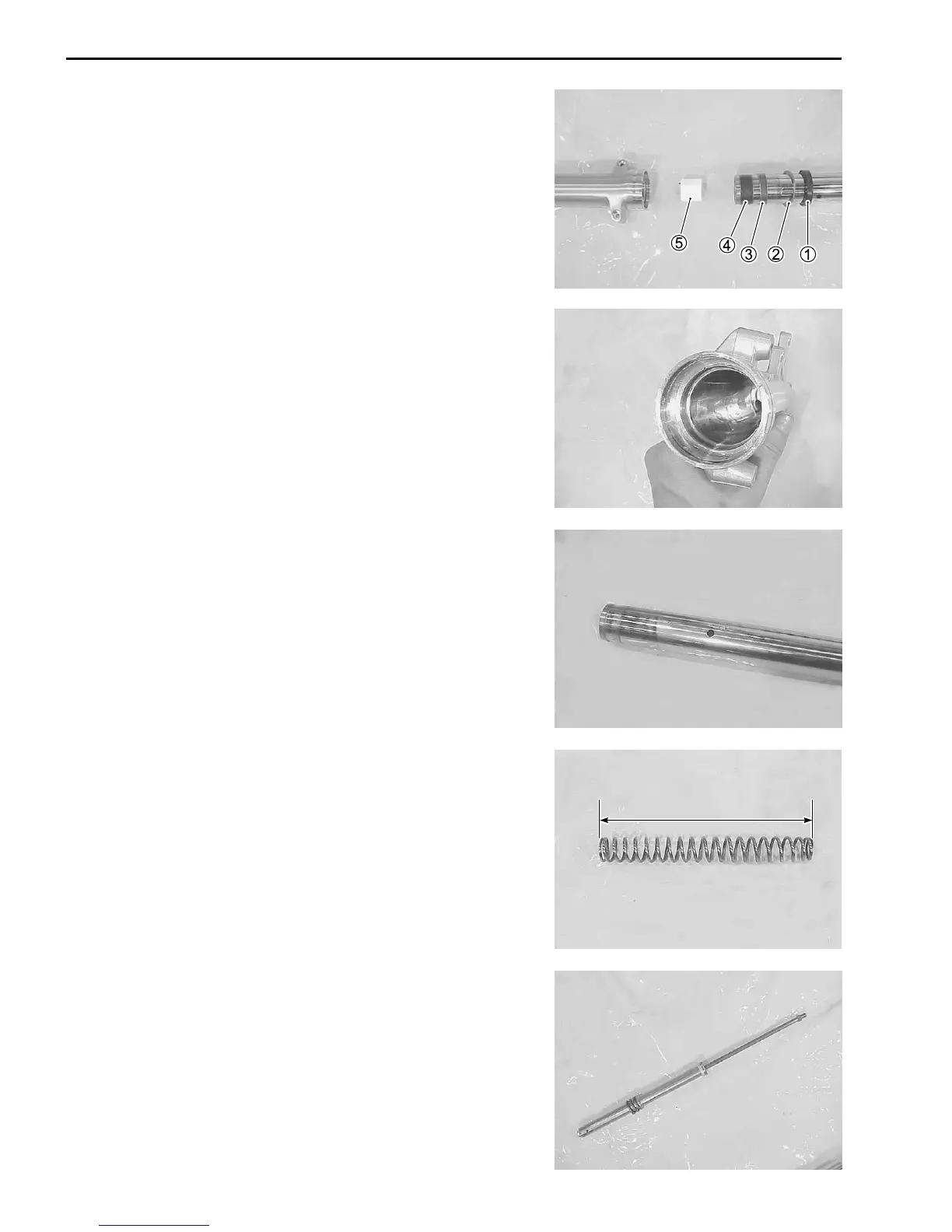

INNER AND OUTER TUBES
• Inspect the inner tube outer surface and the outer tube inner
surface for scratches.
• If any defects are found, replace them with the new ones.
FORK SPRING
• Measure the fork spring free length.
• If it is shorter than the service limit, replace it with a new one.
Front fork spring free length
Service limit : 316.0 mm (12.44 in)
DAMPER ROD
• Move the inner rod by hand to examine it for smoothness.
• If any defects are found, replace the inner/damper rod (car-
tridge).
• Remove the following parts.
1 Oil seal
2 Oil seal retainer
3 Guide metal
4 Slide metal
5 Oil lock piece
