6-48 CHASSIS
• Install the rear brake hose with the proper brake hose routing.
(Rear brake hose routing:8-23)
" Brake hose union bolt: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)

Bleed air from the brake system. (2-22)
FINAL INSPECTION AND ADJUSTMENT
After installing the rear suspension and wheel, the following ad-
justments are required before driving.
* Drive chain: 2-17
* Tire pressure: 6-72
* Chassis bolts and nuts: 2-25

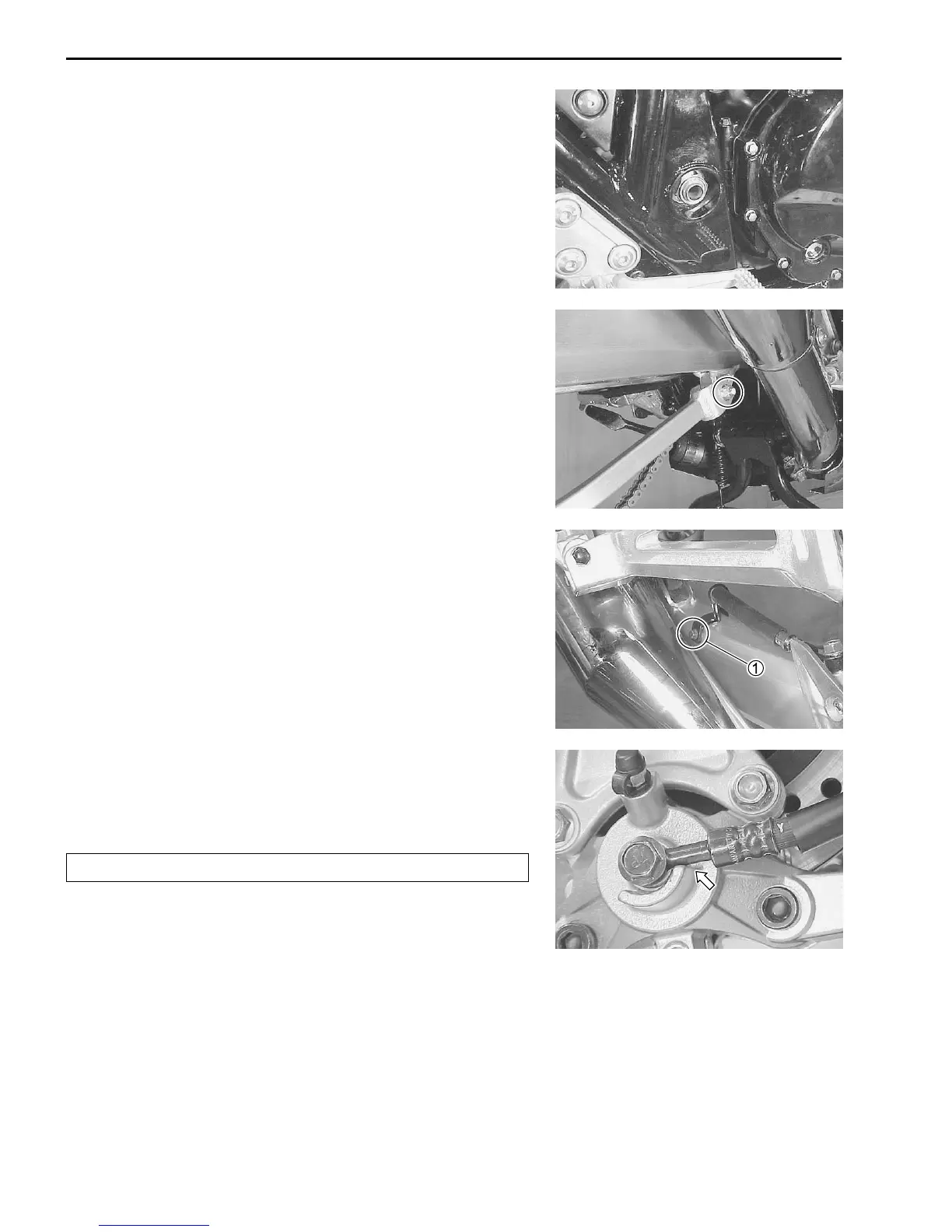

REMOUNTING
Remount the swingarm in the reverse order of disassembly and
removal, and pay attention to the following points:
SWINGARM
• Insert the swingarm pivot shaft and tighten it to the specified
torque.
" Swingarm pivot nut: 120 N
.
m (12.0 kgf
.
m, 87.0 lb-ft)
• Install the pivot shaft caps.
• Install the rear shock absorbers. (6-42)
• Install the rear brake hose guide.
• Install the rear wheel. (6-36)
• Install the touque link.
" Touque link bolt/nut: 28 N
.
m (2.8 kgf
.
m, 20.5 lb-ft)
To Next Page
