SUSPENSION SETTING
After installing the rear suspension, adjust the spring pre-load
and damping force as follows.

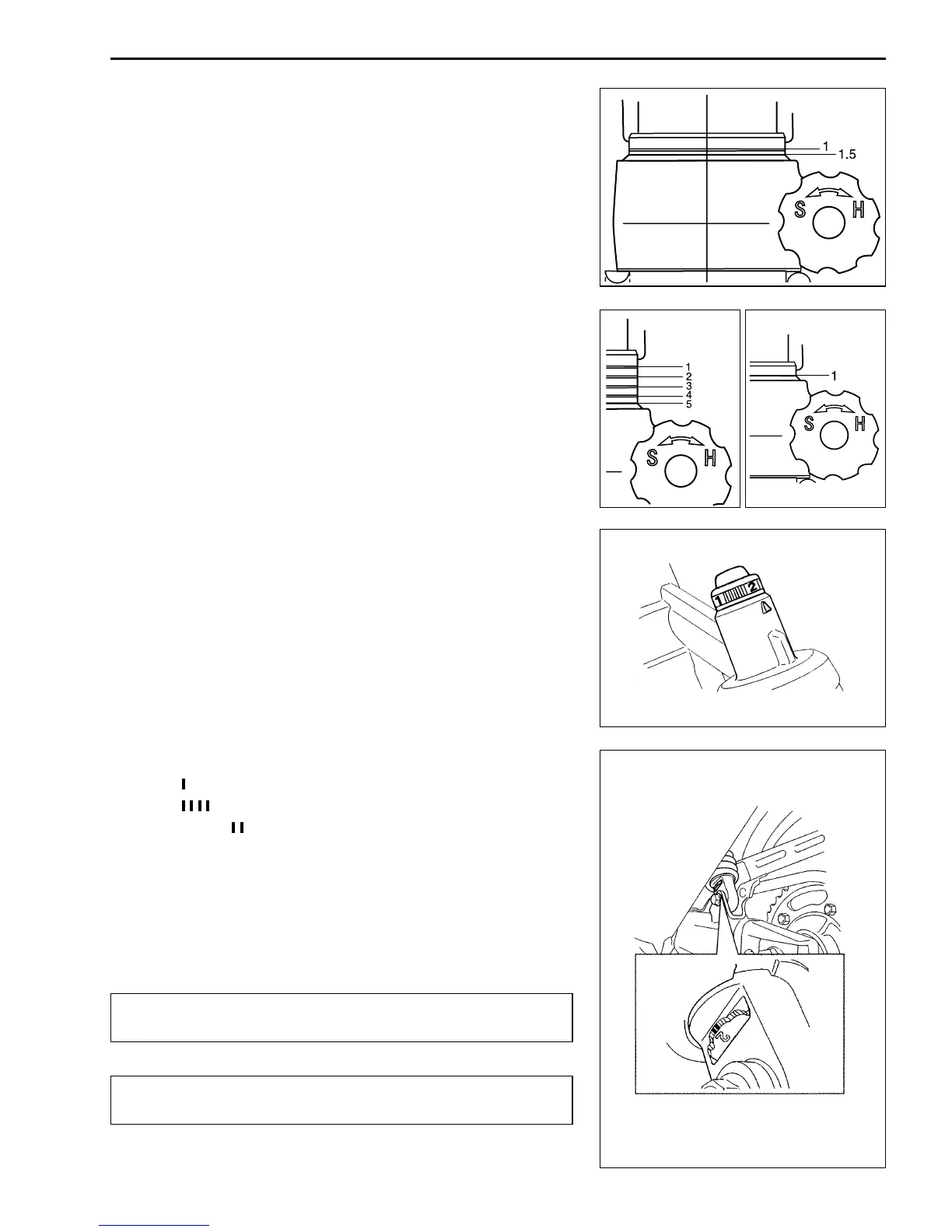

SPRING PRE-LOAD ADJUSTMENT
Position “1” provides the softest spring pre-load.
Position “5” provides the stiffest spring pre-load.
STD position: “1.5”
DAMPING FORCE ADJUSTMENT
The rebound and compression damping force can be individually
adjusted by turning the respective adjusters.
Compression side
Position “1” provides the softest rebound damping force.
Position “4” provides the stiffest rebound damping force.
STD position: Position “2”
Stiffest position
Rebound side
Position “
” provides the softest rebound damping force.
Position “
” provides the stiffest rebound damping force.
STD position: “
”
Be sure that the damping adjusters are firmly located in
a detent, and not between positions.
#
Be sure to adjust the spring pre-load and damping force
on the both suspensions equally.
Softest position
Compression side
Rebound side
STD position
