3-42 ENGINE
TRANSMISSION

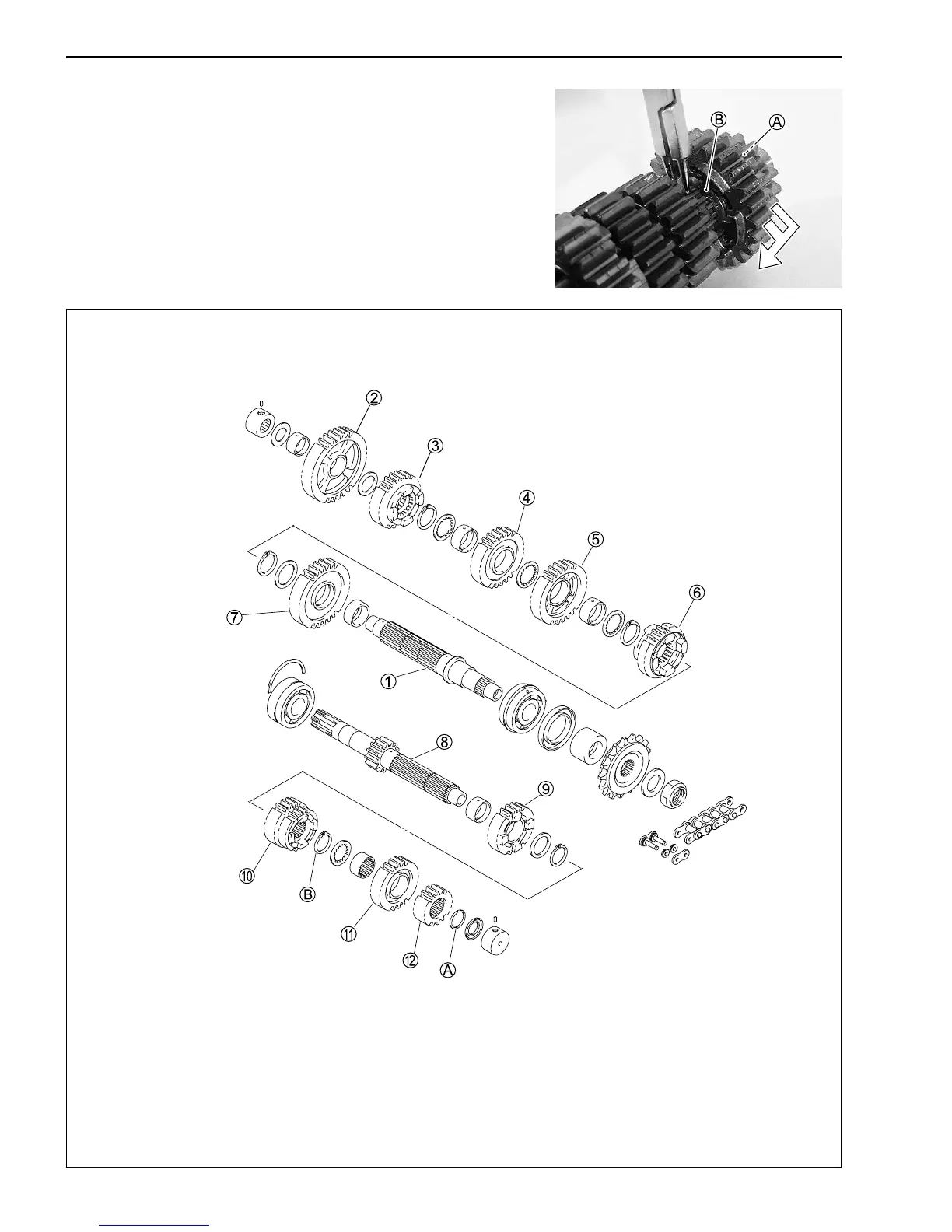

• Disassemble the countershaft and driveshaft.
Pay attention to the following points:
\ 09900-06104: Snap ring pliers
• Slide the 6th (TOP) drive gear circlip B from its groove towards
the 3rd/4th drive gears.
• Slide the 2nd drive gear towards the 6th (TOP) drive gear, then
remove the 2nd drive gear circlip A.
1 Driveshaft
2 1st driven gear
3 5th driven gear
4 4th driven gear
5 3rd driven gear
6 6th driven gear
7 2nd driven gear
8 Countershaft / 1st drive gear
9 5th drive gear
0 3rd/4th drive gear
A 6th drive gear
B 2nd drive gear
