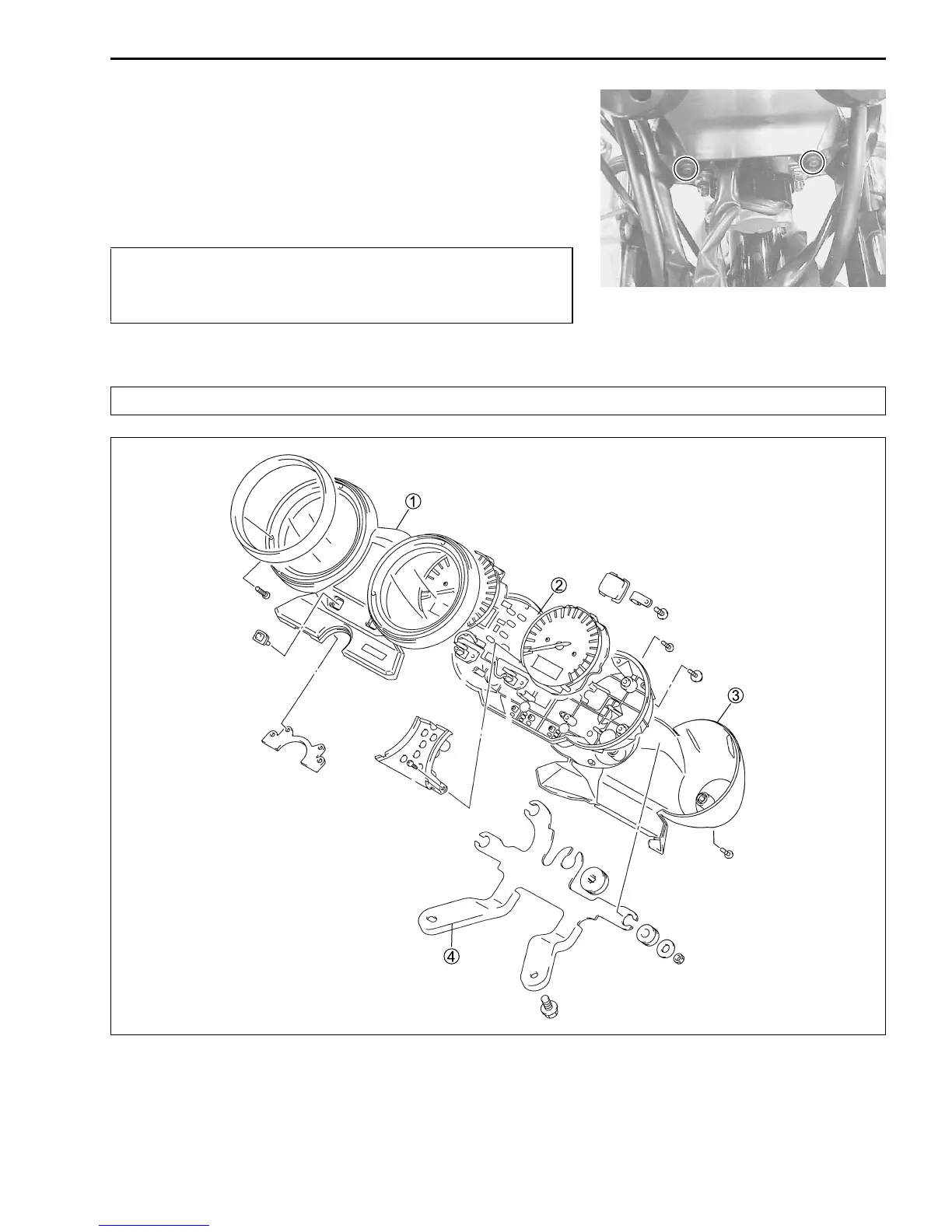

ELECTRICAL SYSTEM 7-23
COMBINATION METER
REMOVAL AND DISASSEMBLY
• Remove the headlight. (6-24)
• Remove the headlight housing.
• Remove the combination meter.

When disconnecting and connecting the combination
meter coupler, make sure to turn OFF the ignition switch,
or electronic parts may get damaged.
• Disassemble the combination meter as follows.

Do not attempt to disassemble the combination meter unit 2.
1 Combination meter cover
2 Combination meter unit
3 Combination meter case
4 Combination meter bracket
To Next Page
