6-54 CHASSIS
• Pull out the dust boot 4 and remove the circlip 5.
\ 09900-06108: Snap ring pliers

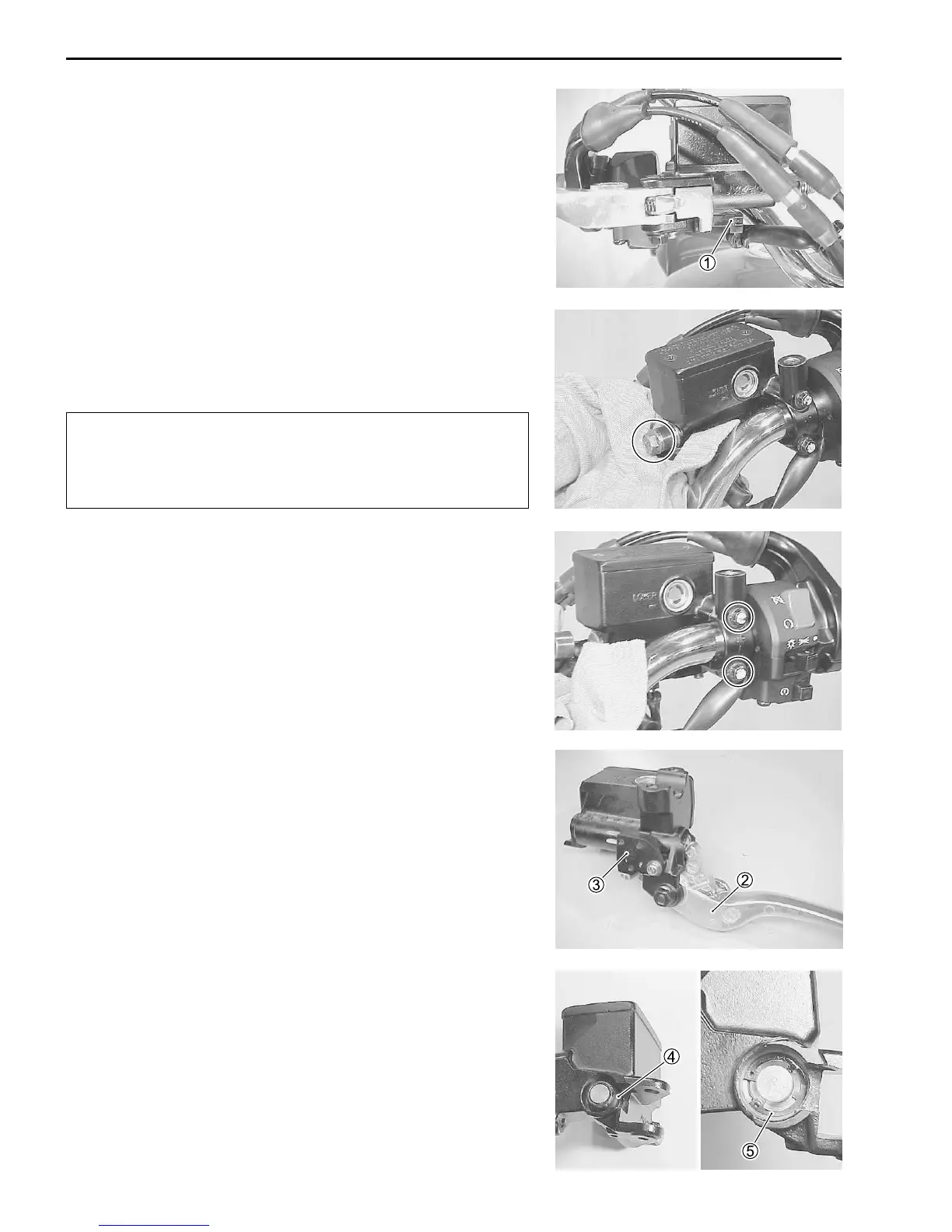

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Drain the brake fluid. (6-50)
• Remove the rear view mirror.
• Disconnect the front brake light switch lead wire coupler 1.
• Place a rag underneath the union bolt on the master cylinder to
catch any spilt brake fluid. Remove the brake hose union bolt
and disconnect the brake hose.

Immediately and completely wipe off any brake fluid con-
tacting any part of the motorcycle. The fluid reacts chemi-
cally with paint, plastics and rubber materials, etc. and
will damage them severely.
• Remove the brake lever 2 and brake switch 3.
• Remove the master cylinder by removing the master cylinder
mounting bolts.
To Next Page
