ELECTRICAL SYSTEM 7-29
RELAYS

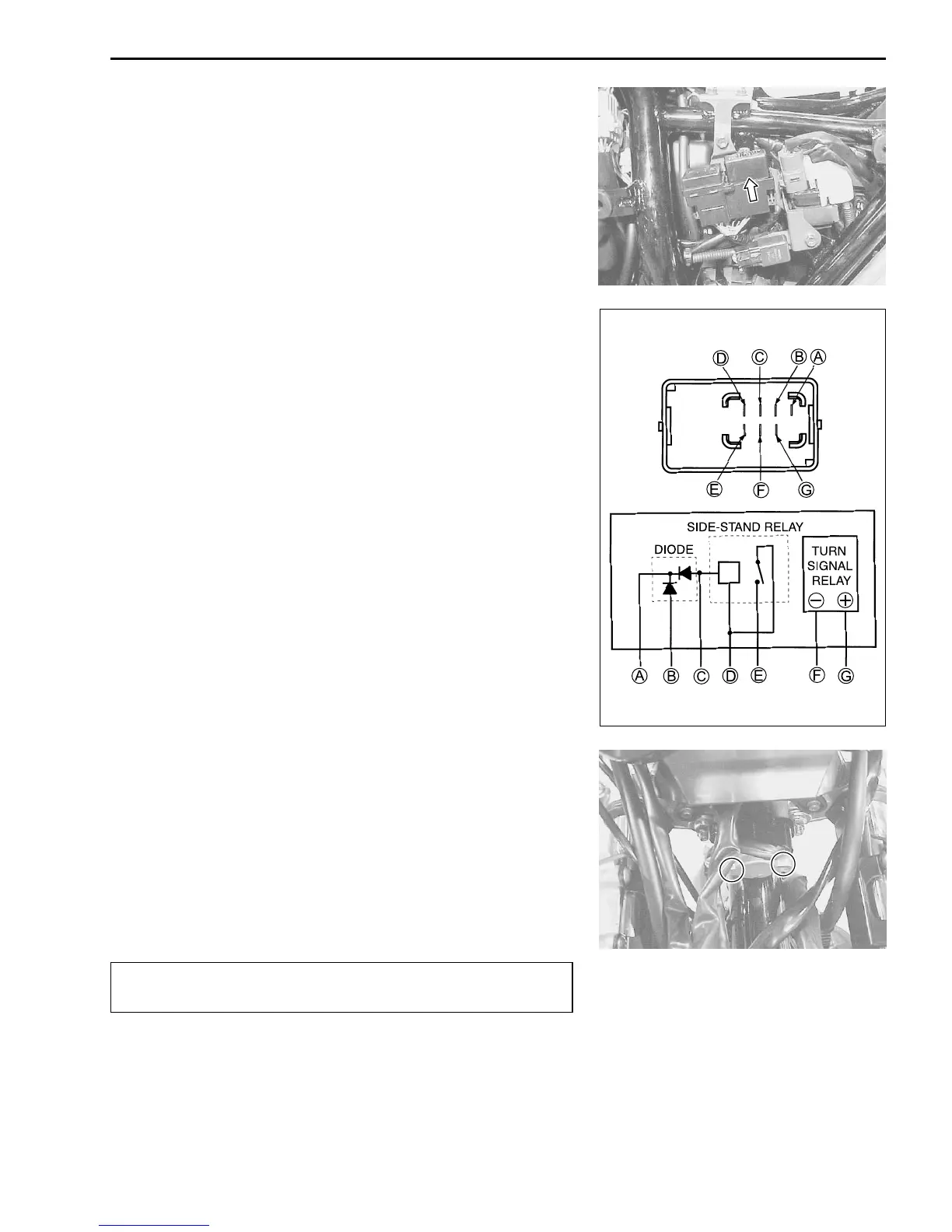

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay is composed of the turn signal
relay, side-stand relay and diode.
INSPECTION
Before removing the turn signal/side-stand relay, check the op-
eration of the turn signal light.
If the turn signal light does not illuminate, inspect the bulb, turn
signal switch and circuit connection.
If the bulb, turn signal switch and circuit connection are OK, the
turn signal relay may be faulty; therefore, replace the turn signal/
side-stand relay with a new one.
NOTE:
* Make sure that the battery is fully charged.
* Refer to the page 7-17 for the side-stand relay and diode in-
spection.
SWITCHES
IGNITION SWITCH REMOVAL
• Remove the headlight housing. (6-24)
• Remove the ignition switch mounting bolts using the special
tools.
\ 09930-11920: Torx bit JT40H
09930-11940: Bit holder
When reusing the ignition switch bolt, clean thread and
apply the THREAD LOCK SUPER “1322”
H99000-32110: THREAD LOCK SUPER “1322”
STARTER RELAY
7-14
FUEL PUMP RELAY
4-47
