CHASSIS 6-7
INSPECTION AND DISASSEMBLY
TIRE (6-70)
• Remove the brake disc.
BRAKE DISC (6-53)
REMOVAL

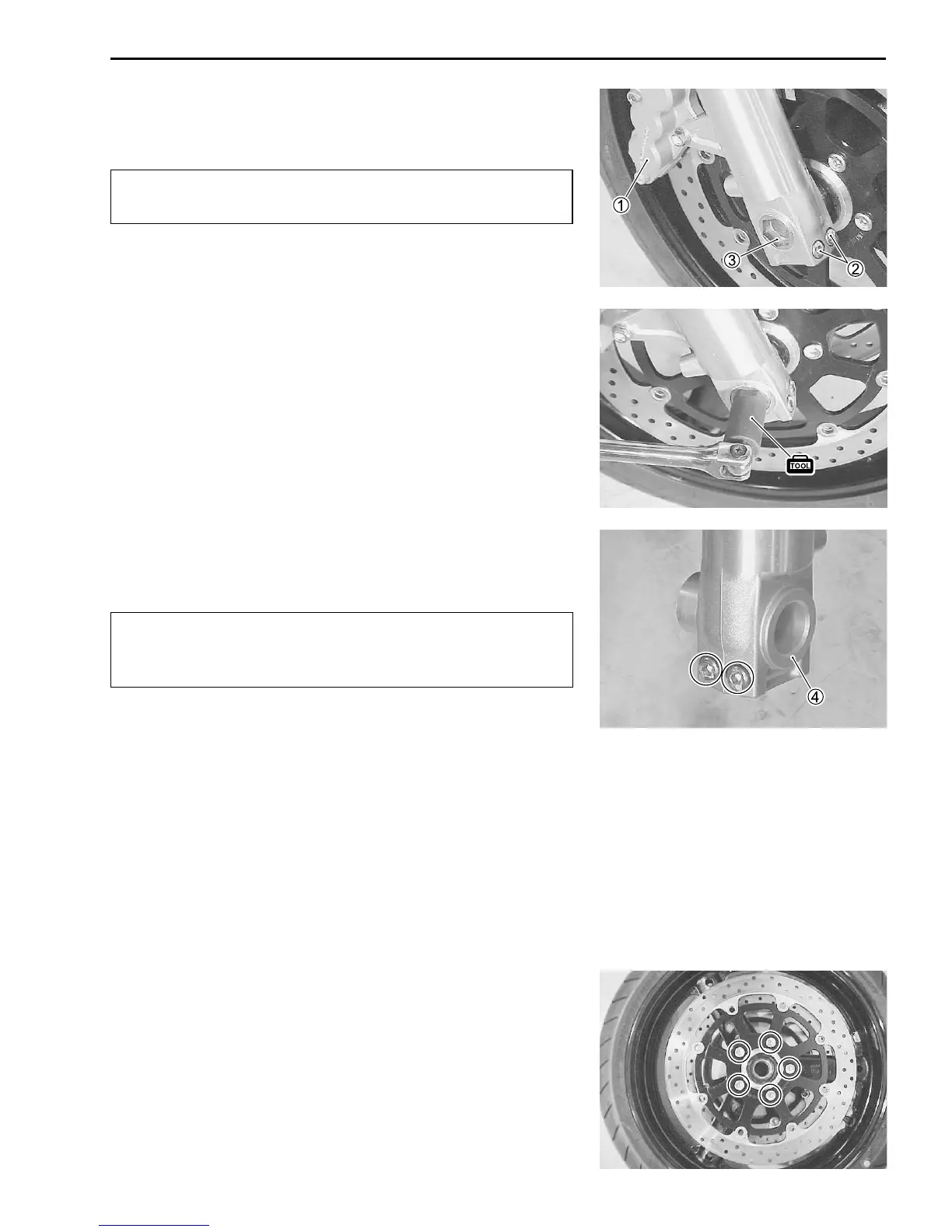

• Remove the brake calipers 1.

Do not operate the brake lever while removing the cali-
pers.
• Loosen two axle pinch bolts 2 on the right front fork leg.
• Loosen the front axle 3.
\ 09900-18740: Hexagon wrench 24 mm
• Raise the front wheel off the ground and support the motor-
cycle with a jack or a wooden block.

Do not work by using side stand. Do not support the
motorcycle with exhaust pipe. Make sure that the motor-
cycle is supported securely.
• Remove the front axle and the front wheel.
NOTE:
After removing the front wheel, fit the calipers temporarily to the
original positions.
• Loosen two axle pinch bolts on the left front fork leg and re-
move the spacer nut 4.
To Next Page
