GSX1400K3 (’03-MODEL) 9-5

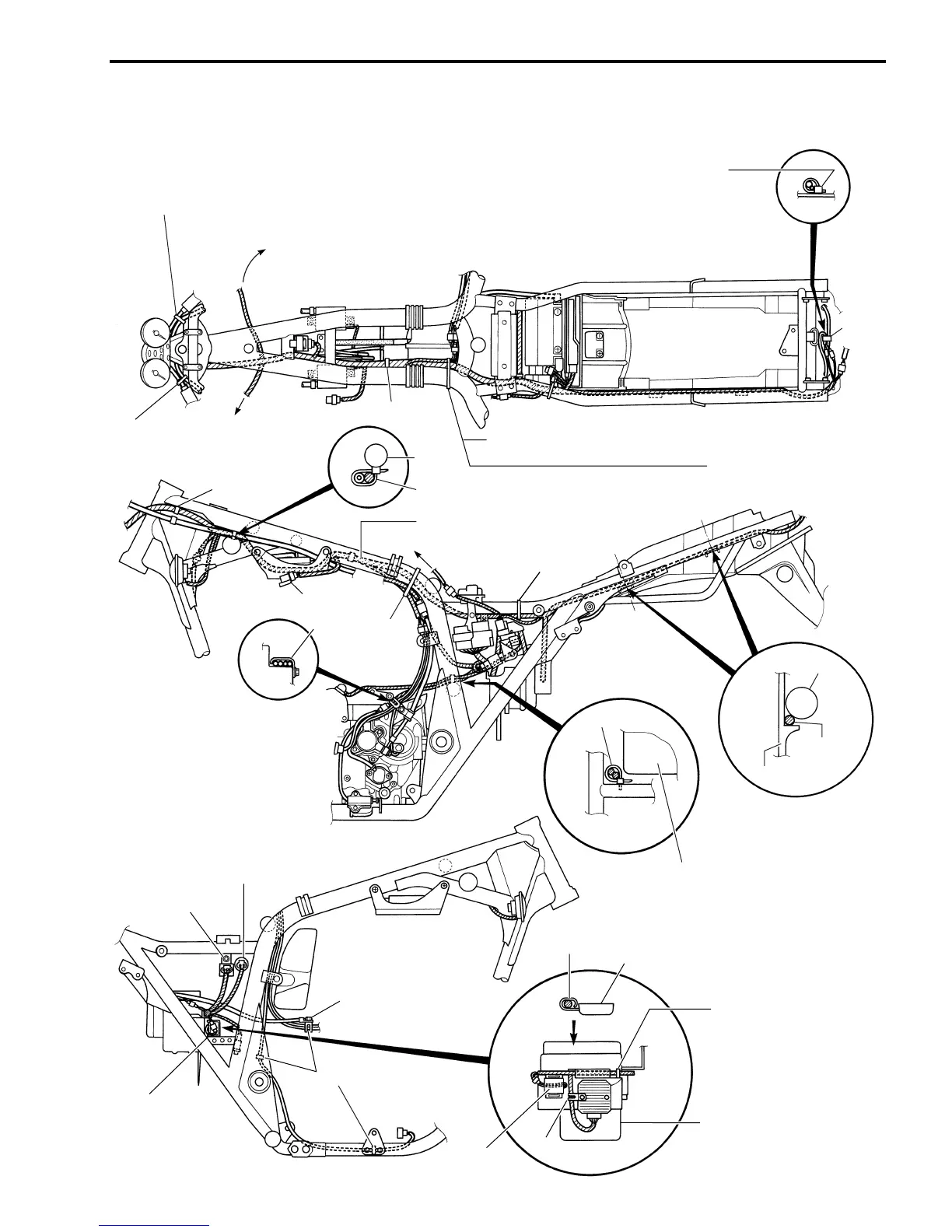

WIRE HARNESS ROUTING
Clamp
Clamp
(After binding
the lead wires,
cut the projection
of the clamp.)
Clamp
(After binding the lead wires,
cut the projection of the clamp.)
Clamp
Clamp
(After binding the lead wires,
cut the projection of the clamp.)
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Clamp
Frame
Fuel injector lead wires/wiring harness
To the right horn
To the left horn
CMP sensor
Frame
Wiring
harness
Rear fender
Regulator/Rectifier
Regulator/Rectifier
Engine ground
IAT sensor
AP sensor
TO sensor
Clamp
Clamp
Clamp
Clamp
Clamp
TO sensor
Air cleaner box
To the fuel level gauge
Main wiring harness
