6-12 CHASSIS

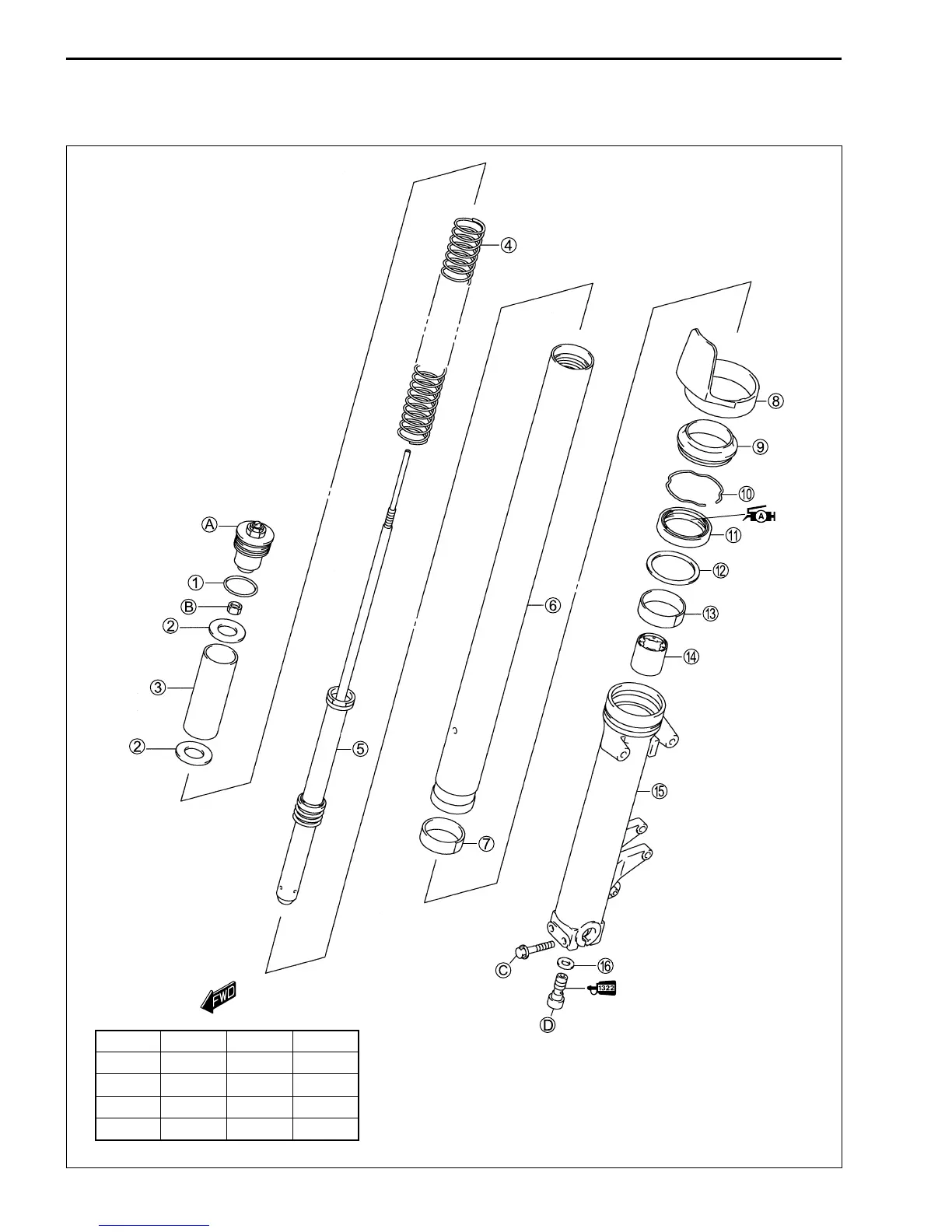

FRONT FORK
CONSTRUCTION
1 O-ring
2 Washer
3 Spacer
4 Spring
5 Inner rod/damper rod (cartridge)
6 Inner tube
7 Slide metal
8 Protecter
9 Dust seal
0 Oil seal stopper ring
A Oil seal
B Oil seal retainer
C Guide metal
D Oil lock piece
E Outer tube
F Gasket
A Front fork cap bolt
B Inner rod lock nut
C Front axle pinch bolt
D Damper rod bolt
"
ITEM N
.
m kgf
.
m lb-ft
A 23 2.3 16.5
B 15 1.5 11.0
C 23 2.3 16.5
D 40 4.0 29.0
