3 Central locking

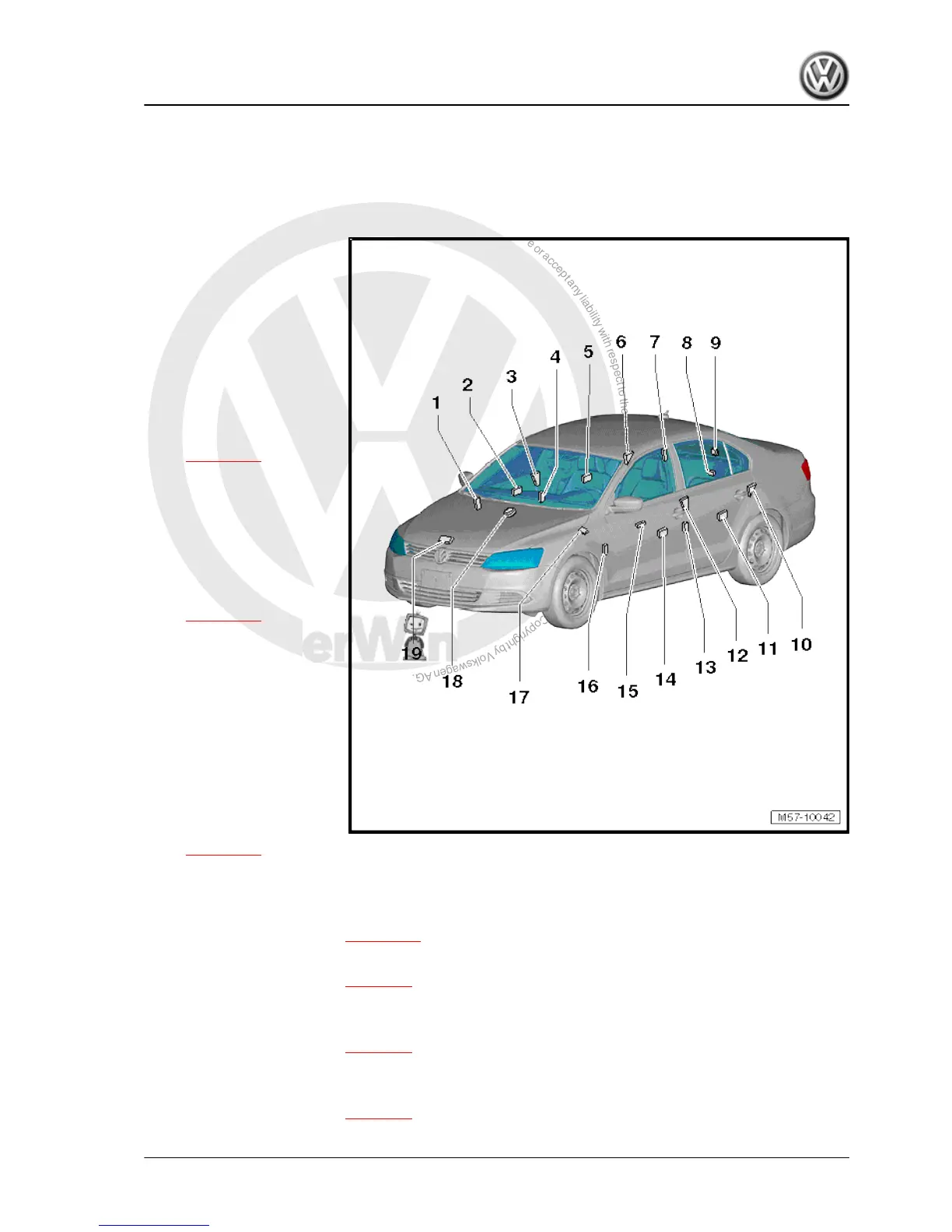

3.1 Fitting location overview - central locking components
1 - Coupling station
❑ Fitting location: left A-
pillar
❑ To separate connec‐
tions, release bellows at
pillar.
2 - Front passenger door con‐
trol unit -J387-
❑ Integrated in window
regulator motor, front
passenger side -V148-
❑ Removing and installing
⇒ page 212
3 - Door lock on front passen‐
ger side
❑ Door lock is secured to
inner part of door.
❑ Electric central locking
is integrated into door
lock.
❑ Removing and installing
⇒ page 100
4 - Coupling station
❑ Fitting location: right B-
pillar.
❑ To separate connec‐
tions, release bellows at
pillar.
5 - Rear right door control unit
-J389-
❑ Integrated in rear right
window regulator motor
-V27-
❑ Removing and installing
⇒ page 225
6 - Rear right door lock
❑ Door lock is secured to inner part of door.
❑ Electric central locking is integrated into door lock.
❑ Removing and installing ⇒ page 140
7 - Tank filler flap locking motor -V155-
❑ Removing and installing ⇒ page 73
8 - Rear lid lock
❑ Fitting location: on rear lid
❑ Removing and installing ⇒ page 66
9 - Rear lid handle release button -E234-
❑ Fitting location: on rear lid
❑ Removing and installing ⇒ page 65
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
3. Central locking 115
