1.15 Removing and installing carrier unit
1.15.1 Removing
Carry out following work:
– Lower moulded headliner (do not remove from vehicle) ⇒
General body repairs, interior; Rep. gr. 70 ; Roof trims .

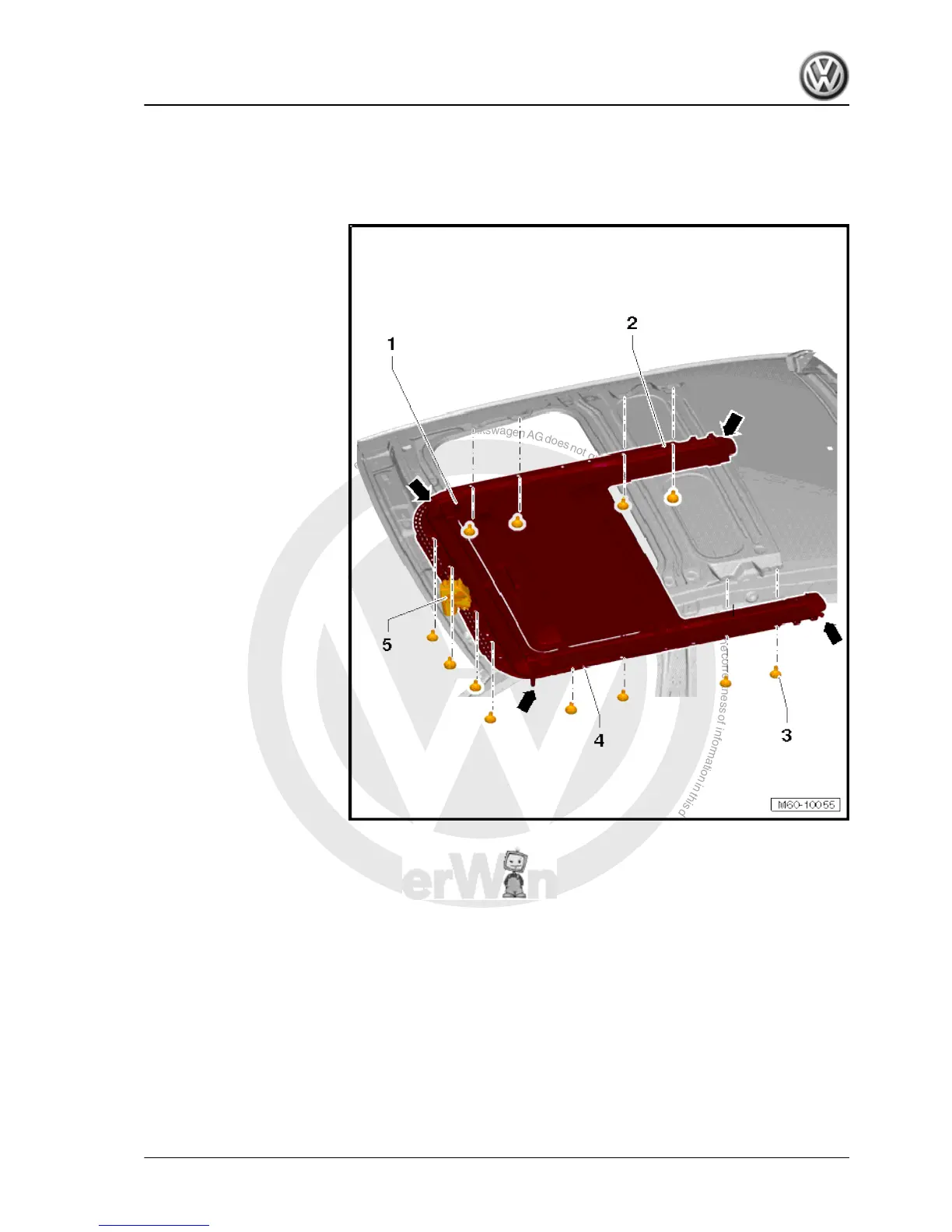

– Pull water drainage hoses off nozzles -arrows- of carrier unit
-1-.
– Detach connector -5- from drive for sliding/tilting roof.
Further dismantling requires the assistance of a second mechan‐
ic.
– Undo bolts -3- and lift carrier unit -1- out of vehicle with help
of second mechanic.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
1. Sunroof with glass panel 165
