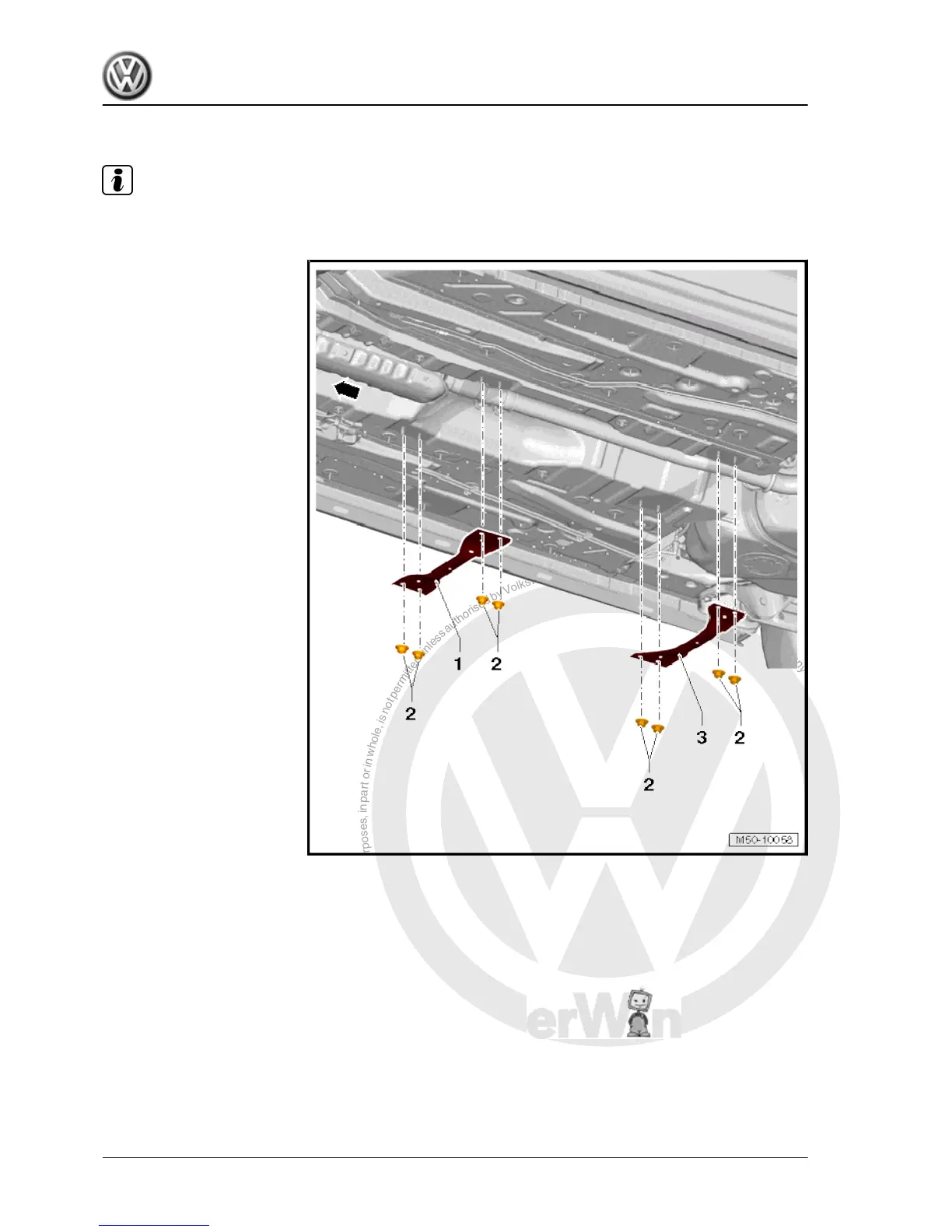

7.2 Assembly overview - tunnel cross-piece
Note
-Arrow- points in direction of normal travel.
1 - Front tunnel cross-piece
❑ Removing:
– Unscrew hexagon nuts
-2- (2 on each side).
2 - Hexagon nut
❑ Qty. 4 per tunnel cross-
piece
❑ Specified torque: 20 Nm
3 - Rear tunnel cross-piece
❑ Removing:
– Unscrew hexagon nuts
-2- (2 on each side).
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
30 Rep. gr.50 - Body - front
