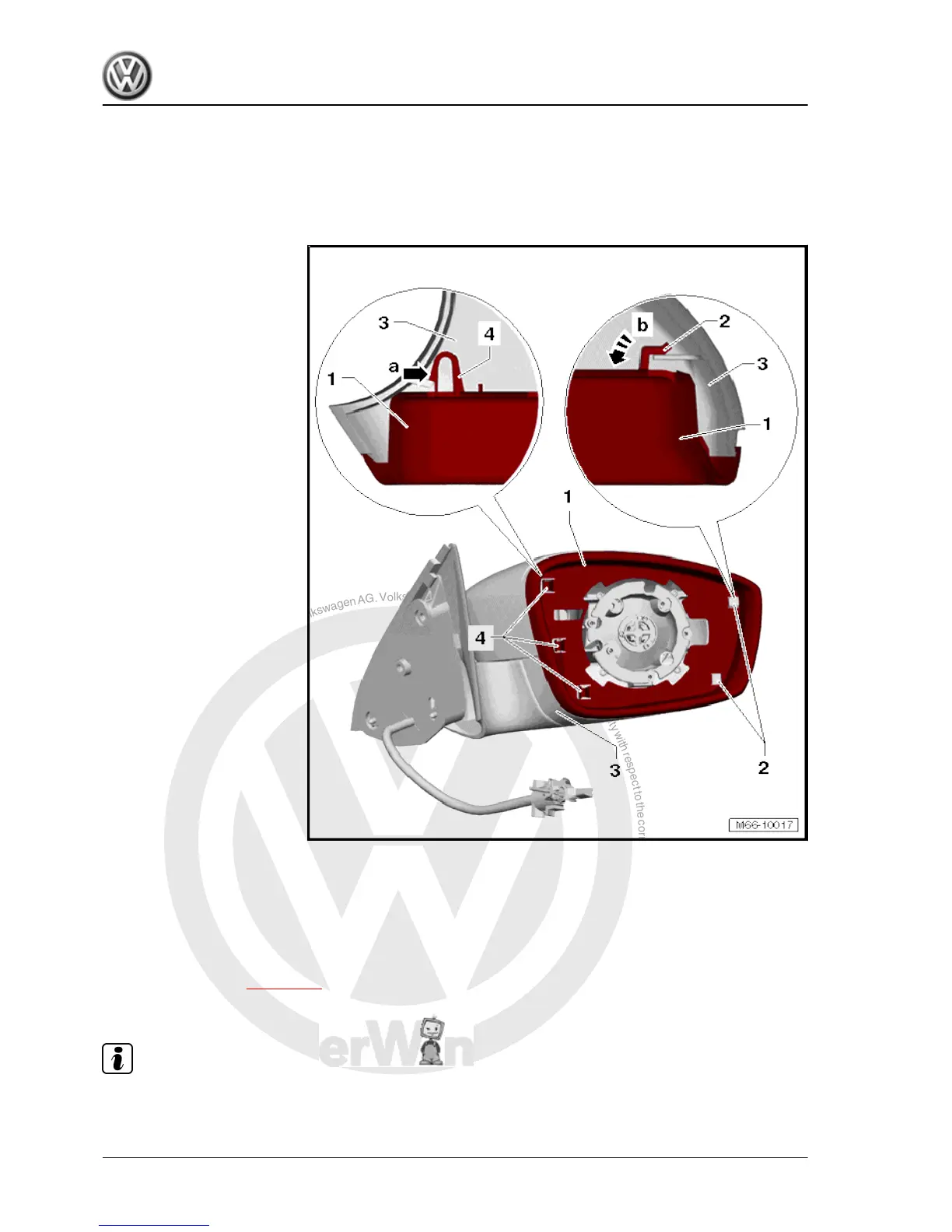

– Disengage locking hook -4- on trim -1- -arrow a-.
– Swivel trim -1- off retaining lugs -2- -arrow b-.
– Remove trim -1- from mirror mounting -3-.
2.5.2 Installing
Carry out following work:
– Swivel trim -1- behind retaining lugs -2- on mirror mounting
-3-.
– Press trim -1- onto mirror mounting -3- until locking hooks
-4- engage audibly.
– Install mirror glass ⇒ page 245 .
2.6 Removing and installing mirror housing
Note
Removal and installation is described for the right exterior mirror
housing only. Removal and installation of the left exterior mirror
housing are analogous.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
248 Rep. gr.66 - Exterior equipment
