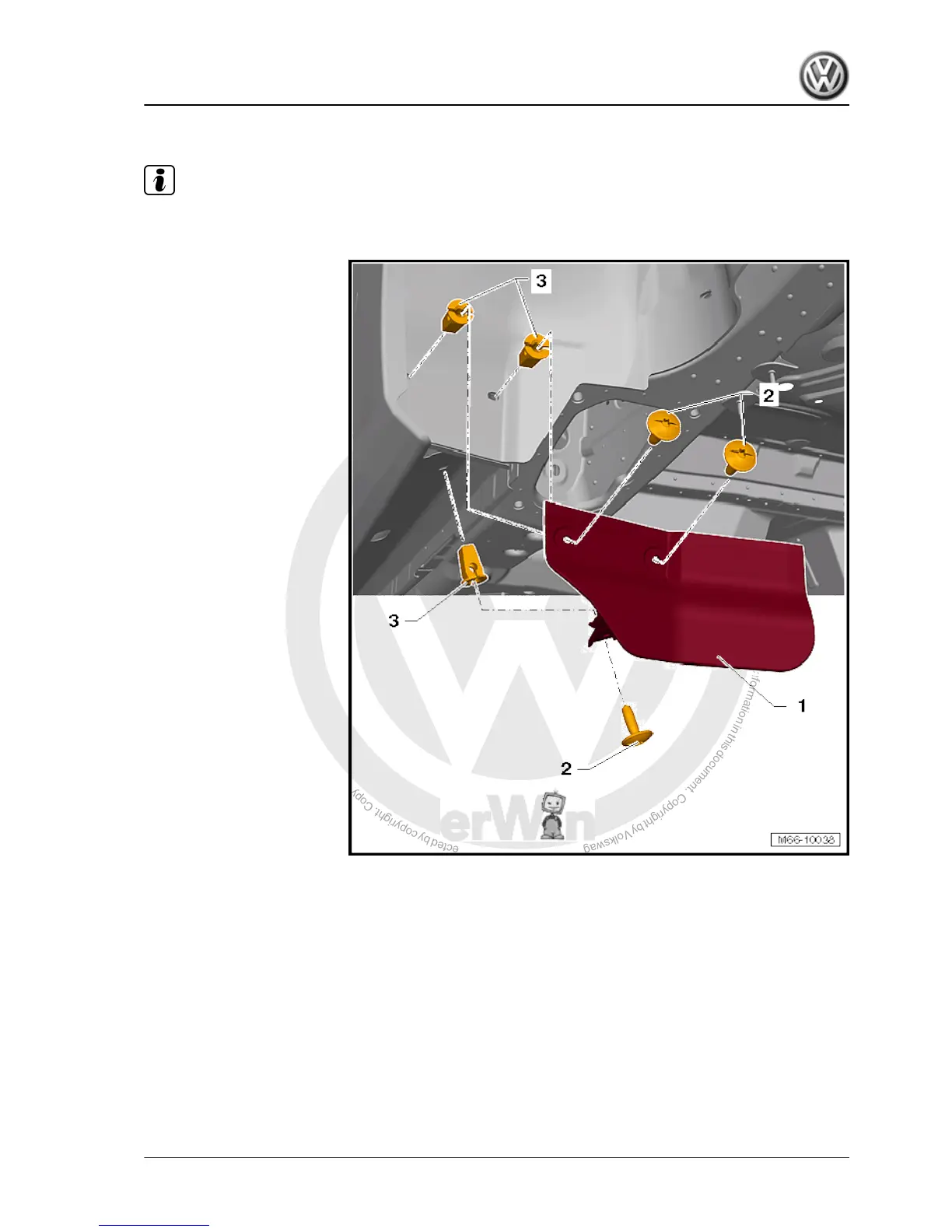

5.2 Assembly overview - sill panel cover
Note
Only the left side is shown. The right side is similar.
1 - Side member cover
❑ Removing
– Unscrew bolts -2- and
remove sill panel cover.
❑ Installing
• Check spreader nuts -3- for
damage and renew if nec‐
essary.
– Locate sill cover, screw
bolts -2- in and tighten.
2 - Bolt
❑ Qty. 3.
❑ Specified torque: 2 Nm
3 - Expanding nut
❑ Qty. 3.
❑ Renew if damaged
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
5. Mouldings and trims 279
