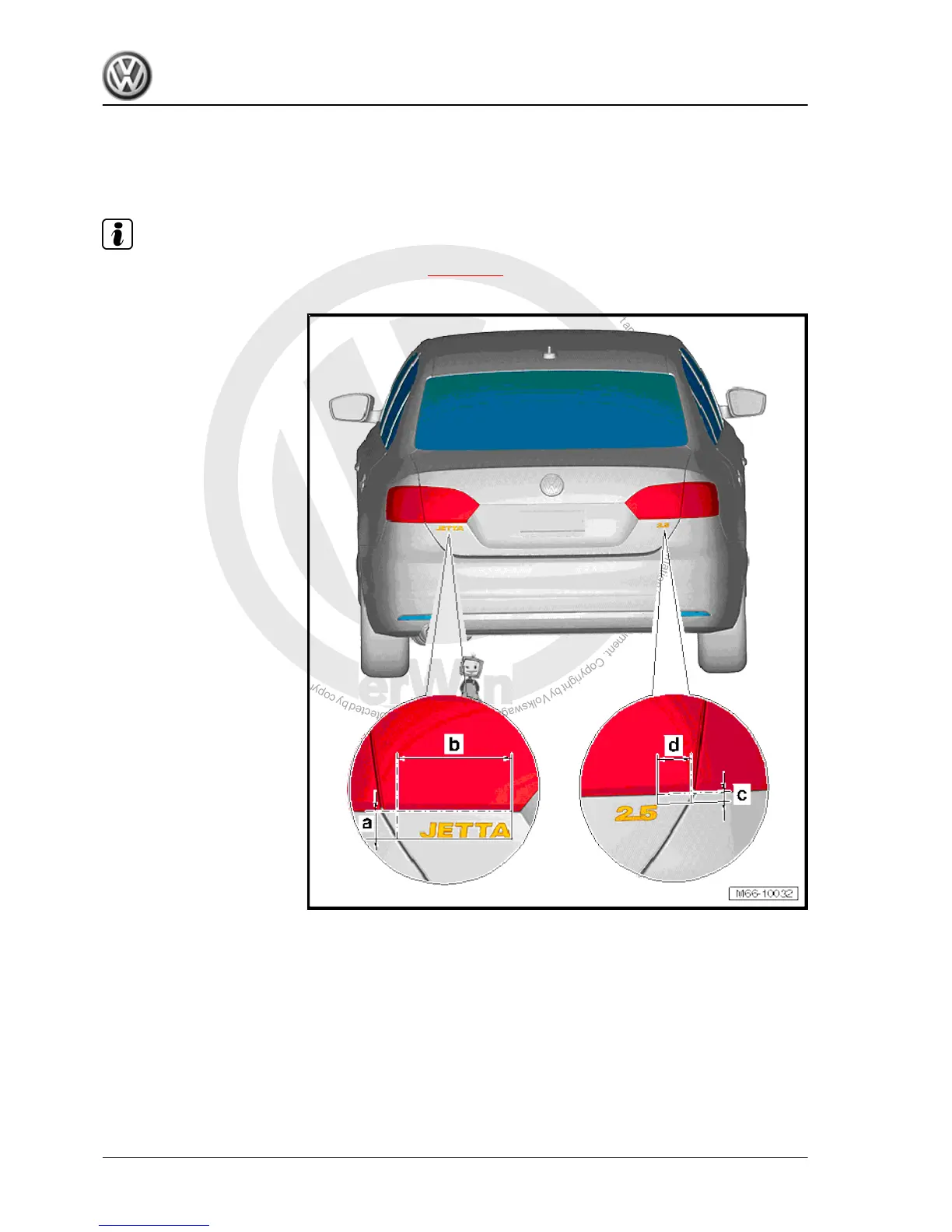

6.3 Lettering dimensions
6.3.1 Lettering for model name and engine designation
Note
When fitting the lettering, observe the fitting notes ⇒ page 287 .
Dimension -a- = 32 mm
From lower edge of tail light to lower edge of lettering
Dimension -b- = 155 mm
From edge of rear lid to inner edge of lettering
Dimension -c- = 14 mm
From lower edge of tail light to upper edge of lettering
Dimension -d- = 43 mm
From edge of rear lid to outer edge of lettering
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
288 Rep. gr.66 - Exterior equipment
