1.3 Removing and installing bonnet
1.3.1 Removing
Carry out following work:

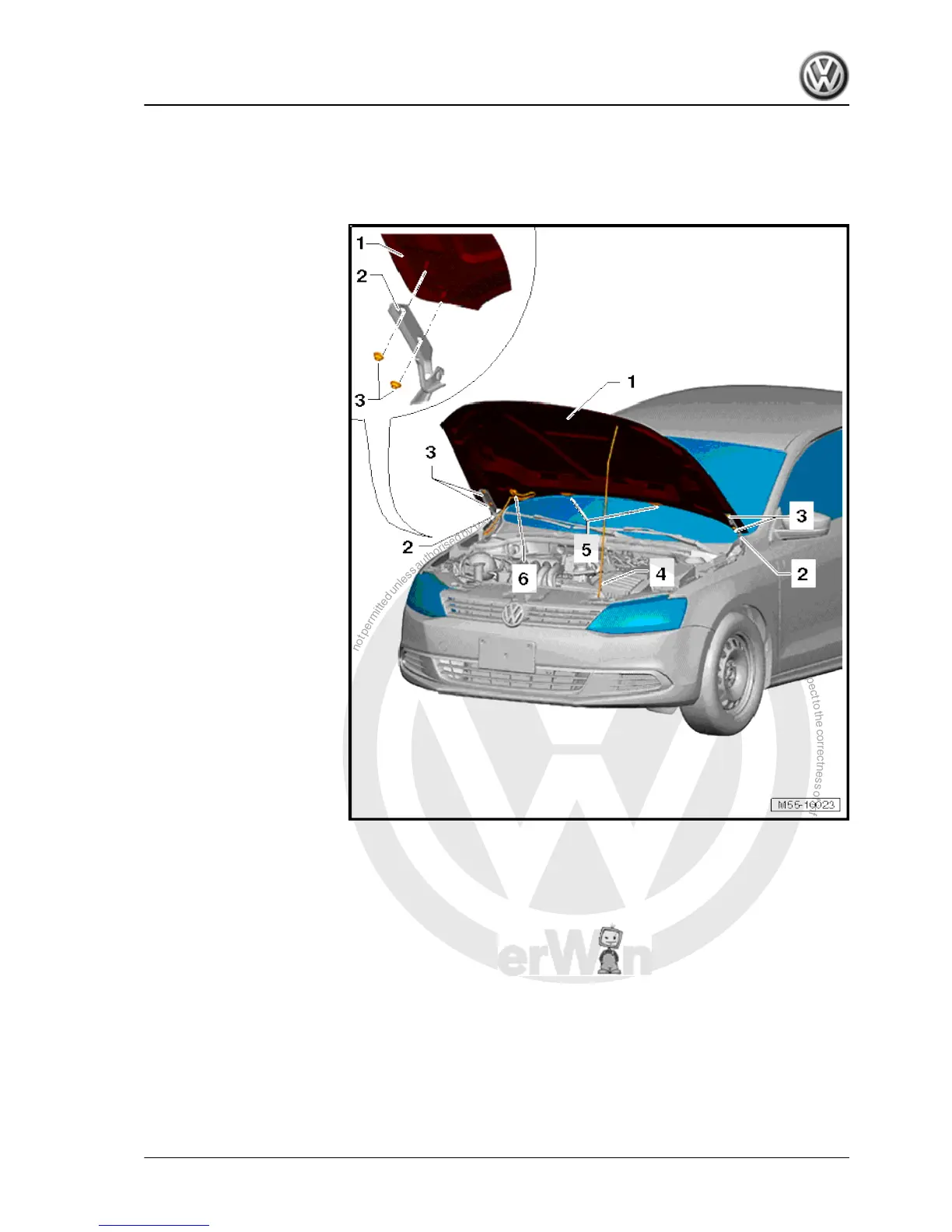

– Remove spray jets -5- ⇒ Electrical system; Rep. gr. 92 ; Win‐
dow washer system; Removing and installing spray jets for
window washer system .
– Unclip line -6- from bonnet -1-.
– Pull line -6- out of opening in bonnet -1-.
– Loosen nuts -3- on left and right hinges -2- (do not remove
completely).
Further dismantling requires the assistance of a second mechan‐
ic.
– Remove support rod -4- from bonnet.
– Now, unscrew and remove nuts -3- and lift bonnet -1- out of
hinges -2-.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
1. Bonnet 33
