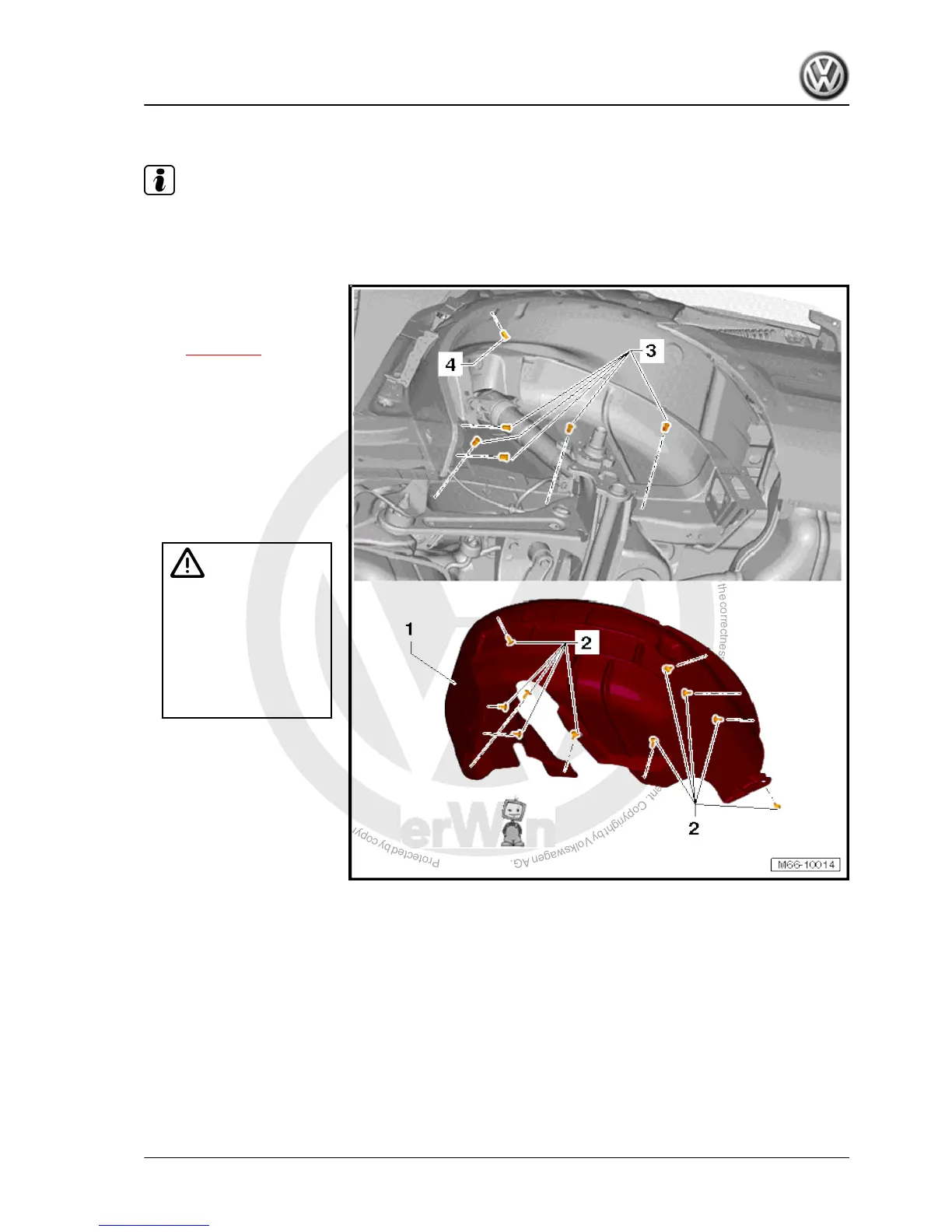

1.4 Assembly overview - rear wheel housing liner
Note
♦ Minor differences may be encountered in respect of wheel housing liner, depending on vehicle model.
♦ Only the left side is shown. The right side is similar.
1 - Wheel housing liner
❑ Material PP/EPDM.
❑ Removing and installing
⇒ page 240
2 - Bolt
❑ Qty. 10.
❑ Specified torque: 2 Nm
3 - Expanding nut
❑ Qty. 5.
❑ Renew if damaged
4 - Expanding nut
❑ Gas-tight.
WARNING
♦Check gas-tight spreader
nuts for damage and re‐
new if necessary.
♦The spreader nut seals
the interior against ex‐
haust gases and must al‐
ways be renewed in the
event of damage.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
1. Wheel housing liner 239
