Holes do not exist
– Centre the number plate carrier -3- on front bumper cover
-2- in relation to VW emblem -1-.
– Set drill depth stop to 12 mm and drill holes.
– Position number plate carrier -3- on front bumper cover -2- and
press clips -4- in.

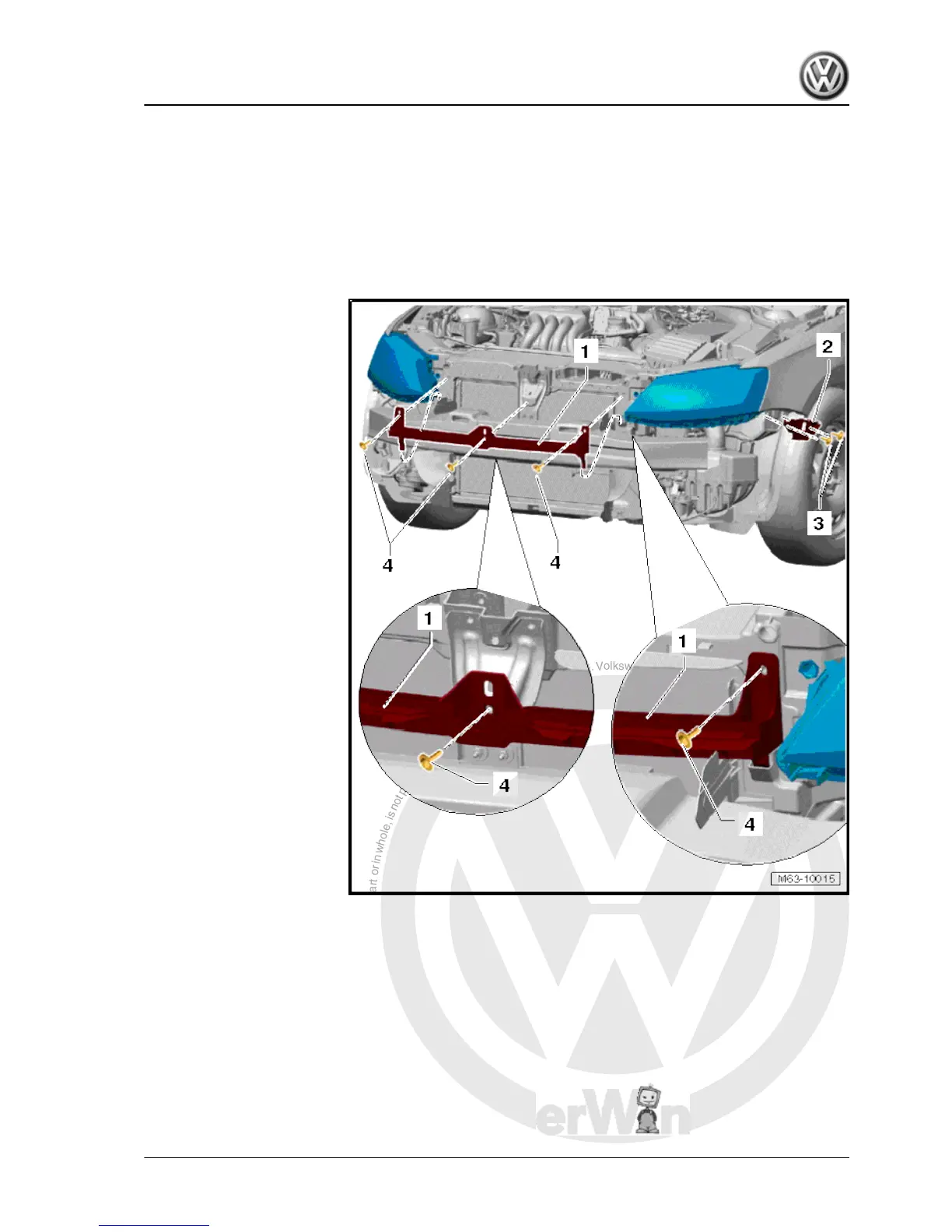

1.8 Assembly overview - guides for front bumper cover
1 - Centre guide
2 - Guide section at side
❑ Left and right.
3 - Bolt
❑ Qty. 2 on each side.
❑ Specified torque: 2 Nm
4 - Bolt
❑ Qty. 3.
❑ Specified torque: 8 Nm
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
1. Front bumper cover 179
