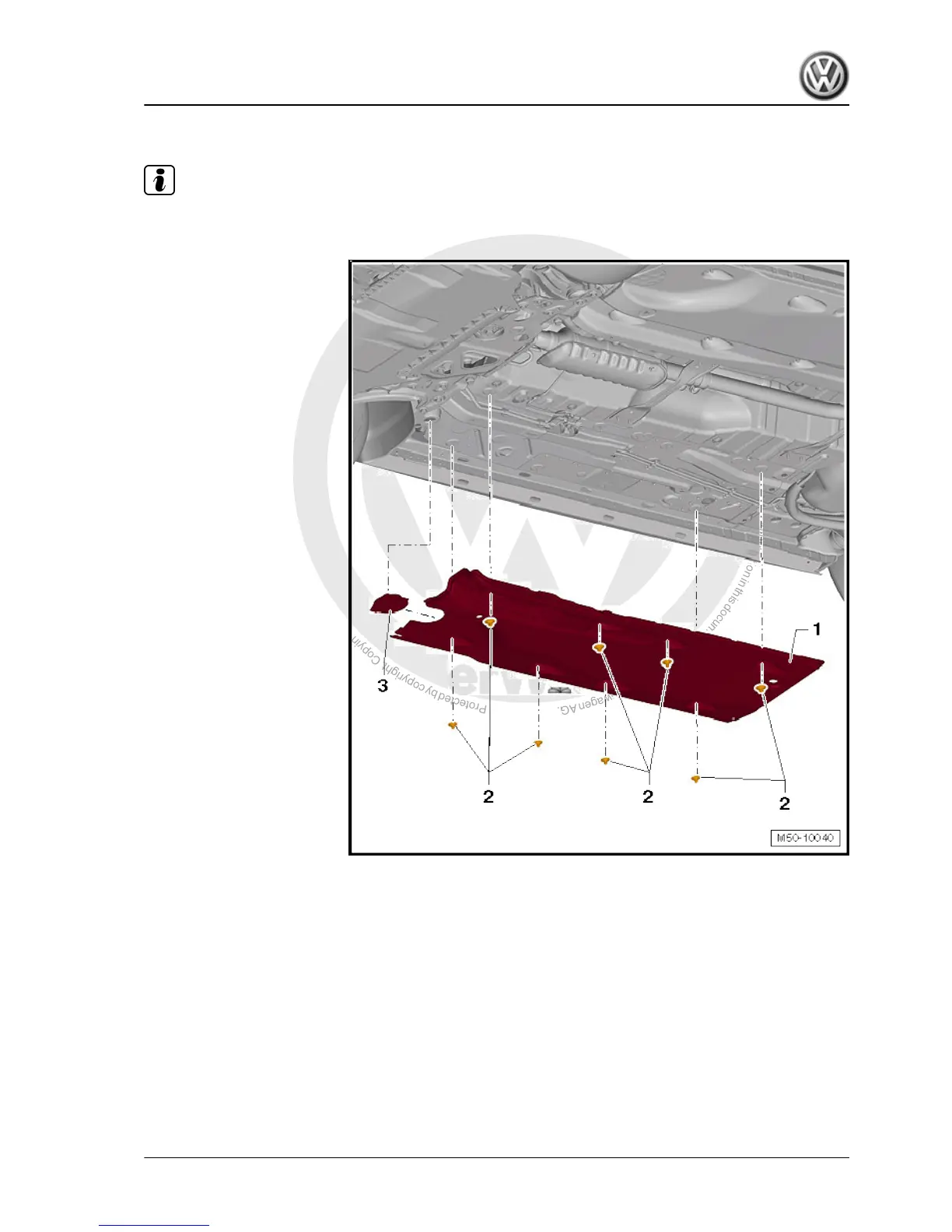

5.2 Assembly overview - underbody panel
Note
The right side is shown. The left side is similar.
1 - Underbody cladding
❑ Removing:
– Unscrew hexagon nuts
-2-.
– Pull off underbody trim
from cover -3- back‐
wards and remove un‐
derbody trim.
2 - Nut
❑ Qty. 8.
❑ Specified torque: 2 Nm.
❑ Held in place by retain‐
ing lugs on underbody
trim
3 - Cover
❑ Removing:
– Pull cover out of mount‐
ing
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
5. Underbody cladding 25
