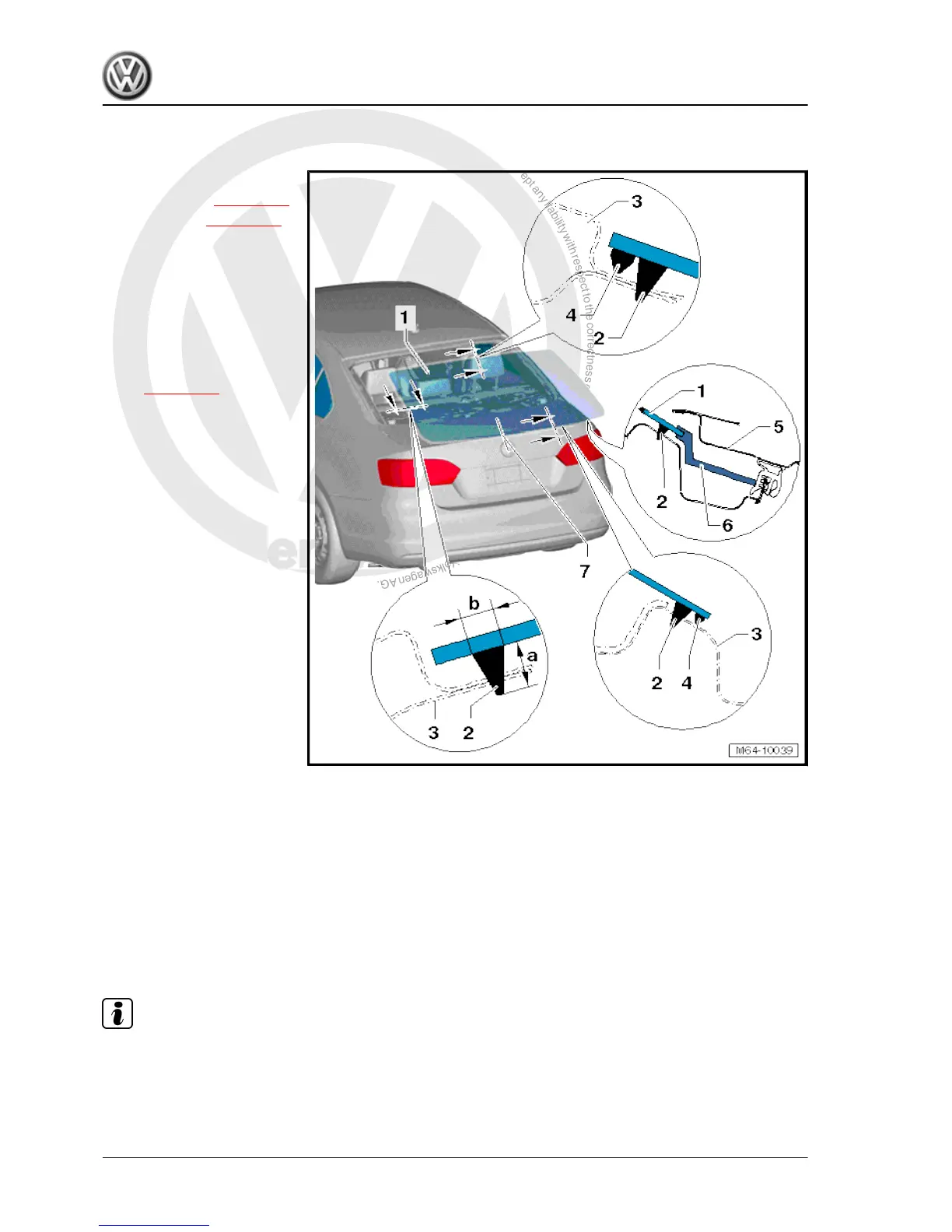

1.7 Assembly overview - rear window
1 - Rear window
❑ Removing ⇒ page 198
❑ Installing ⇒ page 200 .
2 - PUR adhesive sealant
❑ Cross section of bead:
-width b- = 6.5 mm,
-height a- = 10 mm (in‐
cluding precoating, re‐
sidual material on win‐
dow glass and window
flange).
❑ Minimum curing period
⇒ page 203 .
3 - Body flange
4 - Spacer
5 - Rear lid
6 - Windscreen adjuster
7 - Adhesive bead butt end
❑ The butt end of the ad‐
hesive bead should be
located here.
1.8 Removing undamaged rear window
Carry out following work:
– Remove C-pillar upper trims on left and right ⇒ General body
repairs, interior; Rep. gr. 70 ; Pillars and side panel trims; Re‐
moving C-pillar trim .
– Remove rear shelf ⇒ General body repairs, interior; Rep. gr.
70 ; Pillar and side panel trims .
– Remove moulded headliner in area of rear window ⇒ General
body repairs, interior; Rep. gr. 70 ; Roof trims .
Note
If it is intended to re-use the windscreen, make sure that the
windscreen heating electrical connections are not damaged.
– Pull off connectors for rear window heating and window aerial.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
198 Rep. gr.64 - Glazing
