2.11.2 Installing
Carry out following work:
Install in reverse order of removal.
Specified torque for nuts: 6 Nm.
• Before closing rear lid, check function of lid release compo‐
nents.
2.12 Removing and installing lid lock
2.12.1 Removing
Note
If the rear lid does not open, it can be opened in an emergency
by reaching through the rear lid trim and actuating the emergency
release -4- ⇒ Operating Manual .
Carry out following work:
– Remove rear lid trim ⇒ General body repairs, interior; Rep.
gr. 70 ; Rear lid trim .

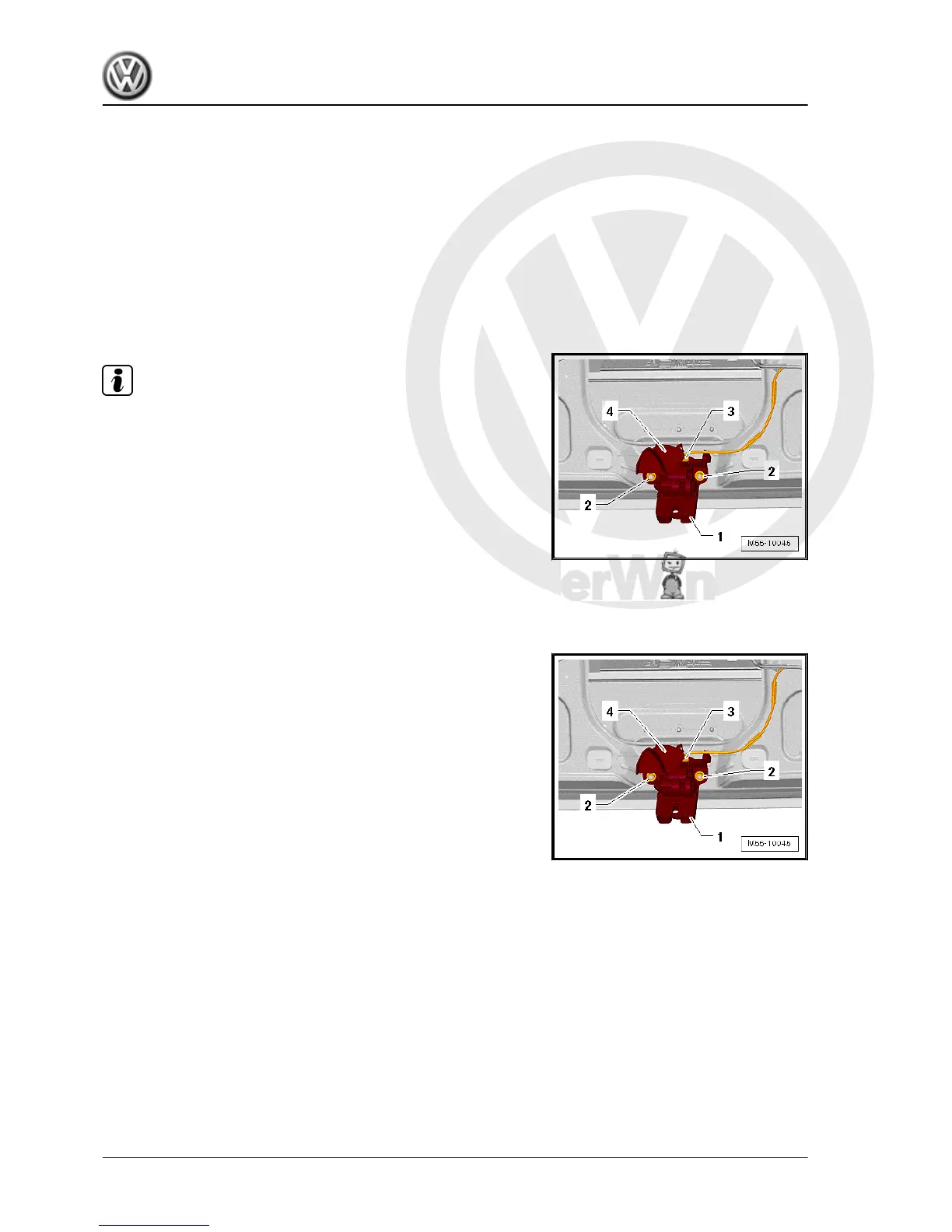

– Detach connector -3- from lid lock -1-.
– Unscrew nuts -2- and remove lid lock -1- from rear lid.
2.12.2 Installing
Carry out following work:
– Position lid lock -1- on rear lid and fit hexagon nuts -2-.
Specified torque for nuts -2-: 23 Nm
– Connect connector -3- to rear lid lock -1-.
– Install rear lid trim ⇒ General body repairs, interior; Rep. gr.
70 ; Rear lid trim .
• Before closing rear lid, check function of lid release compo‐
nents.
2.13 Rear lid seal
In the factory a sealant is applied to the rear lid seal, the seal is
fitted to the body flange and then rolled on.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
66 Rep. gr.55 - Bonnet, rear lid
