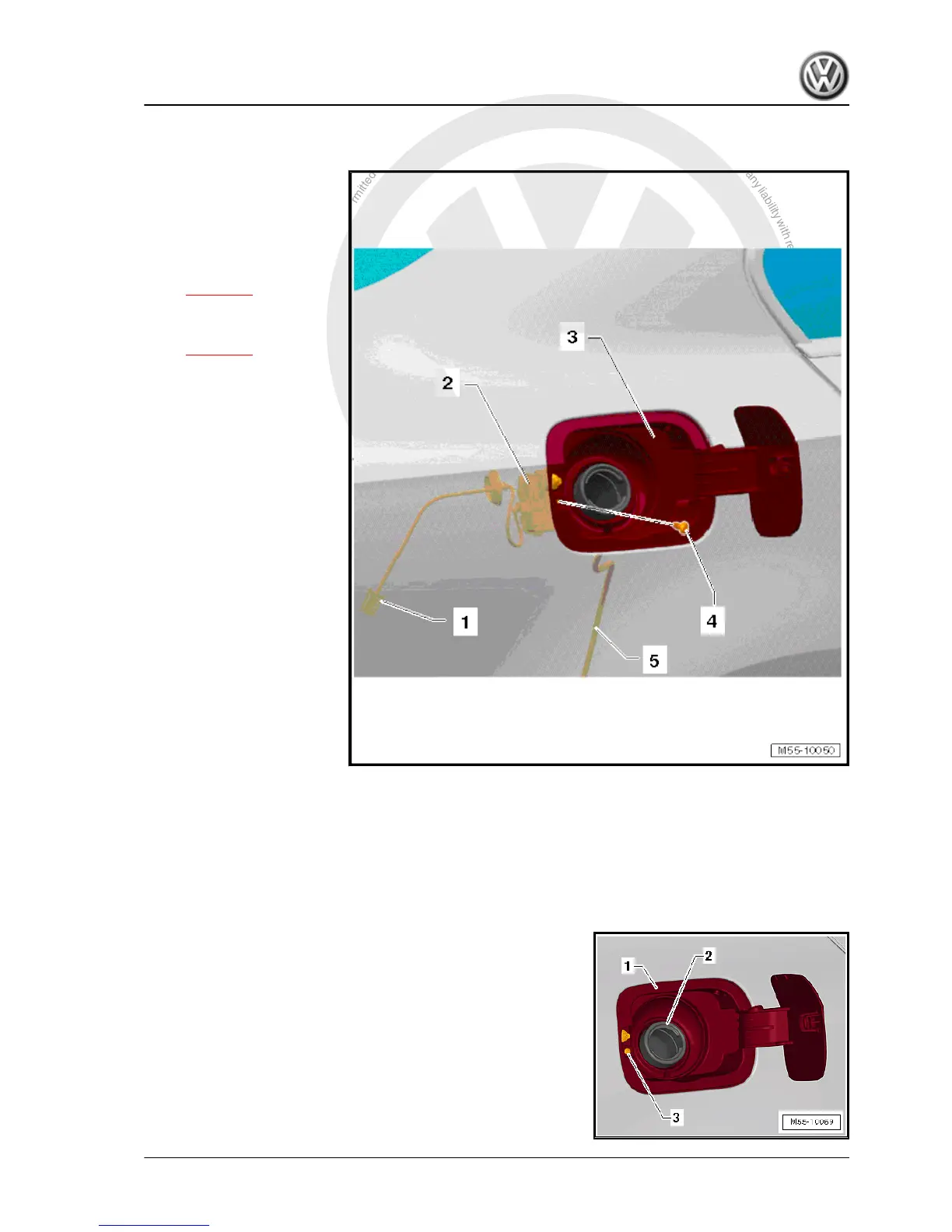

3.2 Assembly overview - tank flap unit
1 - Connector
❑ For tank filler flap lock‐
ing motor -V155-
2 - Tank filler flap locking motor
-V155-
❑ Removing and installing
⇒ page 73
3 - Tank flap unit
❑ Removing and installing
⇒ page 71
4 - Bolt
❑ Specified torque: 1.5
Nm
5 - Water drain hose
❑ Routed between wheel
housing and wheel
housing liner
3.3 Removing and installing tank flap unit
3.3.1 Removing
Carry out following work:
– Screw off tank cover.
– Peel rubber grommet of tank flap unit -1- off tank filler neck
-2-.
– Remove bolt -3-.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
3. Tank flap unit 71
