5.3 Rear right door underbody cladding
Note
Slight differences may be encountered on the rear right underbody trim depending on the vehicle model.

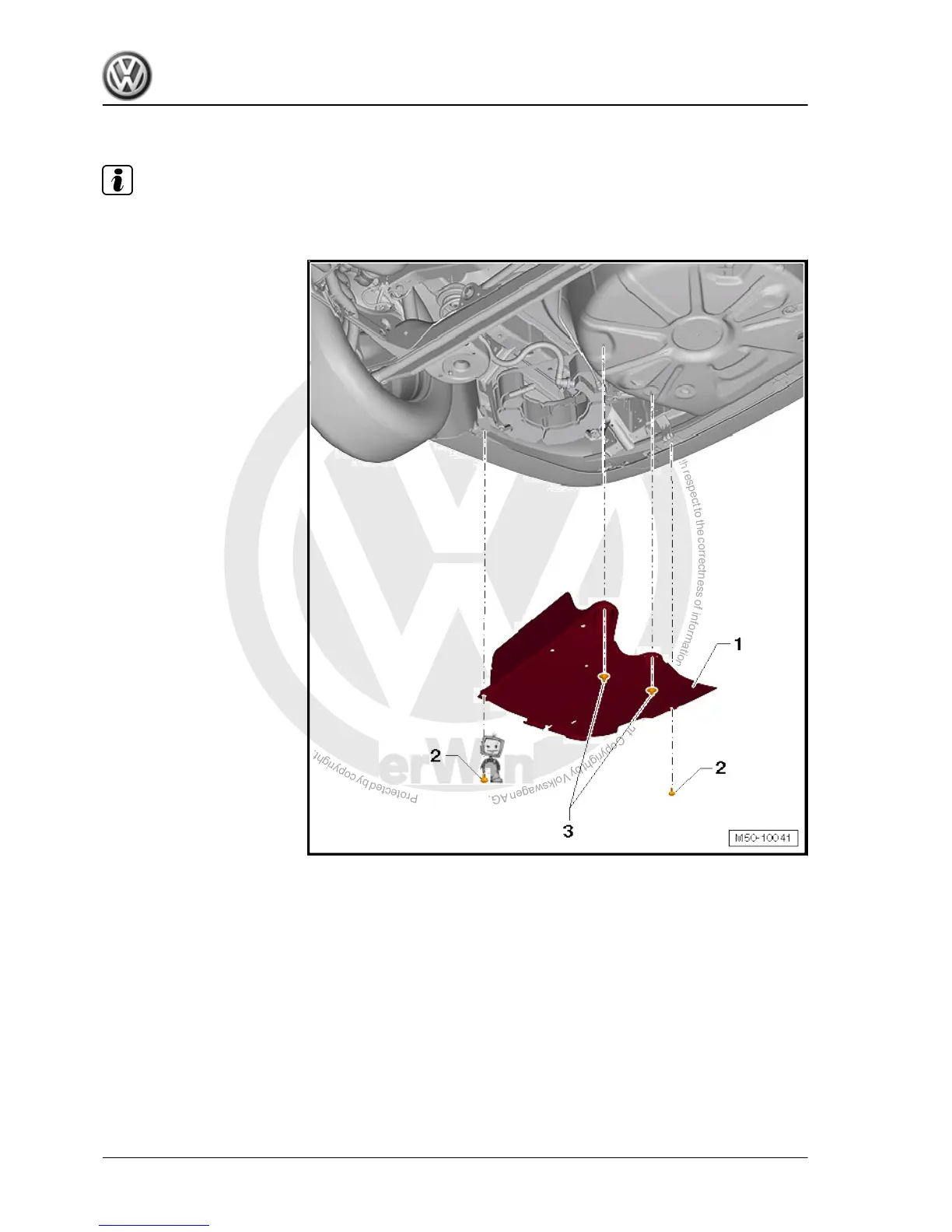

1 - Rear right door underbody
cladding
❑ Different versions, as‐
signment ⇒ Parts cata‐
logue “ETKA”
❑ Removing:
– Remove bolts -2-.
– Unscrew nuts -3- and
remove rear right under‐
body trim.
2 - Bolt
❑ Qty. 2 or 3 (depending
on version of rear right
underbody trim)
❑ Specified torque: 2.7
Nm
3 - Nut
❑ Qty. 2.
❑ Specified torque: 2 Nm
❑ Held in place by retain‐
ing lugs on rear right un‐
derbody trim
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
26 Rep. gr.50 - Body - front
