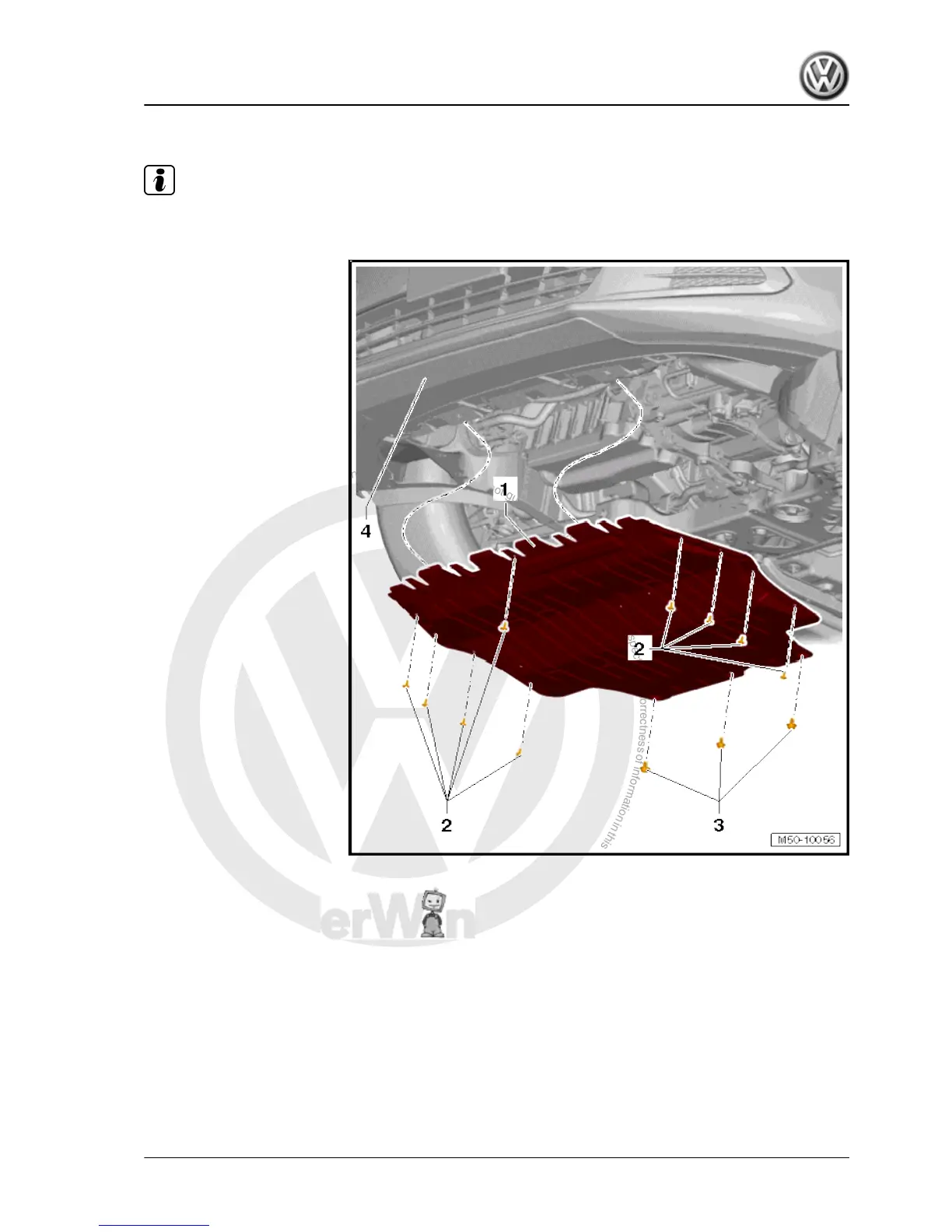

4.3 Assembly overview - noise insulation for diesel engines
Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.
1 - Noise insulation
❑ Removing:
– Remove bolts -2- and
-3-
– Pull noise insulation to‐
wards the rear and out
of front bumper cover
-4-.
2 - Bolt
❑ Qty. 4 per side and one
at front
❑ Specified torque: 2 Nm.
3 - Bolt
❑ Qty. 3.
❑ Specified torque: 6 Nm.
4 - Front bumper cover
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
4. Noise insulation 23
