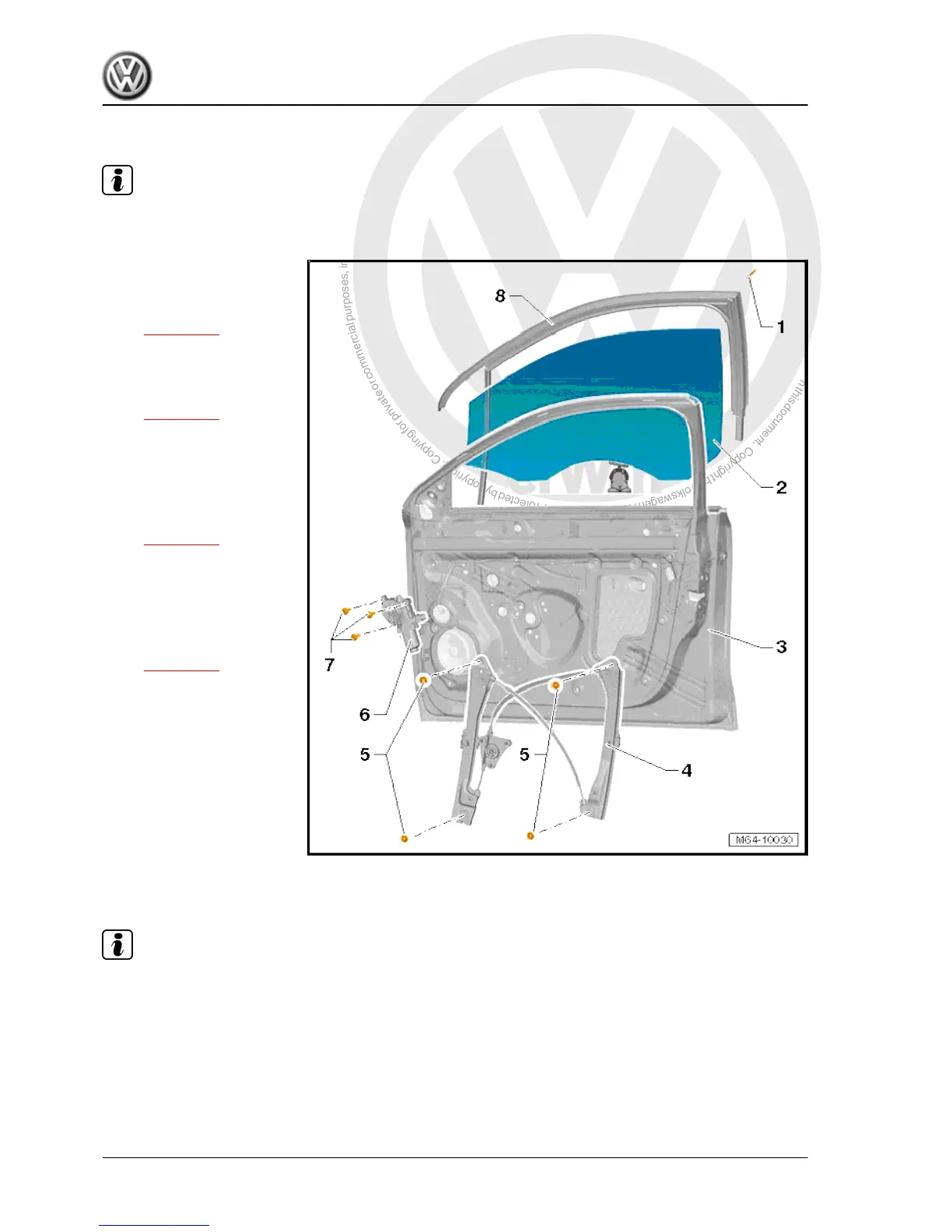

2.2 Assembly overview - front door window
Note
The right side is shown. The left side is similar.
1 - Retaining clip
2 - Door window
❑ Removing and installing
⇒ page 206
3 - Front door
4 - Window regulator
❑ Removing and installing
⇒ page 214
5 - Nut
❑ Qty. 4.
❑ Specified torque: 8 Nm
6 - Window regulator motor
❑ Removing and installing
⇒ page 212
7 - Bolt
❑ Qty. 3.
❑ Specified torque: 4 Nm
8 - Window channel
❑ Removing and installing
⇒ page 217
2.3 Removing and installing door window
Note
Removal and installation are described only for the right door
window. The removal and installation of the left door window is
similar.
Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
General body repairs, exterior - Edition 08.2012
206 Rep. gr.64 - Glazing
