<8. Detailed Data Setting>
8-4
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
8.1.3 Setting Output Smoothing Factor
If the measured value changes suddenly, using this measured value as a control may cause
In such a case, you can set a smoothing time constant of between 0 and 255 seconds to reduce

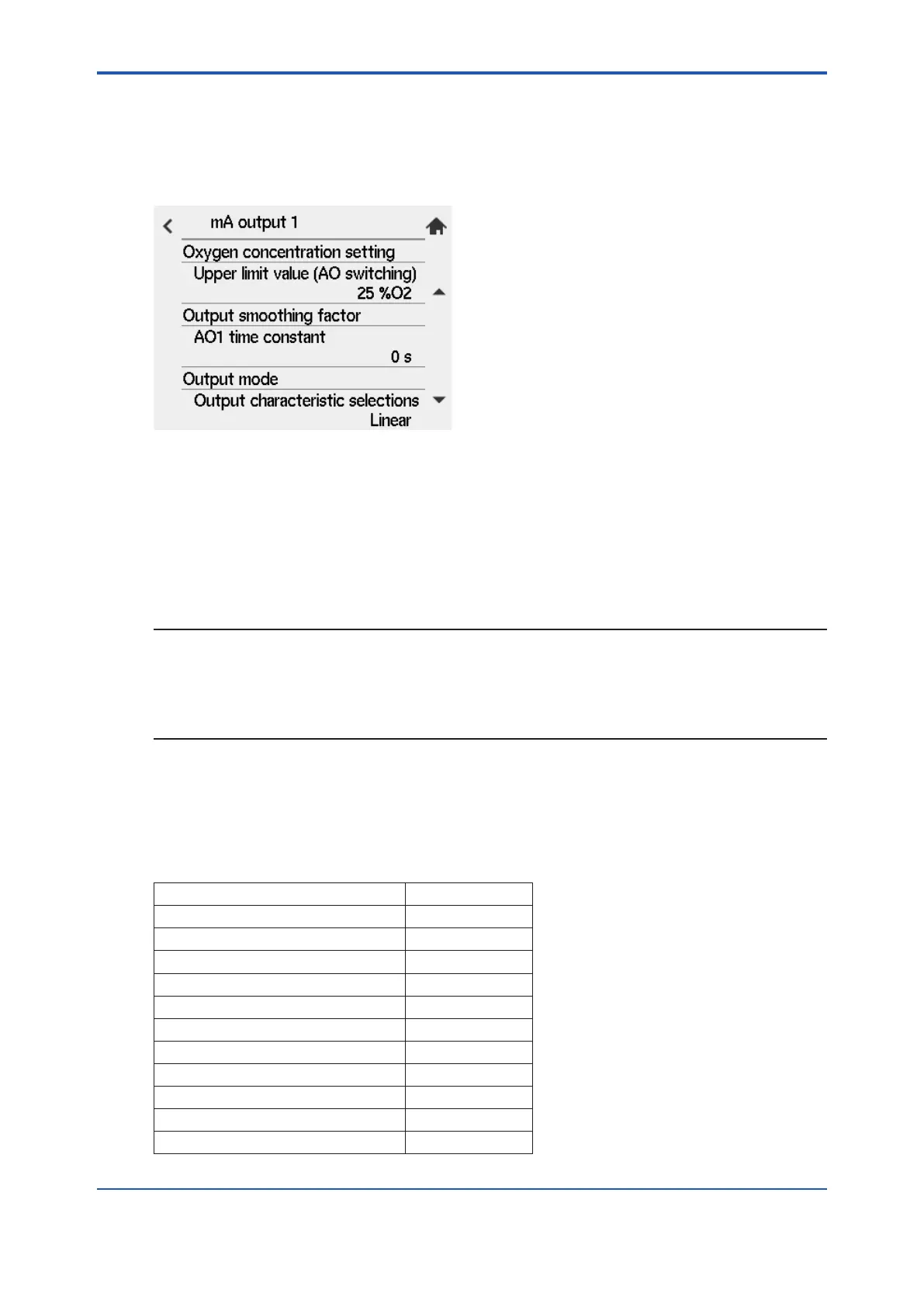

Figure 8.4 Output smoothing factor
8.1.4 Selection of Output Mode
You can select whether the relationship between the sample oxygen concentration and the
analog output signal be linear or logarithmic. Press the [Output characteristic selections] in the
output mode display. A linear/ logarithmic selection display then appears. Select the desired
mode.
NOTE
If you select an output mode of “logarithmic” , regardless of range setting the minimum output
2
2
Display of the minimum oxygen concentration value, the minimum humidity, the minimum mixing
ratio, and the minimum relative humidity remain unchanged.
8.1.5 Default Values
When the analyzer is delivered or reset to defaults, the output current default settings by as
shown in Table 8.4.
Table 8.4 Output Current Default Values
Item Default setting
4mA point oxygen concentration 0%O
2
20mA point oxygen concentration 25%O
2
4mA point humidity 0%H
2
O
20mA point humidity 25%H
2
O
4mA mixing ratio -
20mA mixing ratio -
4mA relative humidity -
20mA relative humidity -
Output smoothing factor 0 (seconds)
Output mode Linear
Upper limit value (AO range switching) 25%O
2
To Next Page
