3.4 Installation of ZA8F Flow Setting Unit
The following should be taken into consideration:
(1) Easy access to the unit for checking and maintenance work.
(2) Near to the detector or the converter
(3) No corrosive gas.
(4) An ambient temperature of not more than 55°C and little changes of temperature.
(5) No vibration.
(6) Little exposure to rays of the sun or rain.
n Mounting of ZA8F Flow Setting Unit
<Pipe Mounting>
F3.12E.ai

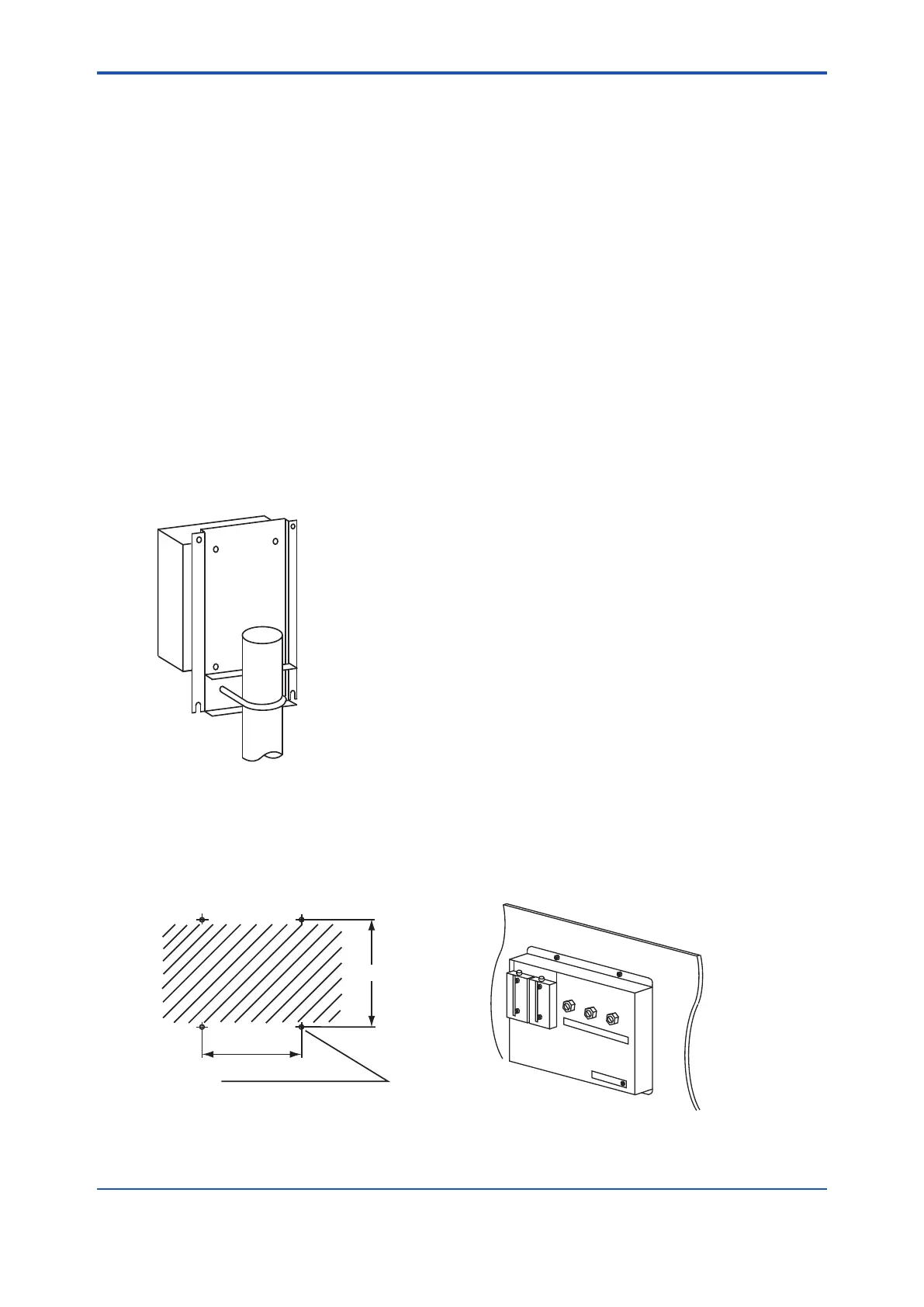

Figure 3.14 Pipe Mounting
<Wall Mounting>
(1) Make a hole in the wall as illustrated in Figure 3.15.
223
140
F3-13E.ai
4 - Φ6.5 hole, or M6 screw
Unit : mm
F3-14E.ai
Figure 3.15 Mounting holes Figure 3.16 Wall mounting
